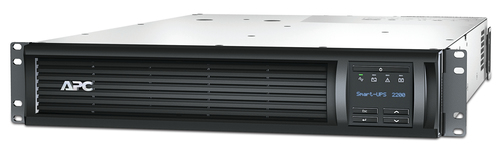

APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect

APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect

Model Smart-UPS 2200VA LCD RM 2U 230V with SmartConnectPart no. SMT2200RMI2UCEAN 731304337324

61 specifications
  • Noise55 dB
  • TypeRackmount
  • Weight42.3 kg
  • ColourBlack, Metallic
  • UPS topologyLine-Interactive
  • AC outlet typesC13 coupler, C19 coupler
See all specifications

Overview

Noise
55 dB
Type
Rackmount
Weight
42.3 kg
Colour
Black, Metallic
UPS topology
Line-Interactive
AC outlet types
C13 coupler, C19 coupler
Brand
APC
Model
Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect
Part number
SMT2200RMI2UC
EAN / UPC
731304337324, 3523210099178, 7313043373240
Also known as
APC Smart-UPS SMT2200RMI2UC - 8x C13, 1x C19, USB, Rackmount 2U, SmartConnect, 2200VA

Specifications

61 specifications in 11 groups

Features

UPS topologyLine-Interactive
Output power capacity2.2 kVA
Output power1980 W
WaveformSine
Input operation voltage (min)151 V
Input operation voltage (max)302 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating375 J
Response time6 ms
Output voltage Total Harmonic Distortion (THD)5%
Noise level55 dB
Power protection featuresOver voltage
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Low battery alarm

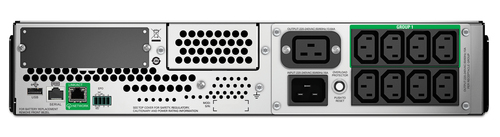

Ports & interfaces

AC outlet typesC13 coupler, C19 coupler
AC outlets quantity9 AC outlet(s)
Number of output IEC jumpers3
USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-A
Serial interfaceYes
Serial interface typeRJ-45
Ethernet LAN (RJ-45) ports1
SmartSlotYes
SmartConnect portYes

Battery

Battery technologySealed Lead Acid (VRLA)
Number of batteries supported1
Battery life (max)5 year(s)
Battery recharge time3 h
Replacement battery cartridgeRBC43

Design

Form factorRackmount
Product colourBlack, Metallic
Rack capacity2U
Cable length2 m
Display typeLCD

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Packaging content

Rack mount kitYes
Cables includedRS-232, USB cable
Management card includedNo

Certificates

Compliance certificatesRoHS
CertificationCE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE

Sustainability

Sustainability certificatesGreen Premium

Weight & dimensions

Width432 mm
Depth683 mm
Height86 mm
Weight42.3 kg

Packaging data

Software CDYes
Package width600 mm
Package depth980 mm
Package height254 mm
Package weight49.7 kg

Logistics data

Products per pallet8 pc(s)
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)3416.11
