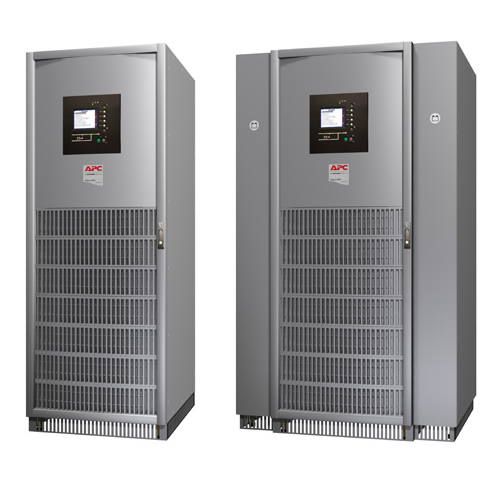

APC MGE Galaxy 5500

APC MGE Galaxy 5500

Model MGE Galaxy 5500Part no. G55TUPM100HMSEAN 731304299707

48 specifications
  • Noise65 dB
  • TypeTower
  • Weight520 kg
  • ColourBlack, Grey
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesTerminal
See all specifications

Overview

Noise
65 dB
Type
Tower
Weight
520 kg
Colour
Black, Grey
UPS topology
Double-conversion (Online)
AC outlet types
Terminal
Brand
APC
Model
MGE Galaxy 5500
Part numbers
G55TUPM100HMS, G55TUPM100HX, G55TUPM100HXS, G55TUPM120HXS, G55TUPM30HMS, G55TUPM30HXS +9 more
EAN / UPC
731304299707, 731304295525, 731304299868, 731304308287 +2 more
Also known as
APC MGE Galaxy 5500 uninterruptible power supply (UPS) Double-conversion (Online) 120 kVA 108000 W 0 AC outlet(s)

Specifications

48 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity120 kVA
Output power108000 W
WaveformSine
Input operation voltage (min)250 V
Input operation voltage (max)470 V
Input frequency45/65 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Maximum current173 A
Number of input phases3
Number of output phases3
Efficiency93.4%
Crest factor3:1
Output voltage Total Harmonic Distortion (THD)1%
Input current Total Harmonic Distortion (THD)3%
Noise level65 dB
Power protection featuresOverload

Ports & interfaces

AC outlet typesTerminal
Power plugTerminal
AC outlets quantity0 AC outlet(s)

Battery

Battery voltage432 V
Battery recharge time10 h

Design

Form factorTower
Product colourBlack, Grey
Display typeLCD
LED indicatorsUSB
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 999 m
Non-operating altitude0 - 120000 m

Certificates

CertificationCE, EN/IEC 62040-3, IEC 62040-1-2, IEC 62040-2, ISO 9001, TUV, VDE

Weight & dimensions

Width712 mm
Depth850 mm
Height1900 mm
Weight520 kg

Packaging data

Package width980 mm
Package depth960 mm
Package height2030 mm
Package weight540 kg

Other features

Output connectionsHardWire 4-wire (3PH + G)
Input connection typeHardWire 4-wire (3PH + G), HardWire 4-wire (3PH + N)
Nominal input voltage400 V
Nominal output voltage400 V
Communication options, cardsSmartSlot
