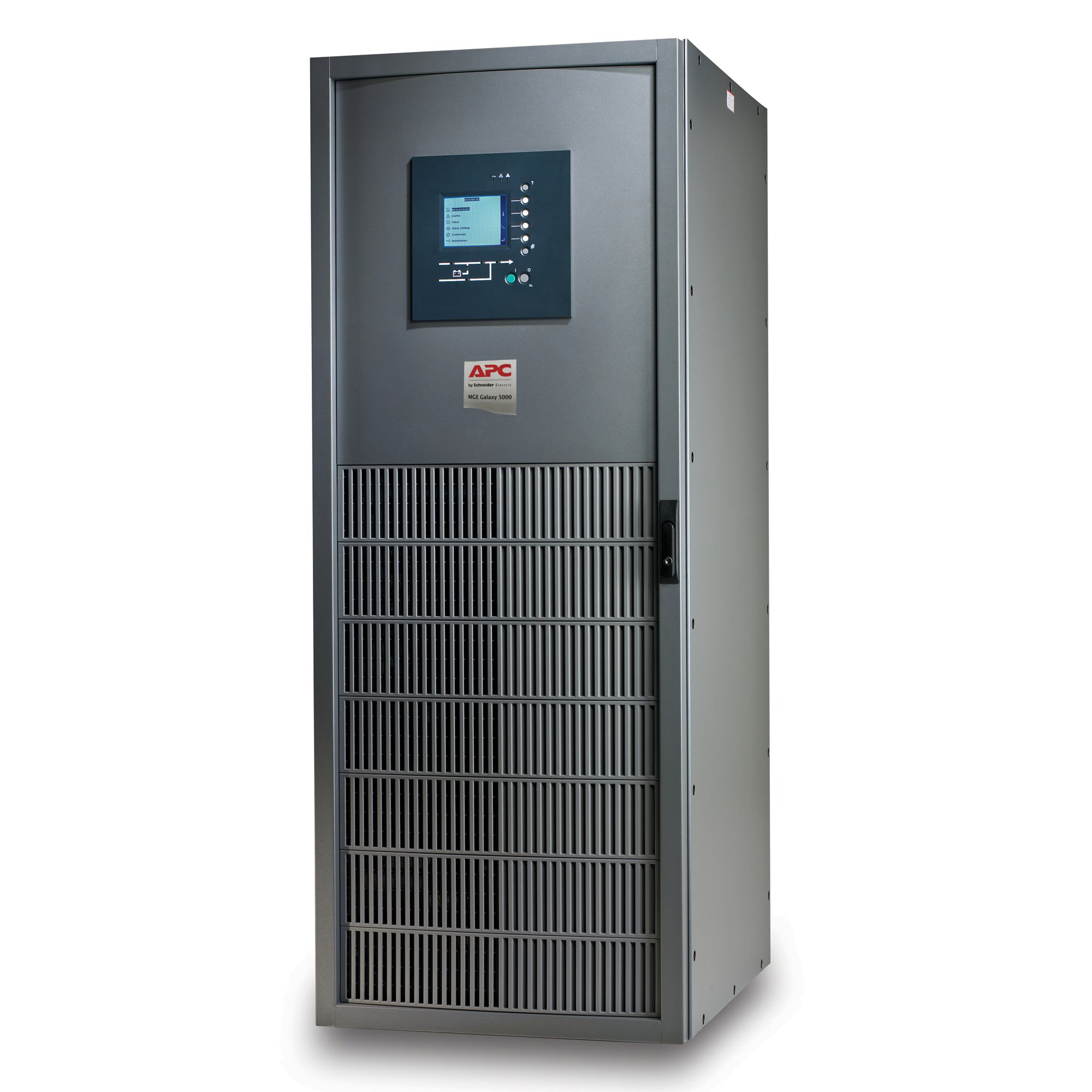

APC MGE Galaxy 5000 40 kVA

APC MGE Galaxy 5000 40 kVA

Model MGE Galaxy 5000 40 kVAPart no. G5TUPS40

40 specifications
  • ConnectivitySmartSlot
  • Noise66 dB
  • TypeTower
  • Weight400 kg
  • ColourCharcoal
  • Output power capacity40 kVA
See all specifications

Overview

Connectivity
SmartSlot
Noise
66 dB
Type
Tower
Weight
400 kg
Colour
Charcoal
Output power capacity
40 kVA
Brand
APC
Model
MGE Galaxy 5000 40 kVA
Part number
G5TUPS40
Also known as
APC MGE Galaxy 5000 40 kVA uninterruptible power supply (UPS) 36000 W 2 AC outlet(s)

Specifications

40 specifications in 9 groups

Features

Output power capacity40 kVA
Output power36000 W
Input operation voltage (min)480 V
Input operation voltage (max)538 V
Input frequency50/60 Hz
Maximum current77 A
Efficiency91.1%
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)2.5%
Input current Total Harmonic Distortion (THD)5%
Noise level66 dB
Surge protectionYes
Power protection featuresShort circuit

Ports & interfaces

AC outlets quantity2 AC outlet(s)

Design

Form factorTower
Product colourCharcoal
Display typeLCD

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 999.9 m
Non-operating altitude0 - 12000 m

Safety regulation & standards

SafetycUL, UL

Certificates

CertificationCE, EN/IEC 62040-1-1, EN/IEC 62040-3, IEC 60950, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-5, IEC 62040-1-2, IEC 62040-2, ISO 9001, TUV, VDE

Weight & dimensions

Width712 mm
Depth848 mm
Height1900 mm
Weight400 kg

Packaging data

Package weight420 kg

Other features

InterfaceSmartSlot
Input connection type3PH + G
Dimensions (WxDxH)712 x 848 x 1900 mm
Nominal input voltage400 V
Nominal output voltage400 V
Operating temperature (T-T)32 - 104 °F
Output voltage note380, 400, 415
Overload protectionYes
Package dimensions (WxDxH)980 x 960 x 2030 mm
