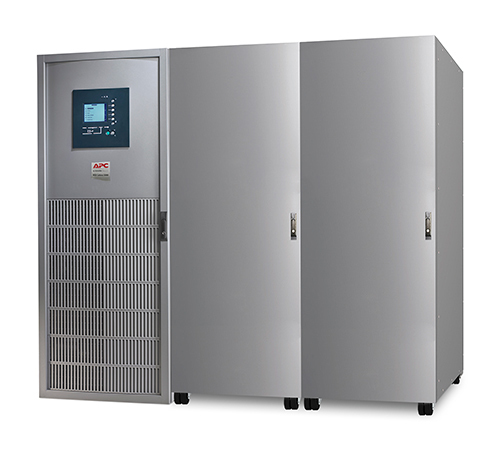

APC MGE Galaxy 5000

APC MGE Galaxy 5000

Model MGE Galaxy 5000Part no. SUG580A90UL

44 specifications
  • Noise66 dB
  • TypeTower
  • Weight1872.7 kg
  • ColourGrey
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesTerminal
See all specifications

Overview

Noise
66 dB
Type
Tower
Weight
1872.7 kg
Colour
Grey
UPS topology
Double-conversion (Online)
AC outlet types
Terminal
Brand
APC
Model
MGE Galaxy 5000
Part numbers
SUG580A90UL, SUG540A90UL, SUG540S90UL, SUG550A90UL, SUG550S90UL, SUG5100A90UL +2 more
Also known as
APC MGE Galaxy 5000 uninterruptible power supply (UPS) Double-conversion (Online) 40 kVA 36000 W 0 AC outlet(s)

Specifications

44 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity40 kVA
Output power36000 W
WaveformSine
Input operation voltage (min)408 V
Input operation voltage (max)600 V
Input frequency60 Hz
Output operation voltage (min)480 V
Output operation voltage (max)600 V
Maximum current77 A
Number of input phases3
Number of output phases3
Efficiency93.2%
Crest factor3:1
Emergency Power Off (EPO)O
Output voltage Total Harmonic Distortion (THD)1%
Input current Total Harmonic Distortion (THD)5%
Noise level66 dB
Power protection featuresOverload

Ports & interfaces

AC outlet typesTerminal
Power plugTerminal
AC outlets quantity0 AC outlet(s)

Battery

Battery technologySealed Lead Acid (VRLA)
Number of batteries supported2

Design

Form factorTower
Product colourGrey
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 45 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 90%
Operating altitude0 - 999.9 m
Non-operating altitude0 - 9000 m

Certificates

CertificationUL 1778, UL 924

Weight & dimensions

Width2395 mm
Depth813 mm
Height1905 mm
Weight1872.7 kg

Packaging data

Package width2489 mm
Package depth838 mm
Package height1930 mm
Package weight1904.5 kg

Other features

Battery typeRBC55
