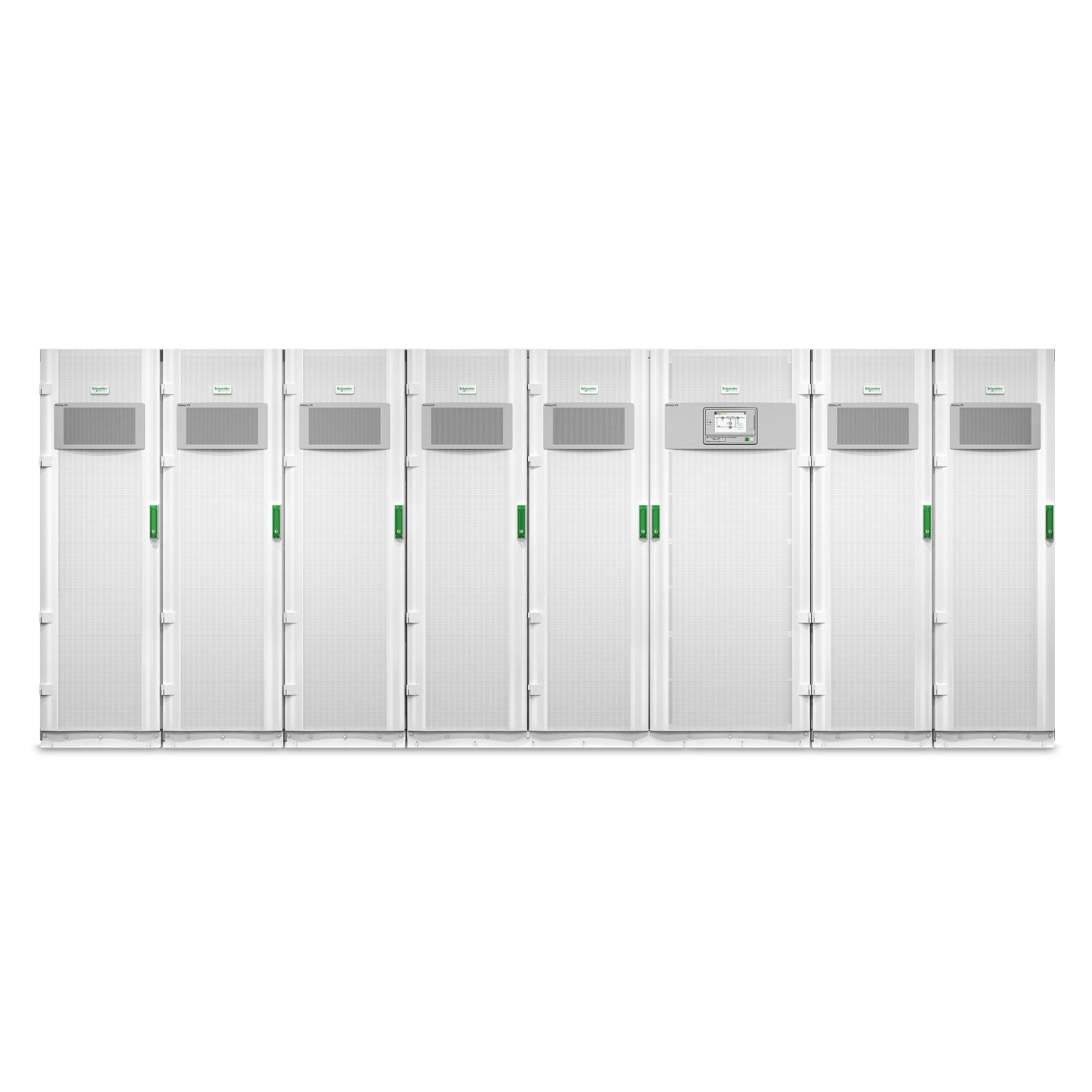

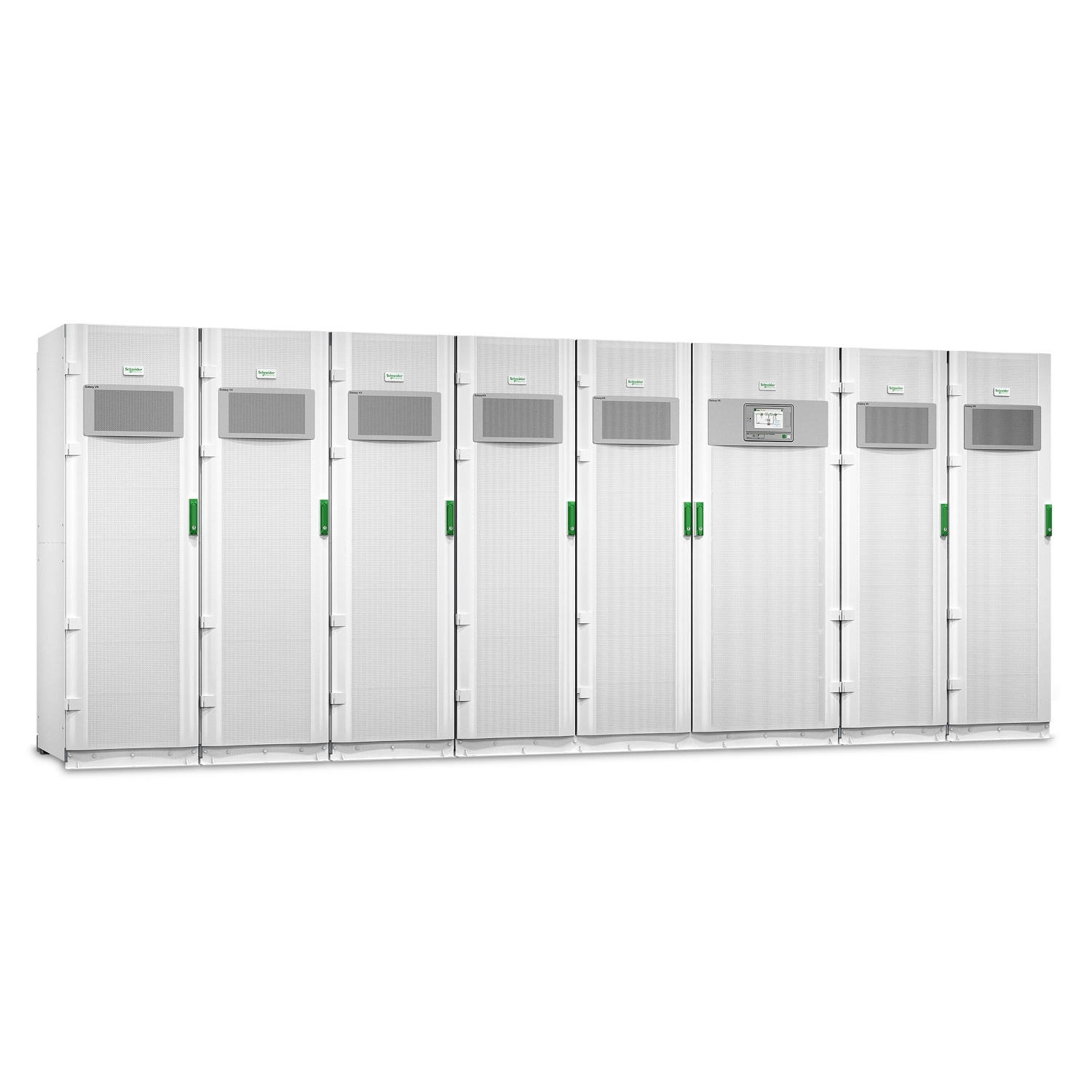

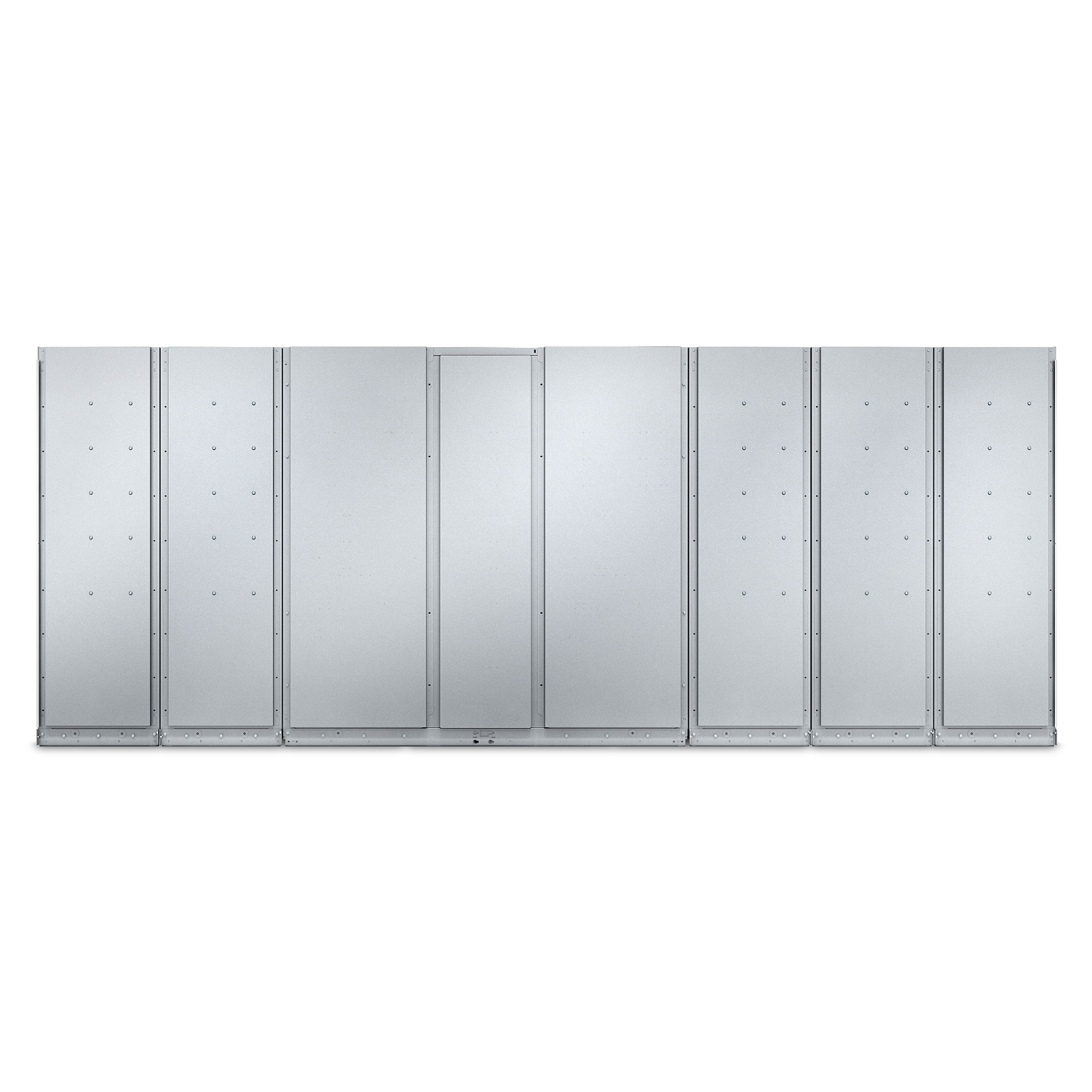

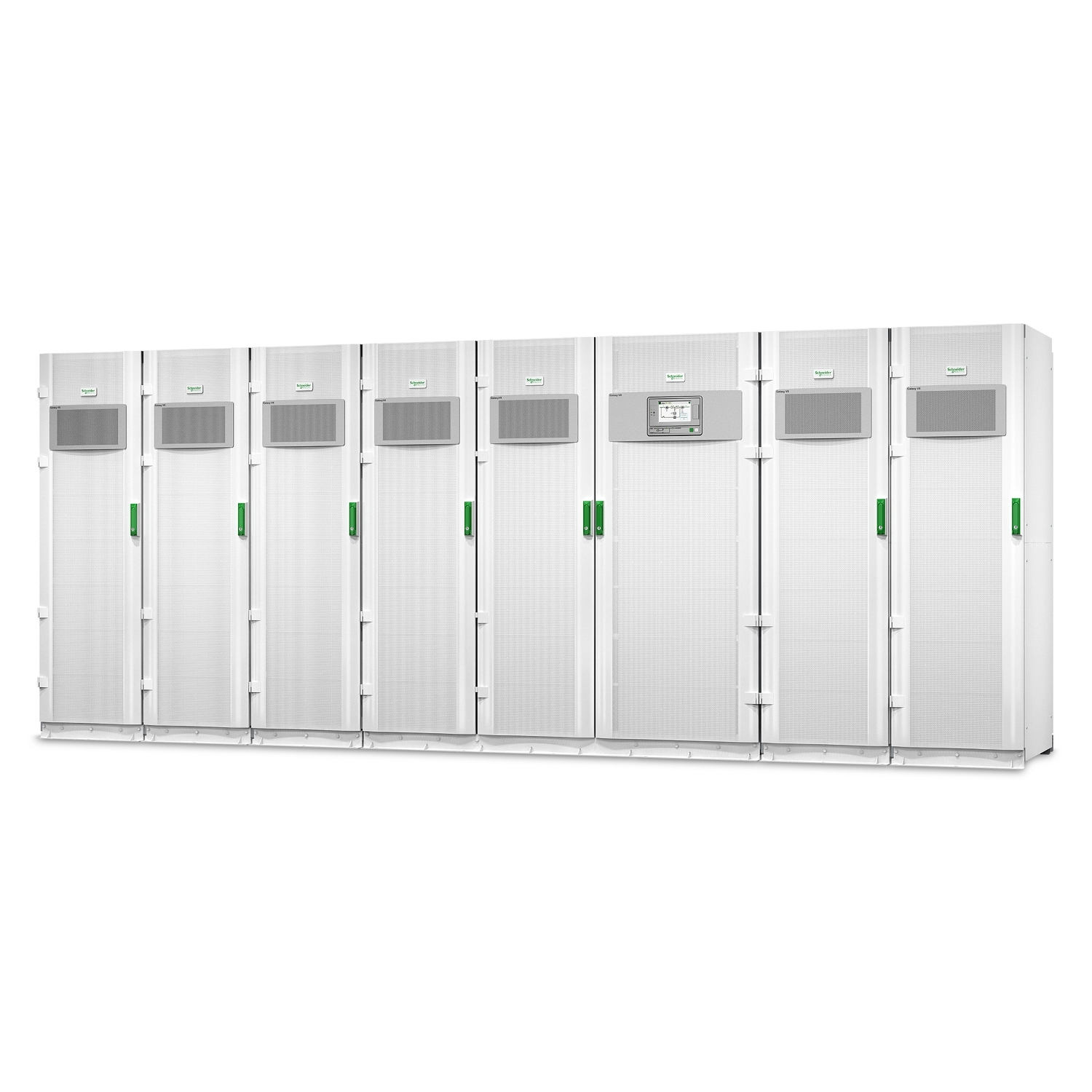

APC Galaxy VX 1250kVA

APC Galaxy VX 1250kVA

400V, Start up 5x8

Model GVX1250K1250HS

45 specifications
  • Noise68 dB
  • TypeLarge tower
  • Weight3450 kg
  • ColourWhite
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHard Wire 4-wire (3PH + G)
See all specifications

Overview

Noise
68 dB
Type
Large tower
Weight
3450 kg
Colour
White
UPS topology
Double-conversion (Online)
AC outlet types
Hard Wire 4-wire (3PH + G)
Brand
APC
Model
GVX1250K1250HS
Part number
GVX1250K1250HS
Also known as
APC Galaxy VX 1250kVA, 400V, Start up 5x8

Specifications

45 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity1250 kVA
Output power1250000 W
WaveformSine
Input operation voltage (min)380 V
Input operation voltage (max)440 V
Input frequency40/70 Hz
Output operation voltage (min)380 V
Output operation voltage (max)440 V
Output frequency50/60 Hz
Maximum current2127 A
Heat dissipation217914 BTU/h
Number of input phases3
Number of output phases3
Input power factor1
Crest factor3:1
ECO modeYes
Output voltage Total Harmonic Distortion (THD)3%
Input current Total Harmonic Distortion (THD)3%
Noise level68 dB
Power protection featuresOverload
Audible alarm(s)Yes

Ports & interfaces

AC outlet typesHard Wire 4-wire (3PH + G)
SmartSlotYes

Battery

Battery voltage480 V

Design

Form factorLarge tower
Product colourWhite
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 1000 m
Non-operating altitude0 - 15000 m

Certificates

Compliance certificatesRoHS
CertificationC-tick, CE, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IBC 2012, IEC 62040-4, ISTA 2B, REACH

Weight & dimensions

Width5000 mm
Depth900 mm
Height1970 mm
Weight3450 kg

Packaging data

Package width5900 mm
Package depth1060 mm
Package height2150 mm
Package weight4433 kg

Logistics data

Warranty period1 year(s)
