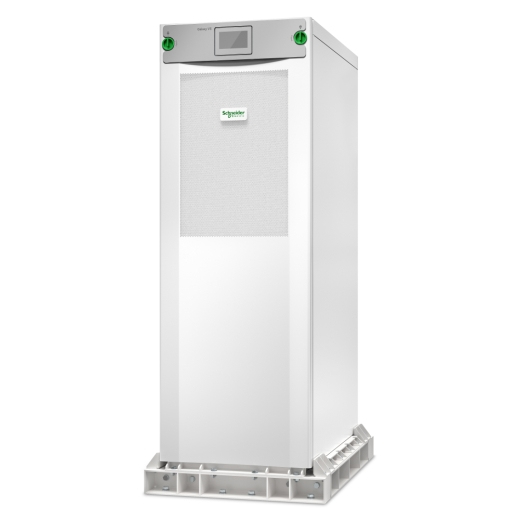

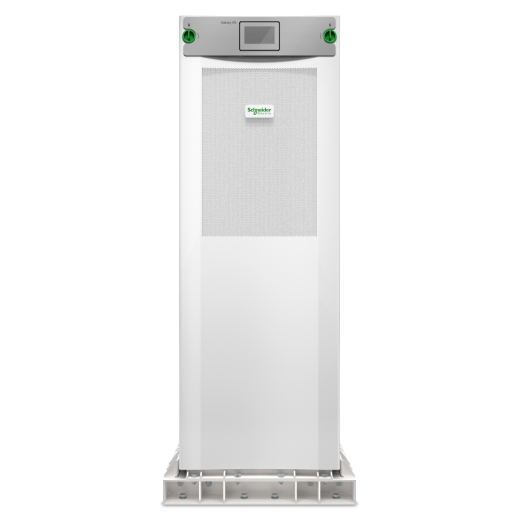

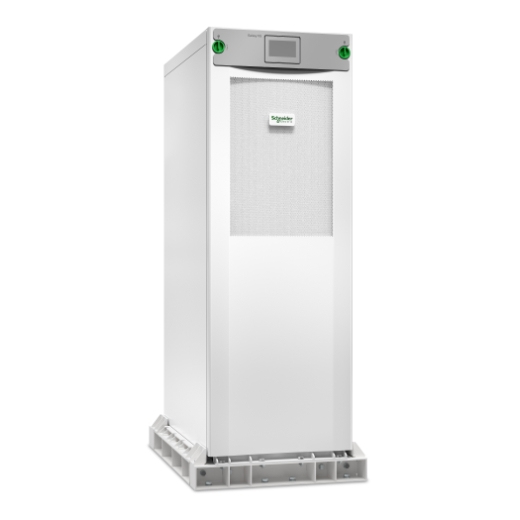

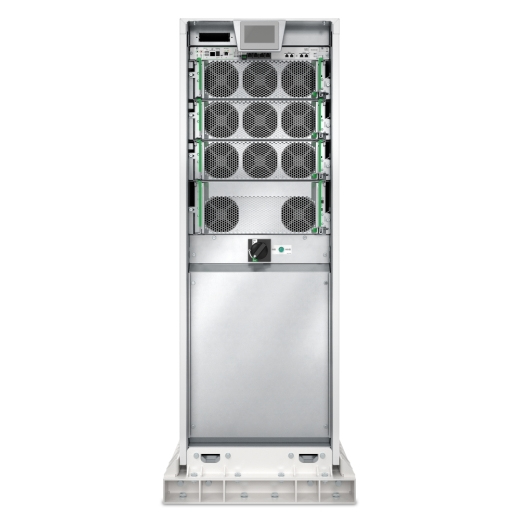

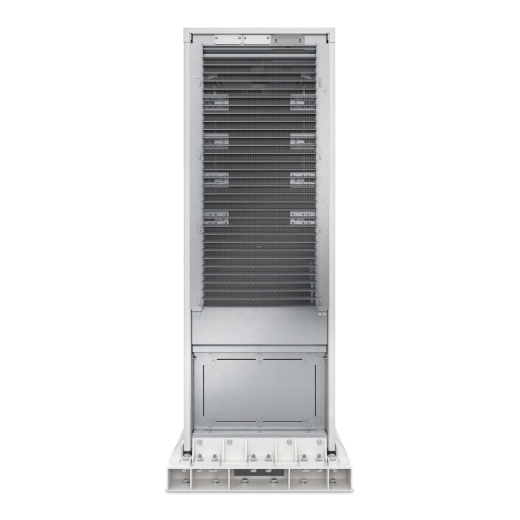

APC Galaxy VS UPS 50kW
APC

Galaxy VS UPS 50kW

400V for external batteries, halogen-free cables, marine certified, Start-up 5x8

Model GVSUPS50KMHSEAN 731304418368

44 specifications
  • Noise68 dB
  • TypeTower
  • Weight206 kg
  • ColourWhite
  • UPS topologyDouble-conversion (Online)
  • Battery technologyLithium-Ion (Li-Ion)
See all specifications

Overview

Noise
68 dB
Type
Tower
Weight
206 kg
Colour
White
UPS topology
Double-conversion (Online)
Battery technology
Lithium-Ion (Li-Ion)
Brand
APC
Model
GVSUPS50KMHS
Part number
GVSUPS50KMHS
EAN / UPC
731304418368
Also known as
APC Galaxy VS UPS 50kW 400V for external batteries, halogen-free cables, marine certified, Start-up 5x8

Specifications

44 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity50 kVA
Output power50000 W
WaveformSine
Input operation voltage (min)340 V
Input operation voltage (max)460 V
Input frequency40/70 Hz
Output operation voltage (min)400 V
Output frequency50/60 Hz
Maximum current90 A
Heat dissipation5804 BTU/h
Number of input phases3
Number of output phases3
Power factor1
Crest factor2.5:1
Output voltage Total Harmonic Distortion (THD)5%
Input current Total Harmonic Distortion (THD)3%
Noise level68 dB
Management protocolsSNMP
Power source typeAC

Battery

Battery technologyLithium-Ion (Li-Ion)

Design

Form factorTower
Product colourWhite
Control typeTouch
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP21

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 55 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)10 - 80%
Operating altitude0 - 1005.84 m

Certificates

Compliance certificatesRoHS
CertificationEN/IEC 62040-1, EN/IEC 62040-2, FCC part 15 class A, IEC 60721-4-2 level 2M2, UL 1778 5th e

Sustainability

Sustainability complianceYes

Weight & dimensions

Width52 mm
Depth847 mm
Height1485 mm
Weight206 kg

Packaging data

Package width990 mm
Package depth640 mm
Package height1680 mm
Package weight250 kg

Logistics data

Warranty period1 year(s)
