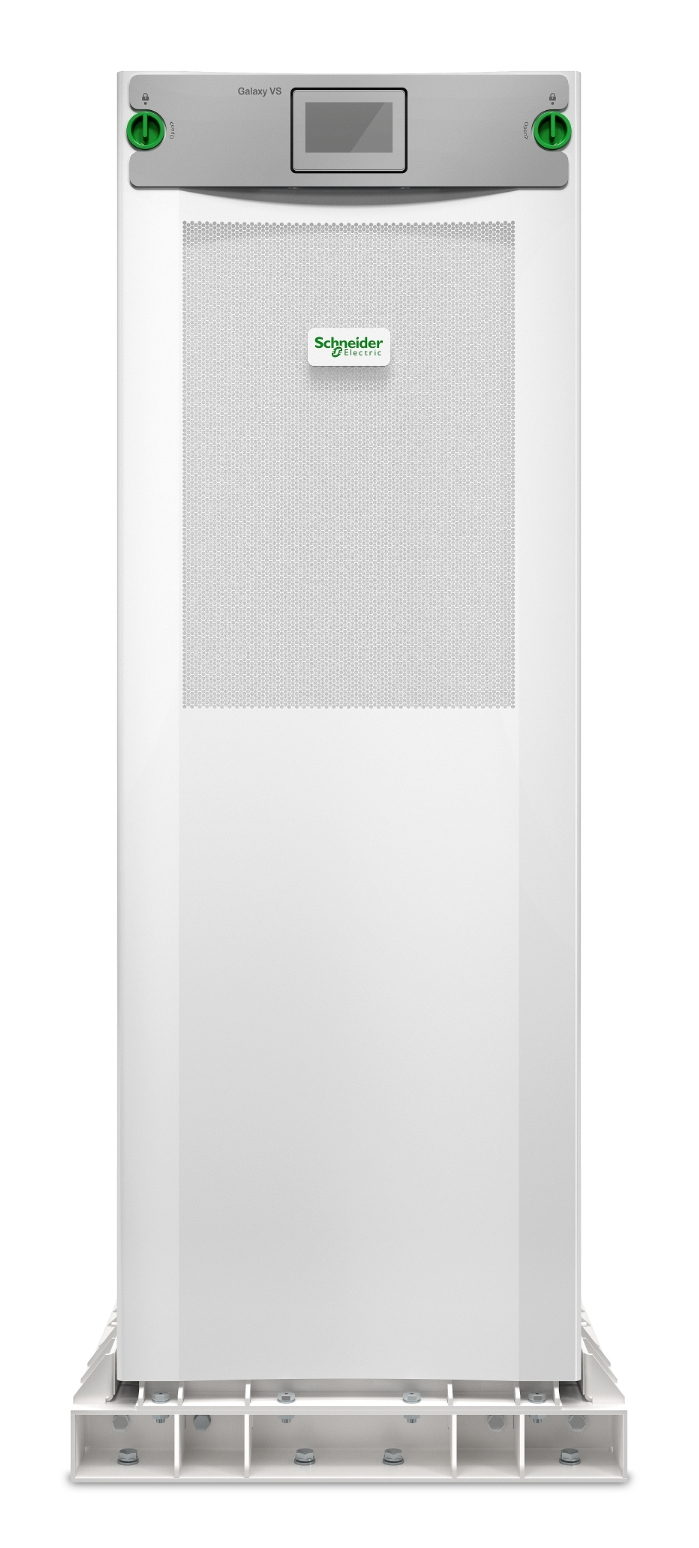

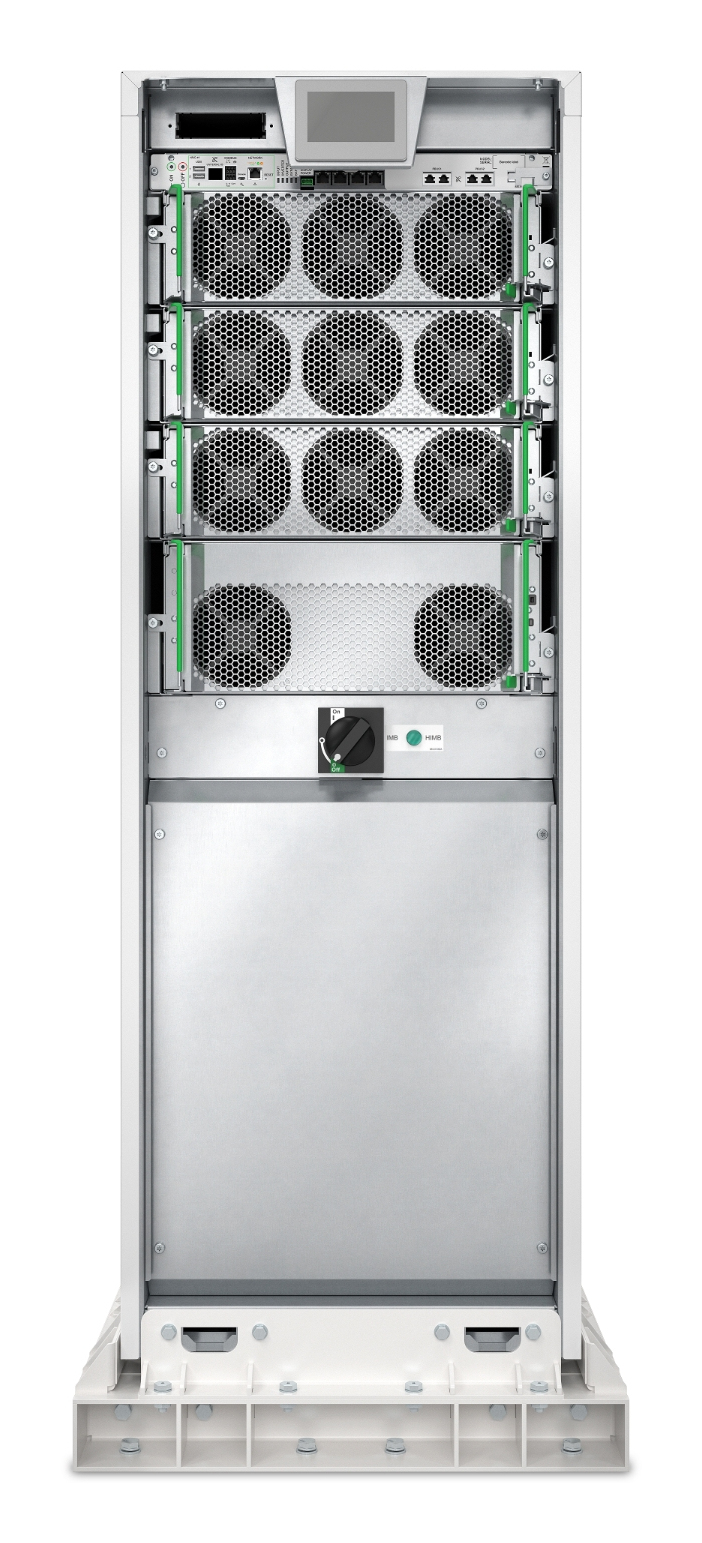

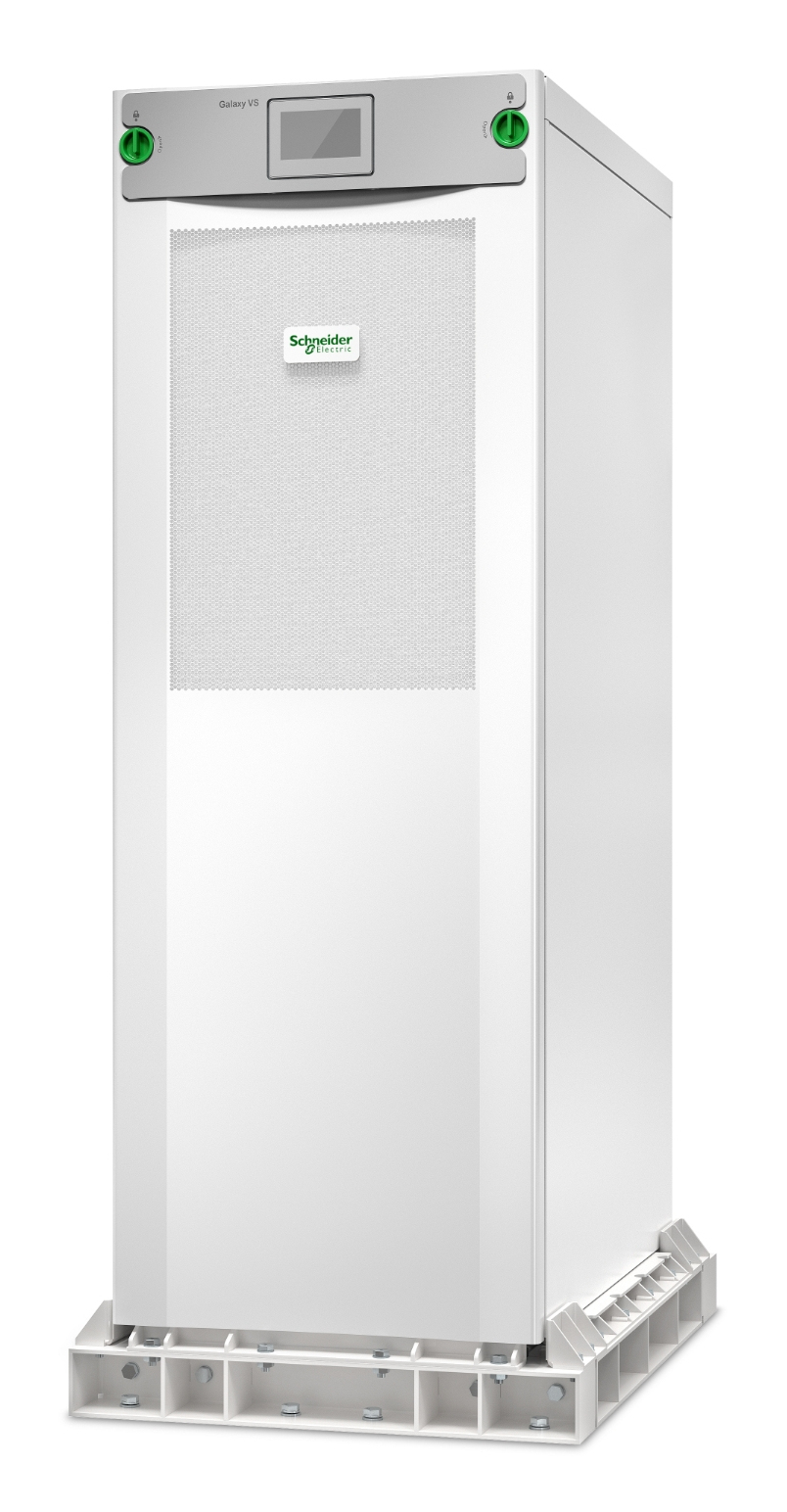

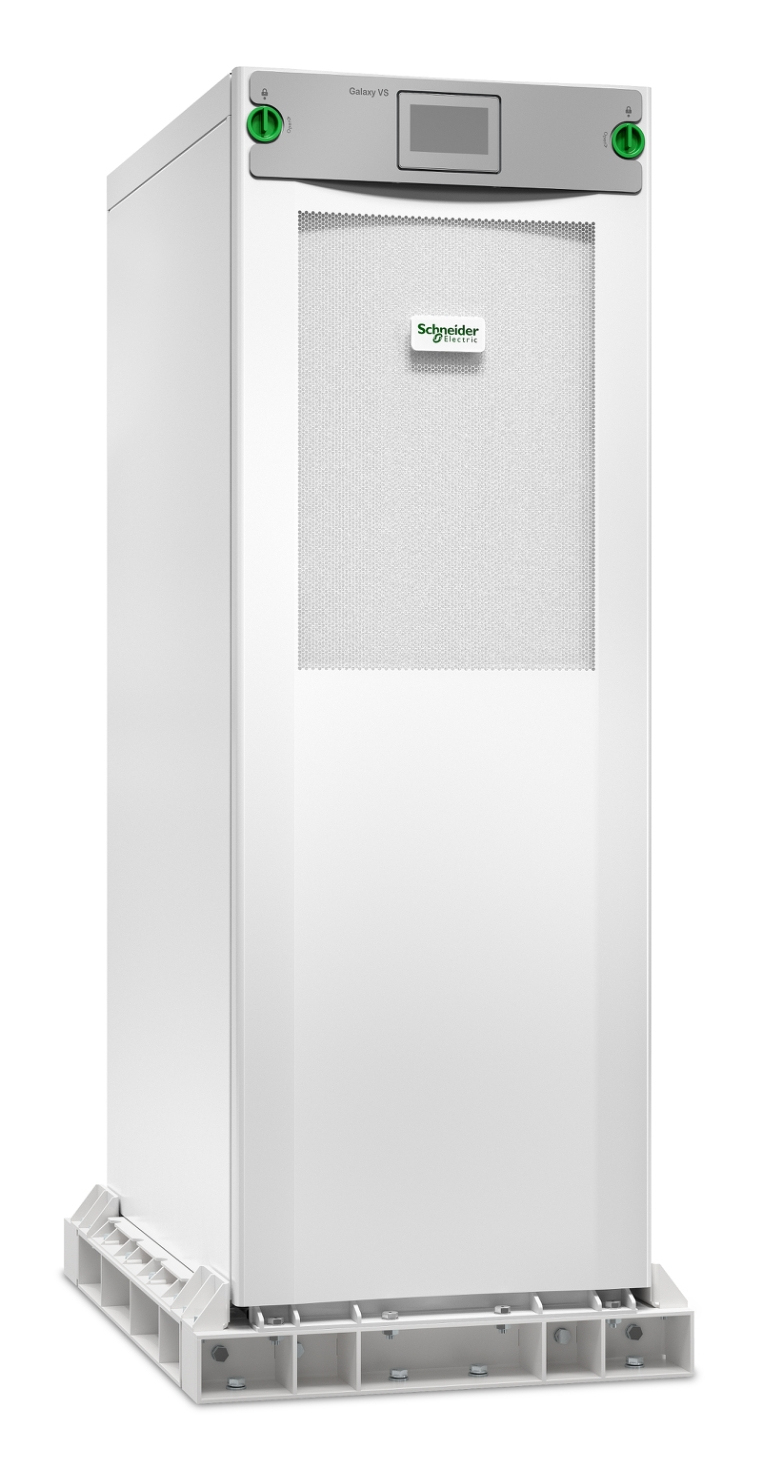

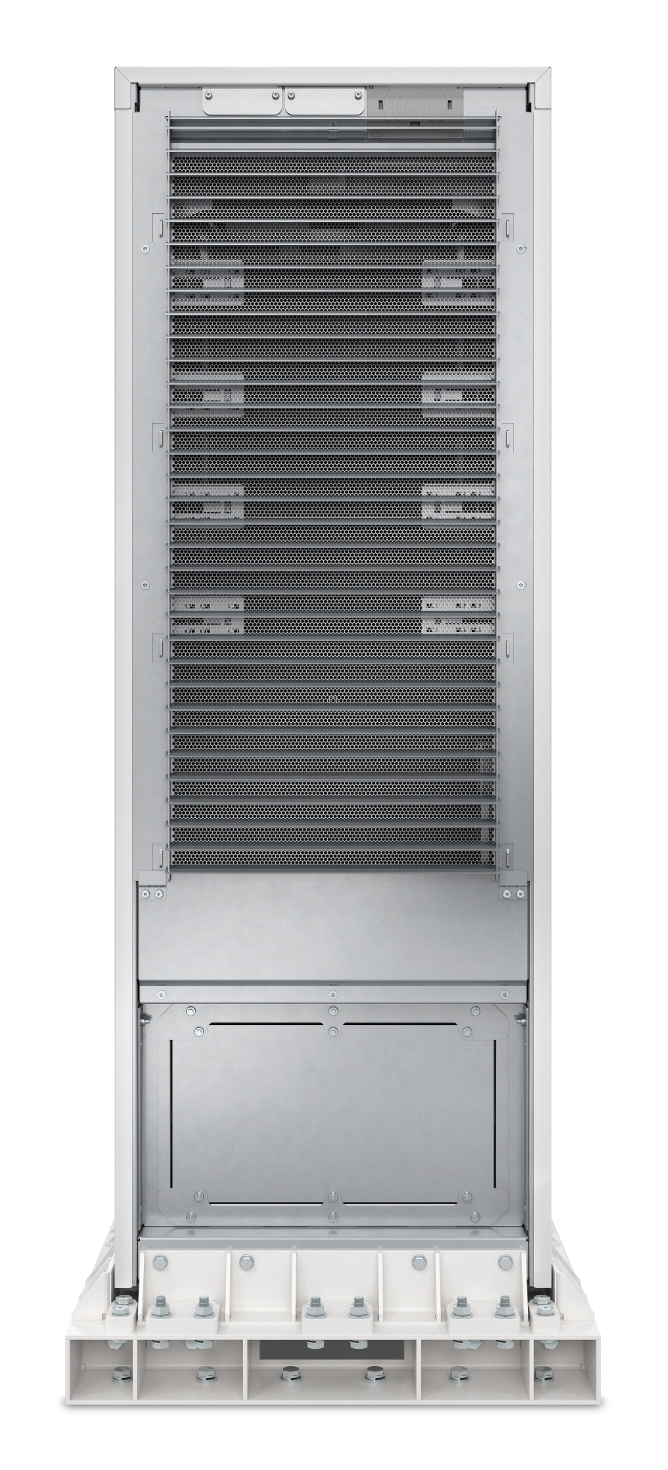

APC GVSUPS100KMHS uninterruptible power supply (UPS) 100 kVA
APC

GVSUPS100KMHS uninterruptible power supply (UPS) 100 kVA

100000 W

Model GVSUPS100KMHSEAN 731304418399

41 specifications
  • Noise68 dB
  • Weight250 kg
  • ColourWhite
  • Output power capacity100 kVA
  • Battery technologySealed Lead Acid (VRLA)
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Noise
68 dB
Weight
250 kg
Colour
White
Output power capacity
100 kVA
Battery technology
Sealed Lead Acid (VRLA)
Operating temperature (T-T)
0 - 40 °C
Brand
APC
Model
GVSUPS100KMHS
Part number
GVSUPS100KMHS
EAN / UPC
731304418399
Also known as
APC GVSUPS100KMHS uninterruptible power supply (UPS) 100 kVA 100000 W

Specifications

41 specifications in 10 groups

Features

Output power capacity100 kVA
Output power100000 W
WaveformSine
Input operation voltage (min)380 V
Input operation voltage (max)415 V
Input frequency40 - 70 Hz
Output operation voltage (min)380 V
Output operation voltage (max)400 V
Output frequency50/60 Hz
Maximum current180 A
Heat dissipation11373 BTU/h
Number of input phases3
Number of output phases3
Power factor0.7
Crest factor2.5:1
Output voltage Total Harmonic Distortion (THD)1%
Input current Total Harmonic Distortion (THD)3%
Noise level68 dB

Battery

Battery technologySealed Lead Acid (VRLA)

Design

Product colourWhite
Control typeTouch
Display typeLCD
International Protection (IP) codeIP21

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 55 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)10 - 80%
Operating altitude0 - 1000 m

Packaging content

ManualYes

Power

Input current (max)36 A

Technical details

Battery includedNo
Minimum order quantity1 pc(s)

Weight & dimensions

Width521 mm
Depth847 mm
Height1485 mm
Weight250 kg

Packaging data

Package width990 mm
Package depth640 mm
Package height168 mm
Package weight290 kg

Logistics data

Warranty period1 year(s)
