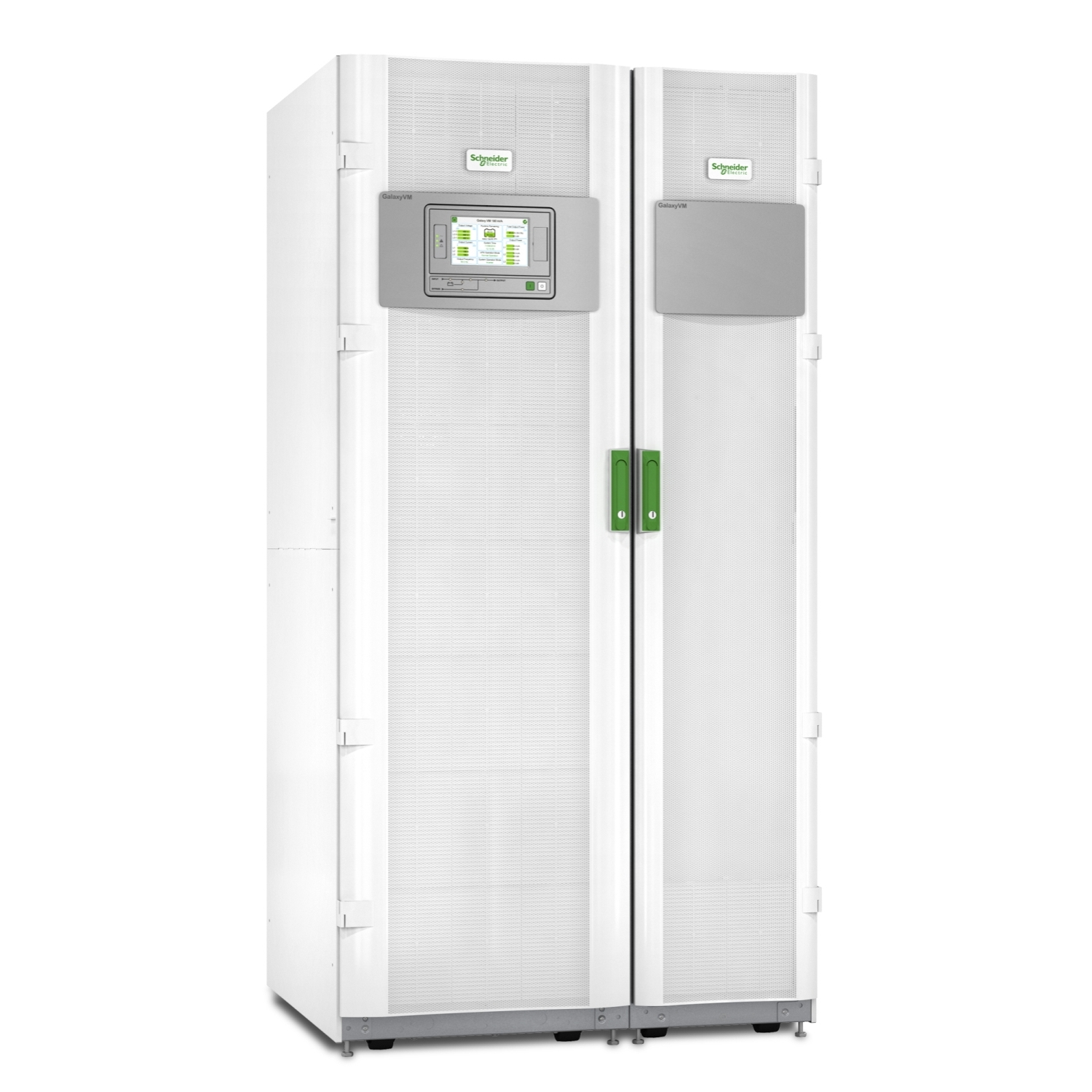

APC Galaxy VM 180 kVA UPS Single 480-480 V,65kAIC, Start up

APC Galaxy VM 180 kVA UPS Single 480-480 V,65kAIC, Start up

5x8

Model GVMSB180KG65SEAN 731304746584

47 specifications
  • Noise65 dB
  • TypeTower
  • Weight679.5 kg
  • ColourWhite
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHard Wire 3-wire (3PH + G)
See all specifications

Overview

Noise
65 dB
Type
Tower
Weight
679.5 kg
Colour
White
UPS topology
Double-conversion (Online)
AC outlet types
Hard Wire 3-wire (3PH + G)
Brand
APC
Model
GVMSB180KG65S
Part number
GVMSB180KG65S
EAN / UPC
731304746584
Also known as
APC Galaxy VM 180 kVA UPS Single 480-480 V,65kAIC, Start up 5x8

Specifications

47 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity180 kVA
Output power162000 W
WaveformSine
Input operation voltage (min)360 V
Input operation voltage (max)576 V
Input frequency40/70 Hz
Output operation voltage (max)480 V
Output frequency50/60 Hz
Maximum current278 A
Number of input phases3
Number of output phases3
Input power factor1
ECO modeYes
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)3%
Input current Total Harmonic Distortion (THD)3%
Noise level65 dB
Power protection featuresOverload
Audible alarm(s)Yes

Ports & interfaces

AC outlet typesHard Wire 3-wire (3PH + G)
Serial interfaceYes
Serial interface typeRS-485
SmartSlotYes

Design

Form factorTower
Product colourWhite
Housing materialSteel
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 55 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 1000 m
Non-operating altitude0 - 14763 m

Packaging content

Quick installation guideYes

Sustainability

Sustainability certificatesENERGY STAR

Certificates

CertificationcUL Listed, EN/IEC 62040-3, ENERGY STAR V2.0 (USA), FCC Part 15 Class A, IBC 2012 and CBC2013 to Sds=2.02g , OSHPD, UL 1778

Weight & dimensions

Width1002 mm
Depth854 mm
Height1970 mm
Weight679.5 kg

Packaging data

Package width1490 mm
Package depth1060 mm
Package height2156 mm
Package weight720.9 kg
