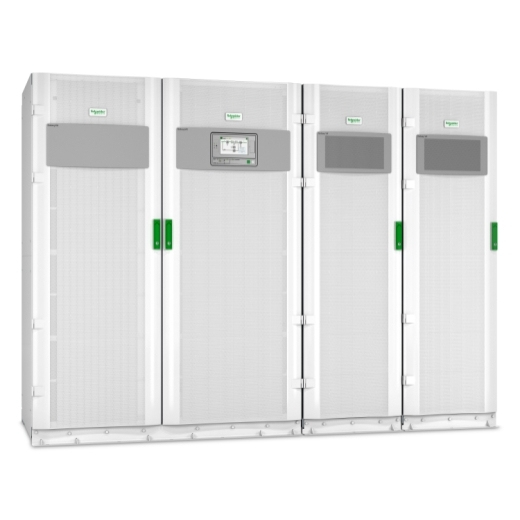

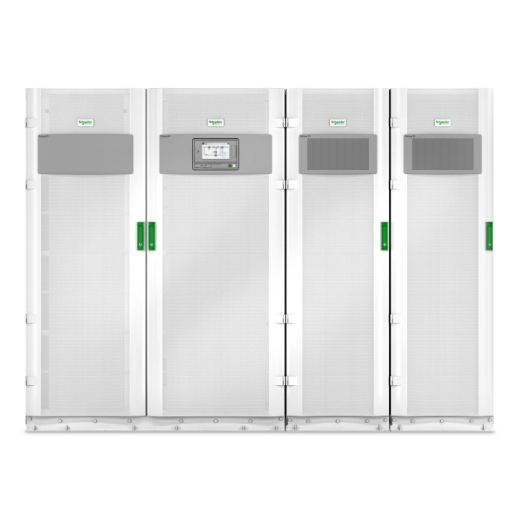

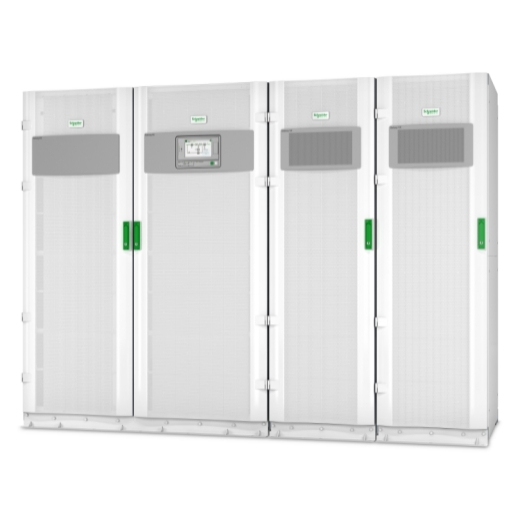

APC Galaxy VX

APC Galaxy VX

Model Galaxy VXPart no. GVX500K500HS

43 specifications
  • Noise69.5 dB
  • TypeLarge tower
  • Weight1880 kg
  • ColourWhite
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHard Wire 4-wire (3PH + N)
See all specifications

Overview

Noise
69.5 dB
Type
Large tower
Weight
1880 kg
Colour
White
UPS topology
Double-conversion (Online)
AC outlet types
Hard Wire 4-wire (3PH + N)
Brand
APC
Model
Galaxy VX
Part number
GVX500K500HS
Also known as
APC Galaxy VX uninterruptible power supply (UPS) Double-conversion (Online) 500 kVA 500000 W

Specifications

43 specifications in 7 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity500 kVA
Output power500000 W
WaveformSine
Input operation voltage (min)380 V
Input operation voltage (max)440 V
Input frequency40/70 Hz
Output operation voltage (min)380 V
Output operation voltage (max)440 V
Output frequency50/60 Hz
Output voltage regulation0.3%
Maximum current851 A
Number of input phases3
Number of output phases3
Power factor0.99
Crest factor3:1
ECO modeYes
Output voltage Total Harmonic Distortion (THD)2%
Input current Total Harmonic Distortion (THD)3%
Noise level69.5 dB
Power protection featuresOverload
Audible alarm(s)Yes

Ports & interfaces

AC outlet typesHard Wire 4-wire (3PH + N)
SmartSlotYes

Design

Form factorLarge tower
Product colourWhite
International Protection (IP) codeIP20
CompatibilitySchneider Electric's lithium ion battery solution

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 1015.9 m
Non-operating altitude0 - 15240 m

Certificates

Compliance certificatesRoHS
CertificationC-Tick, CE, CUL listed, IBC 2012, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, UL 1778 5th

Weight & dimensions

Width2700 mm
Depth900 mm
Height1970 mm
Weight1880 kg

Packaging data

Package width3170 mm
Package depth1060 mm
Package height2150 mm
Package weight2592 kg
