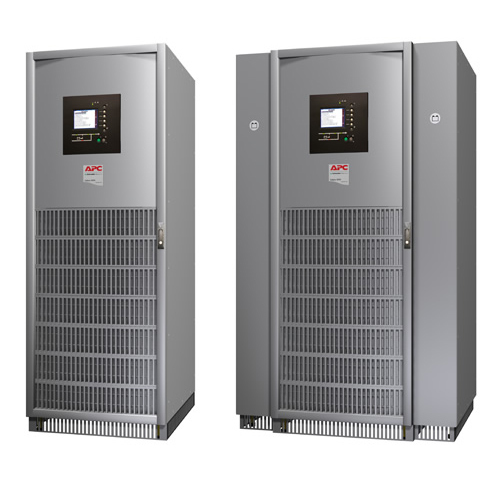

APC Galaxy 5000

APC Galaxy 5000

Model Galaxy 5000Part no. G5USV040P005LAIO

36 specifications
  • Noise66 dB
  • Weight400 kg
  • ColourSilver
  • Output power capacity40 kVA
  • Typical backup time at full load1 min
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Noise
66 dB
Weight
400 kg
Colour
Silver
Output power capacity
40 kVA
Typical backup time at full load
1 min
Operating temperature (T-T)
0 - 40 °C
Brand
APC
Model
Galaxy 5000
Part numbers
G5USV040P005LAIO, G5USV040P005SAIO
Also known as
APC Galaxy 5000 uninterruptible power supply (UPS) 40 kVA 36000 W

Specifications

36 specifications in 7 groups

Features

Output power capacity40 kVA
Output power36000 W
Input operation voltage (min)400 V
Input operation voltage (max)600 V
Input frequency45/65 Hz
Output operation voltage (min)400 V
Output operation voltage (max)600 V
Output voltage regulation2%
Automatic Voltage Regulation (AVR)Yes
Maximum current87 A
Efficiency85%
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)2.5%
Noise level66 dB
Surge protectionYes
Power protection featuresOver current, Over power, Over voltage, Overcharge, Overload, Short circuit, Under current, Under power, Under voltage
Audible alarm(s)Yes
Auto-restartYes

Battery

Typical backup time at full load1 min
Typical backup time at half load10 min
Cold startYes
Off-mode chargingYes

Design

Product colourSilver
Cooling typeActive
Built-in fanYes
Display typeLCD
LED indicatorsCharging, Power, Stand-by

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 45 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width712 mm
Depth848 mm
Height1900 mm
Weight400 kg

Packaging data

Package weight420 kg

Other features

Package dimensions (WxDxH)980 x 960 x 2030 mm
