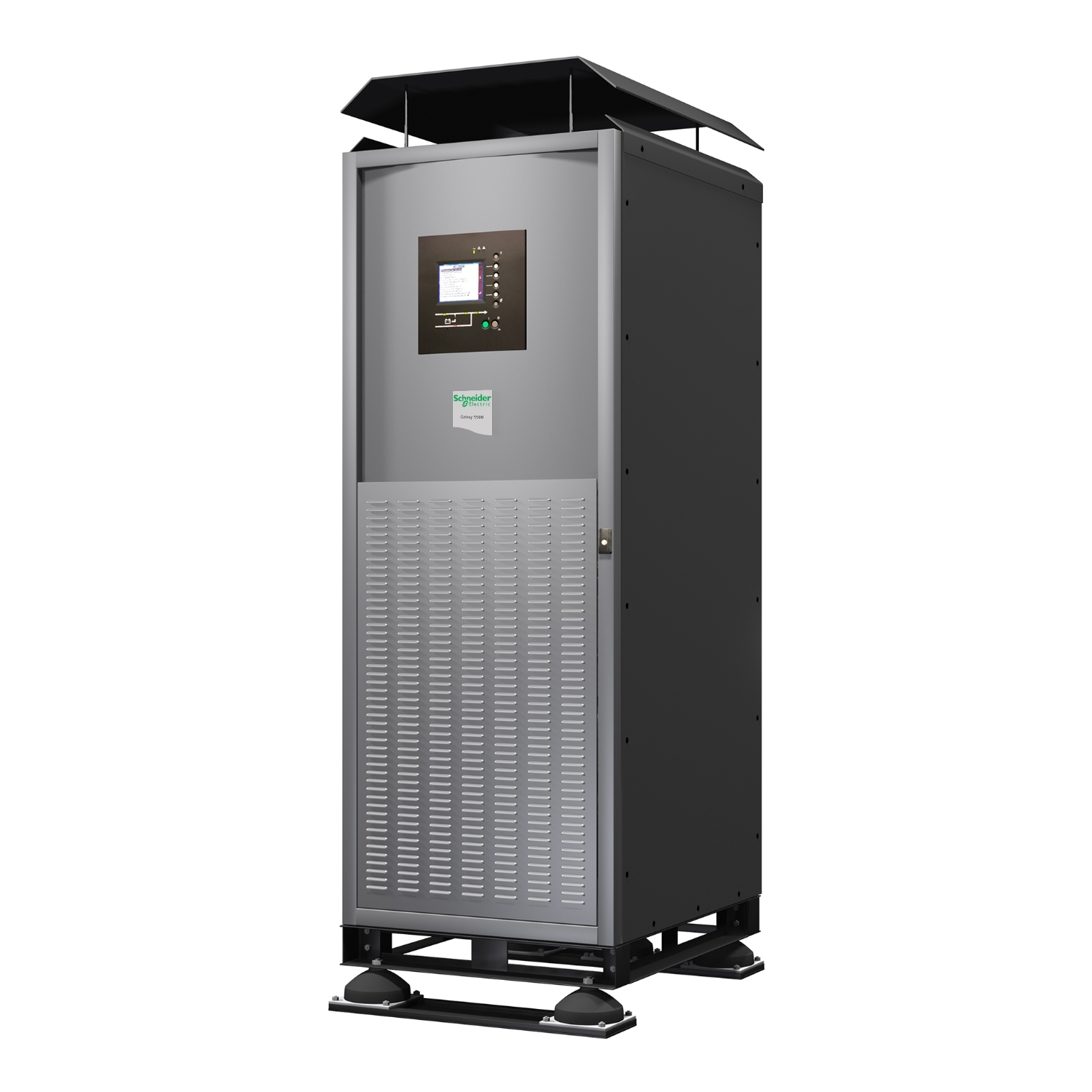

APC G55TUPU100HXS uninterruptible power supply (UPS) Double-conversion (Online) 100 kVA

APC G55TUPU100HXS uninterruptible power supply (UPS) Double-conversion (Online) 100 kVA

90000 W

Model G55TUPU100HXS

49 specifications
  • Noise63 dB
  • TypeTower
  • Weight520 kg
  • ColourGrey
  • UPS topologyDouble-conversion (Online)
  • Serial interfaceYes
See all specifications

Overview

Noise
63 dB
Type
Tower
Weight
520 kg
Colour
Grey
UPS topology
Double-conversion (Online)
Serial interface
Yes
Brand
APC
Model
G55TUPU100HXS
Part number
G55TUPU100HXS
Also known as
APC G55TUPU100HXS uninterruptible power supply (UPS) Double-conversion (Online) 100 kVA 90000 W

Specifications

49 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity100 kVA
Output power90000 W
WaveformSine
Input operation voltage (min)323 V
Input operation voltage (max)477 V
Input frequency45/65 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50 Hz
Maximum current480 A
Number of input phases3
Number of output phases3
Efficiency93%
Input power factor1
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)2.5%
Input current Total Harmonic Distortion (THD)3%
Noise level63 dB
Power protection featuresOverload, Short circuit
Auto-restartYes

Ports & interfaces

AC outlet typesHard Wire 4-wire (3PH + G), Hard Wire 4-wire (3PH + N)
Serial interfaceYes
SmartSlotYes

Battery

Hot-swap batteryYes
Automatic battery testYes

Design

Form factorTower
Product colourGrey
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20, IP32

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 1000 m
Non-operating altitude0 - 12000 m

Packaging content

ManualYes
Quick installation guideYes

Certificates

CertificationCE, EN/IEC 62040-3, IEC 62040-1-2, IEC 62040-2, ISO 9001, TUV, VDE

Weight & dimensions

Width712 mm
Depth855 mm
Height2130 mm
Weight520 kg

Packaging data

Package width1010 mm
Package depth1050 mm
Package height2260 mm
Package weight540 kg
