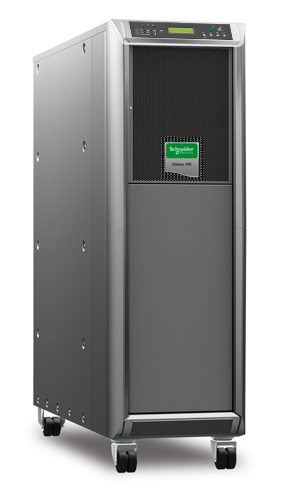

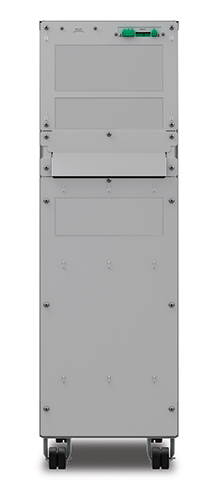

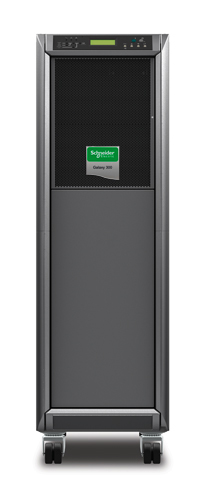

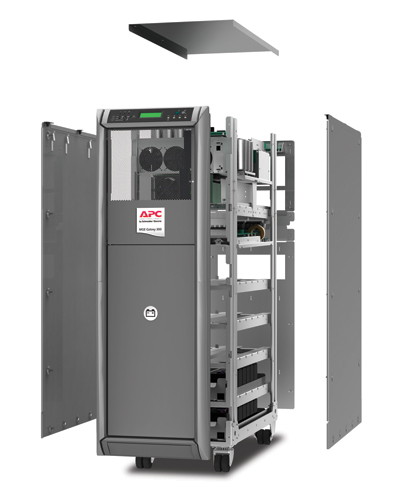

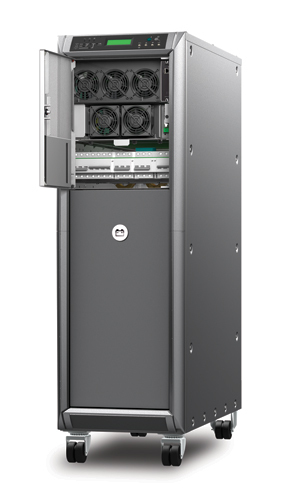

APC G3HT10KHB1S uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA

APC G3HT10KHB1S uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA

8000 W 2 AC outlet(s)

Model G3HT10KHB1SEAN 731304285472

47 specifications
  • Noise54.5 dB
  • TypeTower
  • Weight218 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • Power plugTerminal
See all specifications

Overview

Noise
54.5 dB
Type
Tower
Weight
218 kg
Colour
Black
UPS topology
Double-conversion (Online)
Power plug
Terminal
Brand
APC
Model
G3HT10KHB1S
Part number
G3HT10KHB1S
EAN / UPC
731304285472
Also known as
APC G3HT10KHB1S uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 8000 W 2 AC outlet(s)

Specifications

47 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power8000 W
WaveformSine
Input operation voltage (min)323 V
Input operation voltage (max)477 V
Input frequency45/65 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Input power factor0.92
Crest factor2.5:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)5%
Input current Total Harmonic Distortion (THD)5%
Noise level54.5 dB
Web-based managementYes

Ports & interfaces

AC outlet typesHard Wire 5-wire (3PH + N + G), Terminal
Power plugTerminal
AC outlets quantity2 AC outlet(s)
SmartSlotYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery voltage192 V
Battery life (max)5 year(s)

Design

Form factorTower
Product colourBlack
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 35 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 9000 m

Packaging content

ManualYes
Quick installation guideYes

Certificates

Compliance certificatesRoHS
CertificationCE, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 61000-4-5, IEC 62040-2, TUV, VFI-SS-111

Weight & dimensions

Width400 mm
Depth950 mm
Height1300 mm
Weight218 kg

Packaging data

Software CDYes
Package width800 mm
Package depth965 mm
Package height1440 mm
Package weight243 kg
