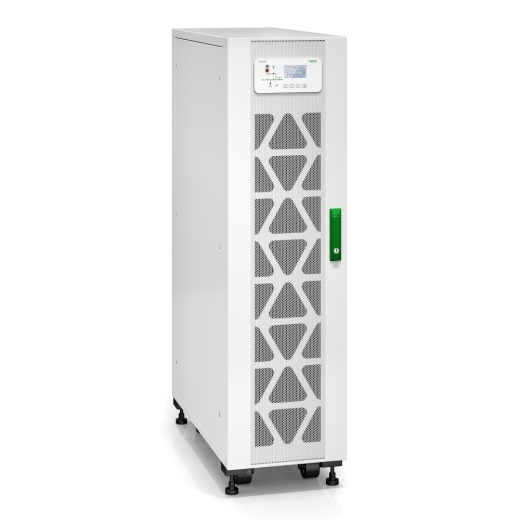

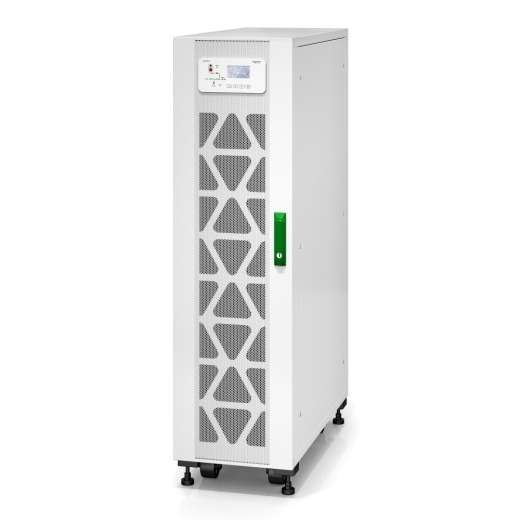

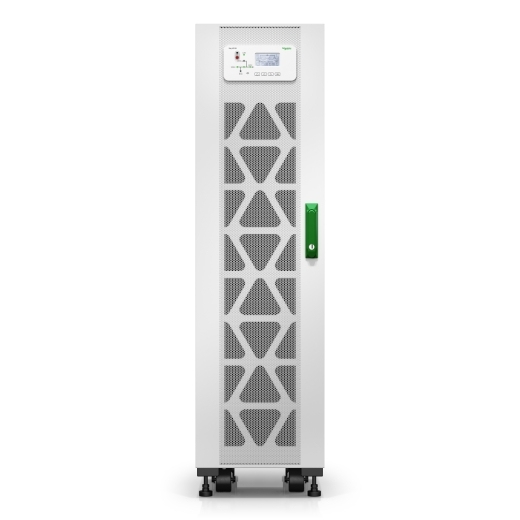

APC Easy UPS 3S 20 kVA
APC

Easy UPS 3S 20 kVA

400V 3:1 UPS, 2 internal 7Ah modular battery strings, expandable to 3

Model EasyPart no. E3SUPS20K3IB1EAN 731304428213

45 specifications
  • TypeTower
  • Weight177 kg
  • ColourWhite
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHardwire
  • Battery technologySealed Lead Acid (VRLA)
See all specifications

Overview

Type
Tower
Weight
177 kg
Colour
White
UPS topology
Double-conversion (Online)
AC outlet types
Hardwire
Battery technology
Sealed Lead Acid (VRLA)
Brand
APC
Model
Easy
Part number
E3SUPS20K3IB1
EAN / UPC
731304428213, 8592978668006
Also known as
APC Easy UPS 3S 20 kVA 400V 3:1 UPS, 2 internal 7Ah modular battery strings, expandable to 3

Specifications

45 specifications in 10 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity20 kVA
Output power20000 W
Input operation voltage (min)304 V
Input operation voltage (max)477 V
Input frequency45/65 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Maximum current37 A
Number of input phases3
Input power factor0.99
Output power factor1
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)3%
Input current Total Harmonic Distortion (THD)5%

Ports & interfaces

AC outlet typesHardwire

Battery

Battery technologySealed Lead Acid (VRLA)
Battery voltage240 V
Number of batteries supported2
Typical backup time at full load15 min

Design

Form factorTower
Product colourWhite
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 1000 m
Non-operating altitude0 - 15240 m

Certificates

Compliance certificatesCE, RoHS
CertificationEAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM

Sustainability

Sustainability complianceYes

Weight & dimensions

Width380 mm
Depth907 mm
Height1400 mm
Weight177 kg

Packaging data

Package width563 mm
Package depth1014 mm
Package height1640 mm
Package weight186 kg

Logistics data

Harmonized System (HS) code85078000
