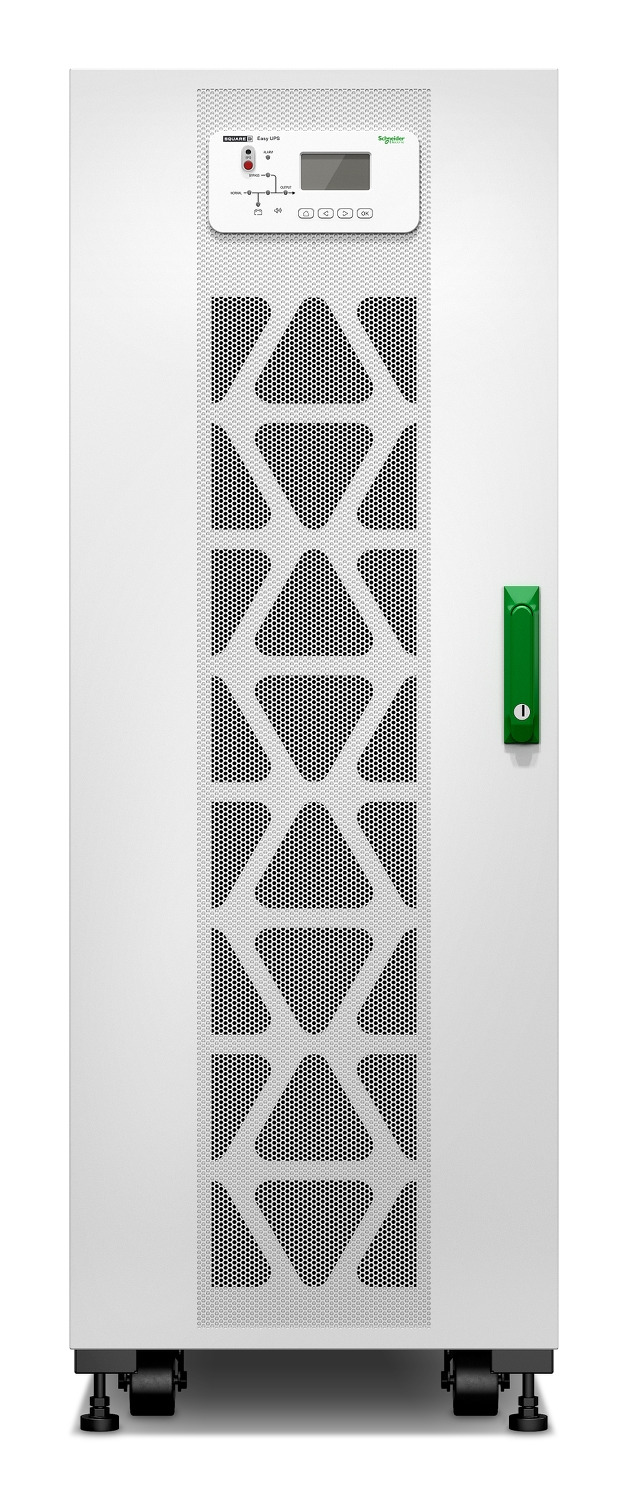

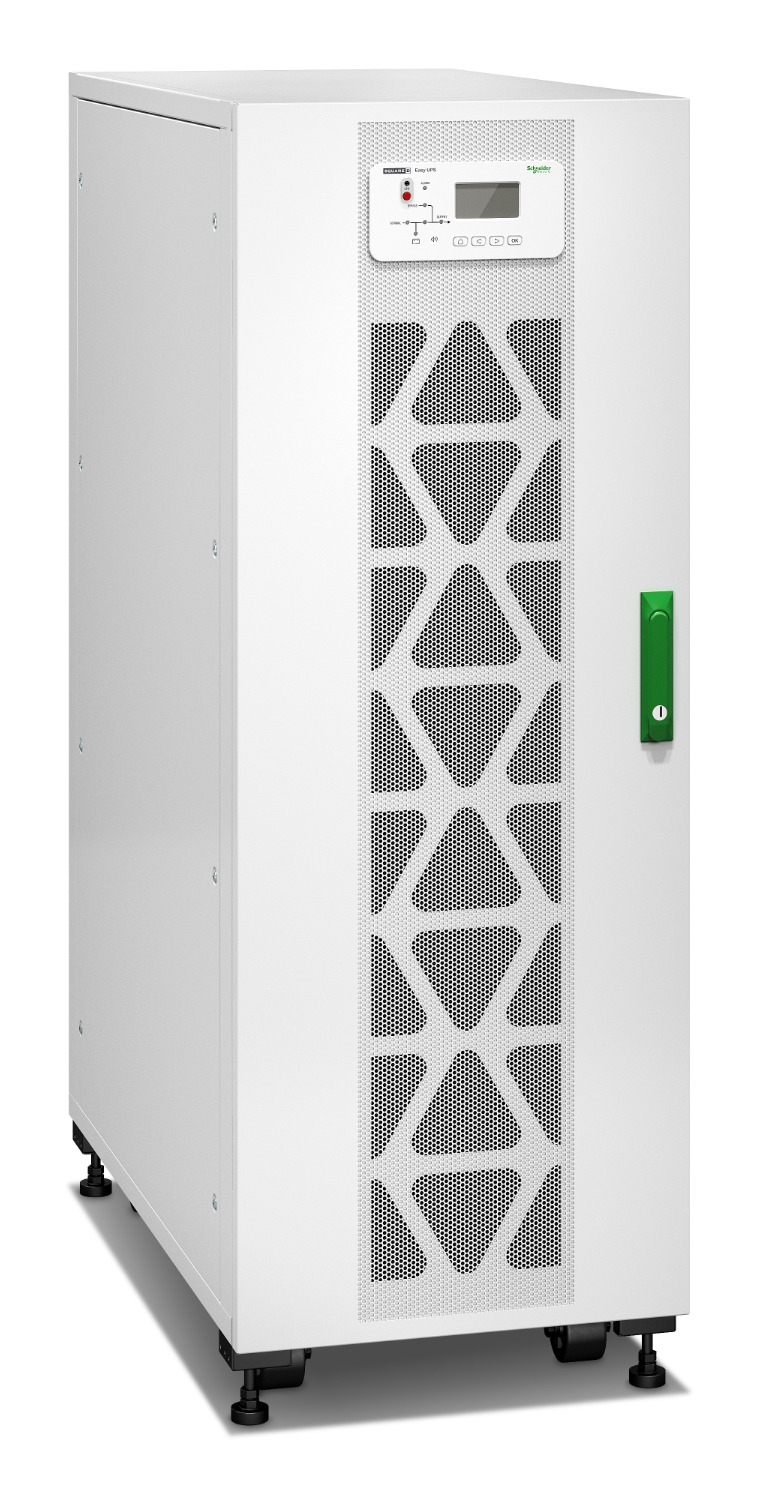

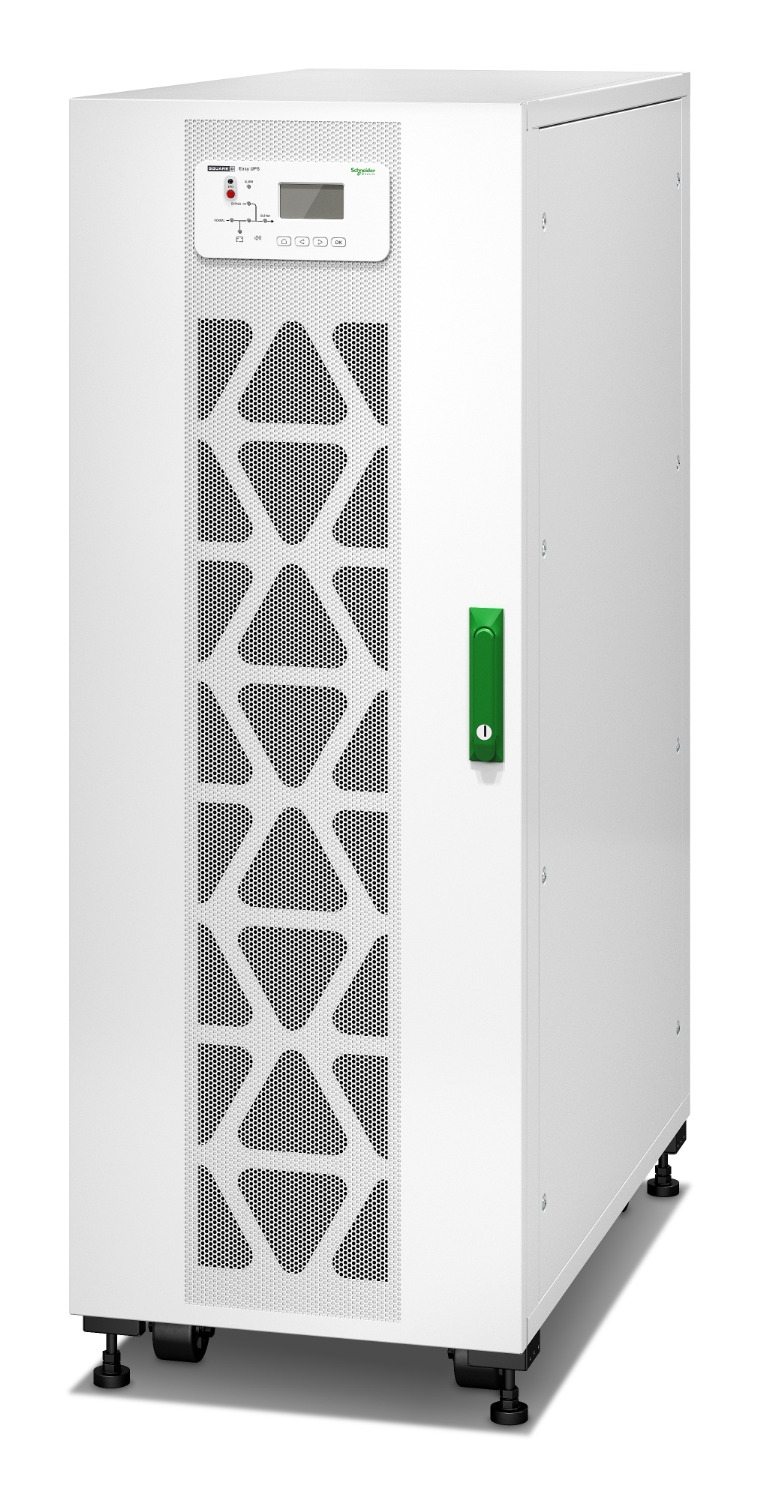

E3SUPS40KFBS uninterruptible power supply (UPS) Double-conversion (Online) 40 kVA
40000 W
Model E3SUPS40KFBS
35 specifications
- TypeTower
- Weight187 kg
- ColourWhite
- UPS topologyDouble-conversion (Online)
- Battery technologyLead-Acid
- Operating temperature (T-T)0 - 40 °C
Overview
- Type
- Tower
- Weight
- 187 kg
- Colour
- White
- UPS topology
- Double-conversion (Online)
- Battery technology
- Lead-Acid
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- APC
- Model
- E3SUPS40KFBS
- Part number
- E3SUPS40KFBS
- Also known as
- APC E3SUPS40KFBS uninterruptible power supply (UPS) Double-conversion (Online) 40 kVA 40000 W
Specifications
35 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 40 kVA |
| Output power | 40000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 40 - 70 Hz |
| Output frequency | 50 Hz |
| Maximum current | 73 A |
| Heat dissipation | 2800 BTU/h |
| Power factor | 0.7 |

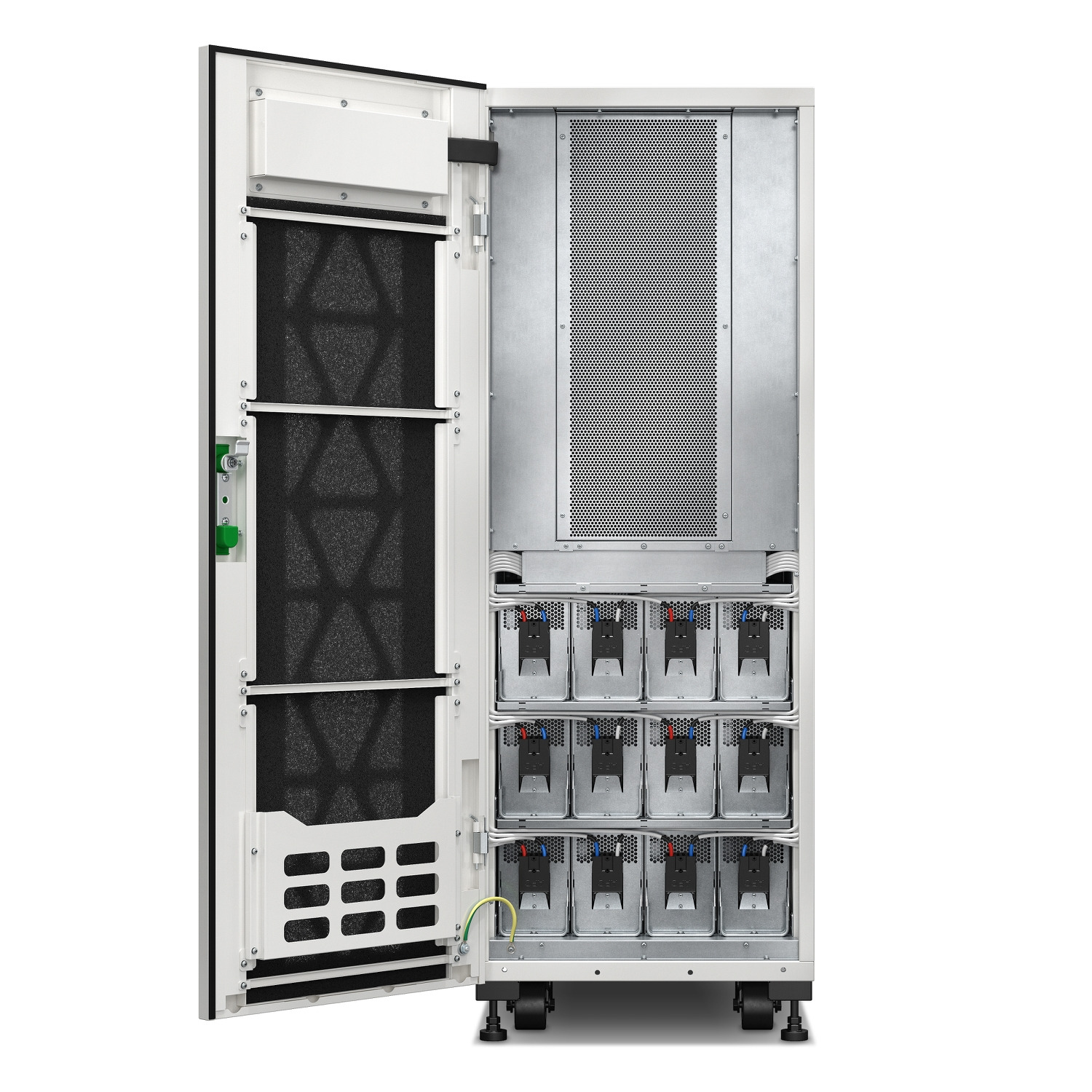

Battery
| Specification | Value |
|---|---|
| Battery technology | Lead-Acid |
| Battery voltage | 120 V |
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Management card included | No |
| Manual | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 380 mm |
| Depth | 1092 mm |
| Height | 1400 mm |
| Weight | 187 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1200 mm |
| Package depth | 800 mm |
| Package height | 1595 mm |
| Package weight | 220 kg |
Other features
| Specification | Value |
|---|---|
| Output voltage | 208 V |
