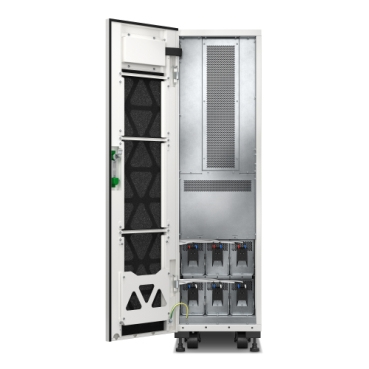

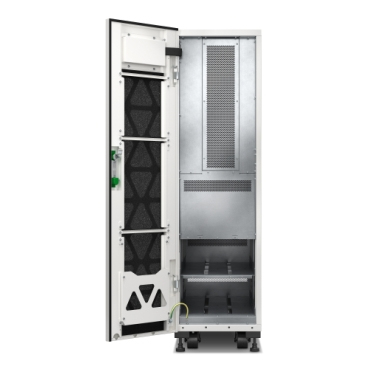

E3SUPS20KFBS uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA
20000 W
Model E3SUPS20KFBSEAN 731304433699
32 specifications
- Noise68 dB
- Weight132 kg
- ColourWhite
- UPS topologyDouble-conversion (Online)
- Battery voltage96 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Noise
- 68 dB
- Weight
- 132 kg
- Colour
- White
- UPS topology
- Double-conversion (Online)
- Battery voltage
- 96 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- APC
- Model
- E3SUPS20KFBS
- Part number
- E3SUPS20KFBS
- EAN / UPC
- 731304433699
- Also known as
- APC E3SUPS20KFBS uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
Specifications
32 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 220 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 220 V |
| Output frequency | 50/60 Hz |
| Heat dissipation | 1400 BTU/h |
| Input current Total Harmonic Distortion (THD) | 4% |
| Noise level | 68 dB |
| Power protection features | Overload |
Battery
| Specification | Value |
|---|---|
| Battery voltage | 96 V |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Control type | Touch |
| Display type | LCD |
| International Protection (IP) code | IP20 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 15000 m |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1778 5th edition IEC 62040-2 FCC part 15 class B IEC 62040-3 cTUVus ISTA 2B |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 380 mm |
| Depth | 960 mm |
| Height | 1400 mm |
| Weight | 132 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1200 mm |
| Package depth | 800 mm |
| Package height | 1595 mm |
| Package weight | 165 kg |
