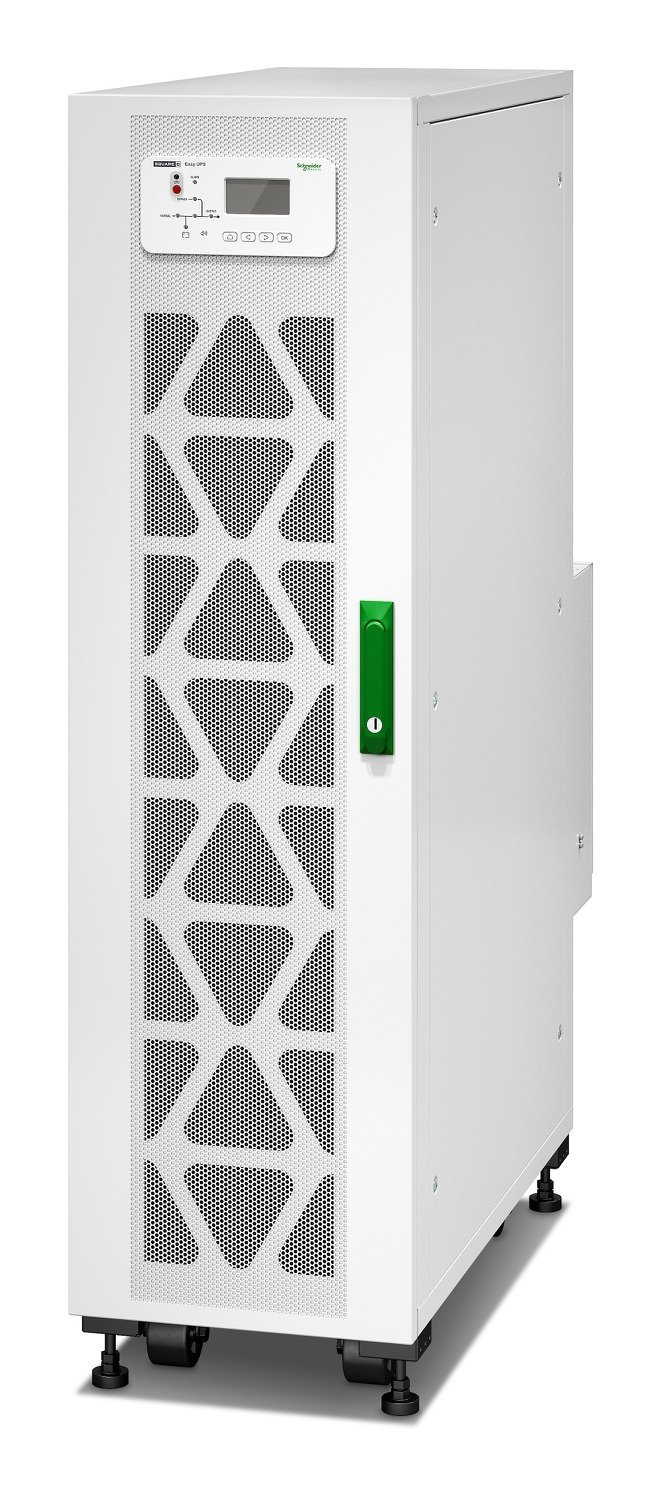

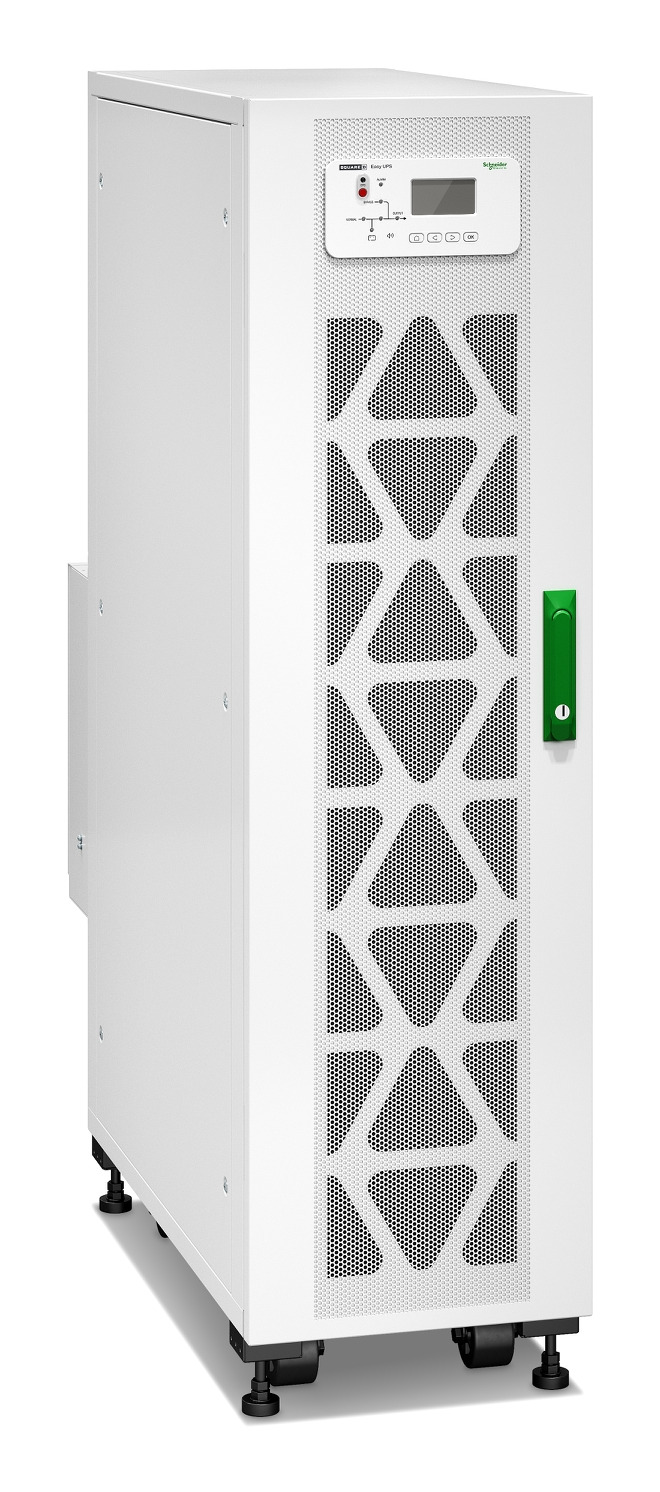

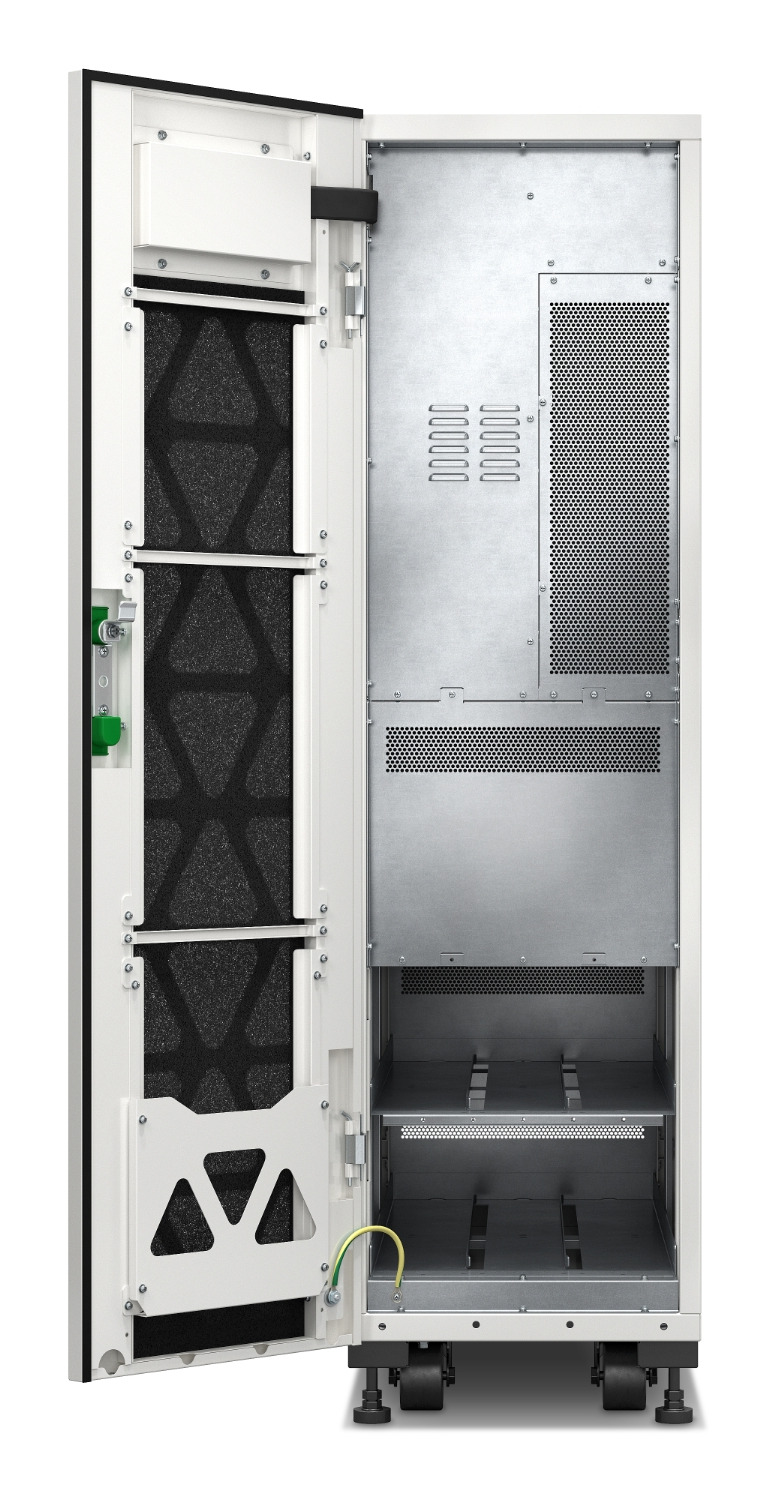

E3SUPS10KFB uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA
10000 W
Model E3SUPS10KFB
34 specifications
- TypeTower
- Weight120 kg
- ColourWhite
- UPS topologyDouble-conversion (Online)
- Battery technologyLead-Acid
- Operating temperature (T-T)0 - 40 °C
Overview
- Type
- Tower
- Weight
- 120 kg
- Colour
- White
- UPS topology
- Double-conversion (Online)
- Battery technology
- Lead-Acid
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- APC
- Model
- E3SUPS10KFB
- Part number
- E3SUPS10KFB
- Also known as
- APC E3SUPS10KFB uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W
Specifications
34 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Pure sine |
| Input frequency | 40 - 70 Hz |
| Output frequency | 60 Hz |
| Heat dissipation | 700 BTU/h |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Input current Total Harmonic Distortion (THD) | 4% |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lead-Acid |
| Battery voltage | 120 V |
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| International Protection (IP) code | IP20 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Management card included | No |
| Manual | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE, EAC, RCM |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
Power
| Specification | Value |
|---|---|
| Input current (max) | 31 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 380 mm |
| Depth | 960 mm |
| Height | 1400 mm |
| Weight | 120 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1200 mm |
| Package depth | 800 mm |
| Package height | 1595 mm |
| Package weight | 152 kg |
Other features
| Specification | Value |
|---|---|
| Output voltage | 208 V |
