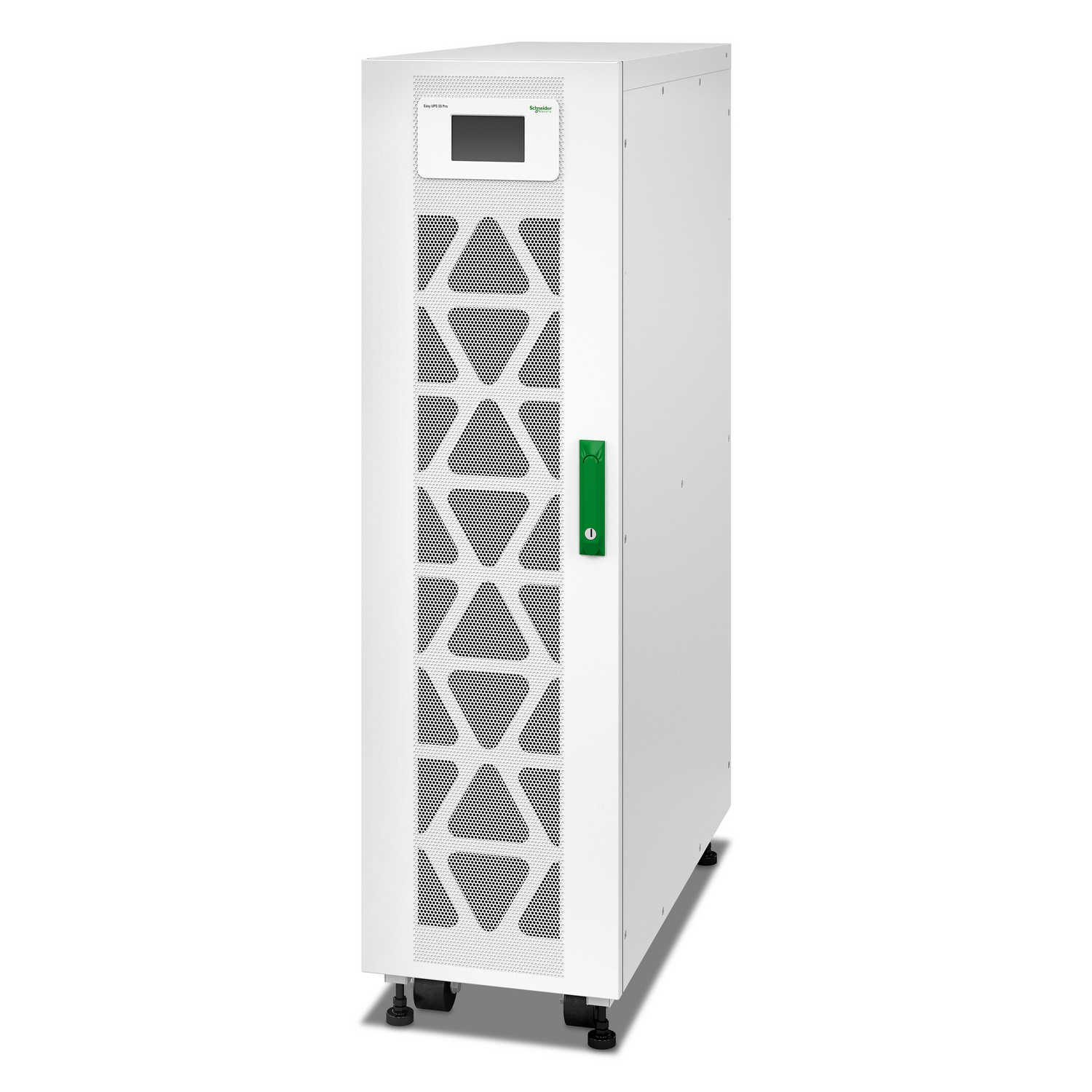

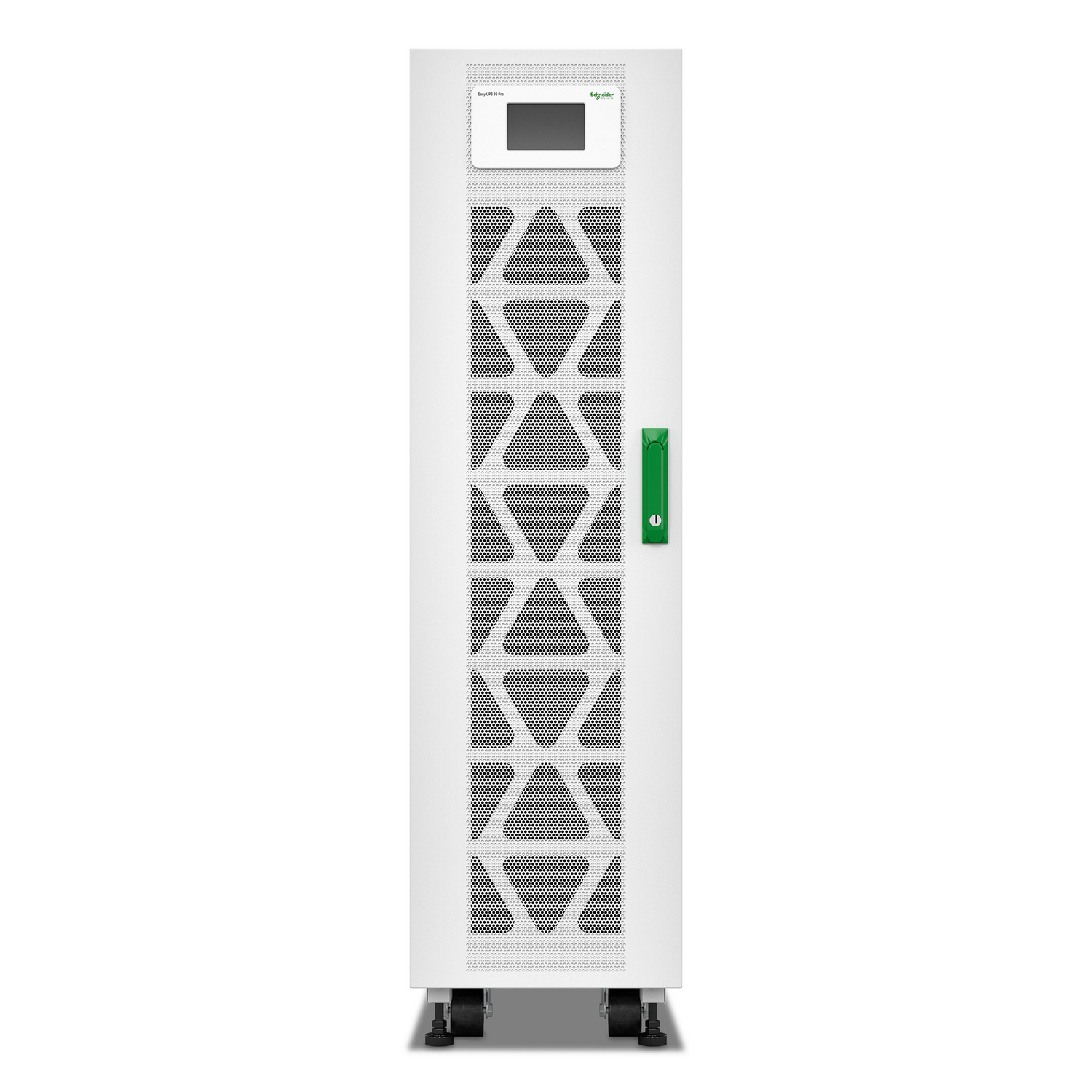

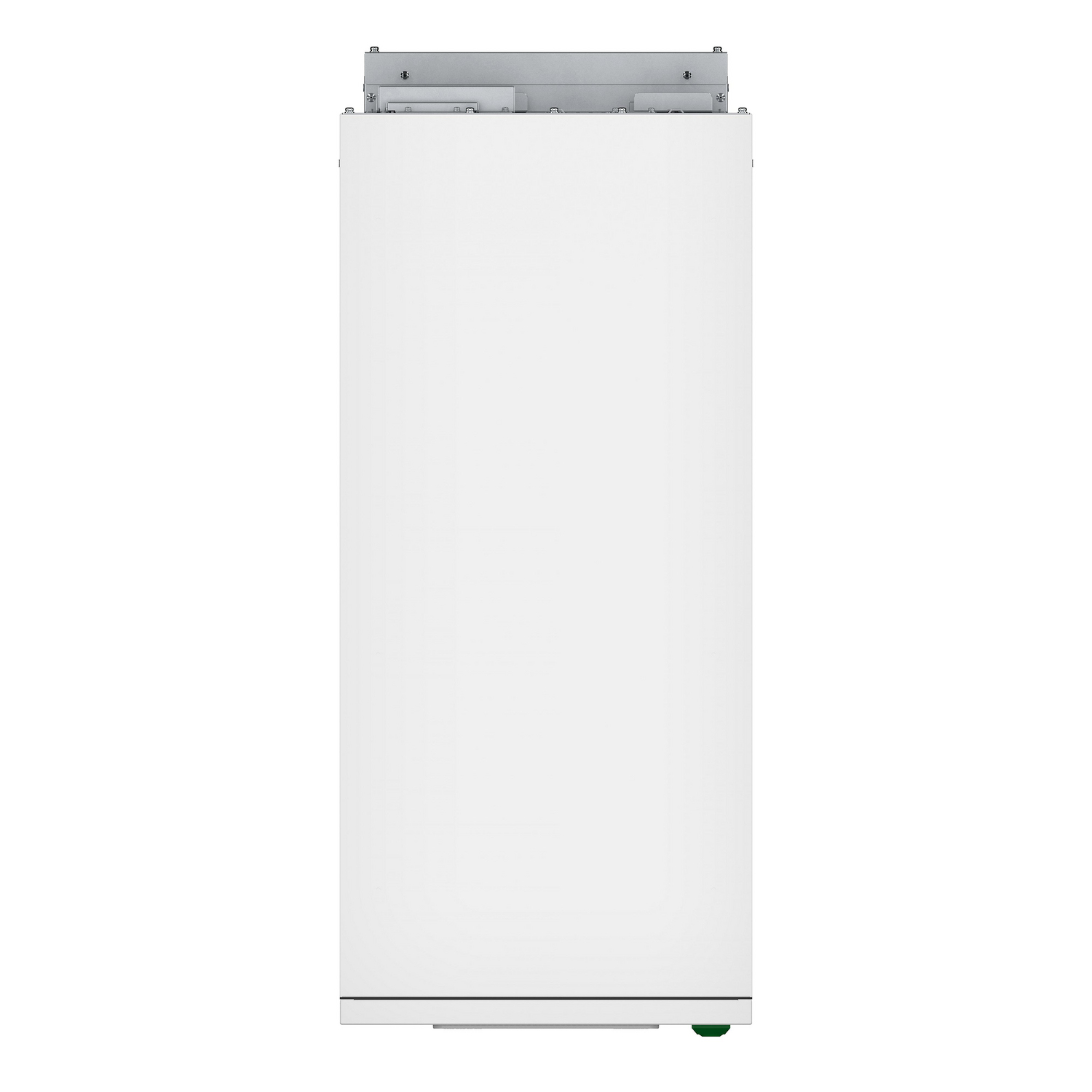

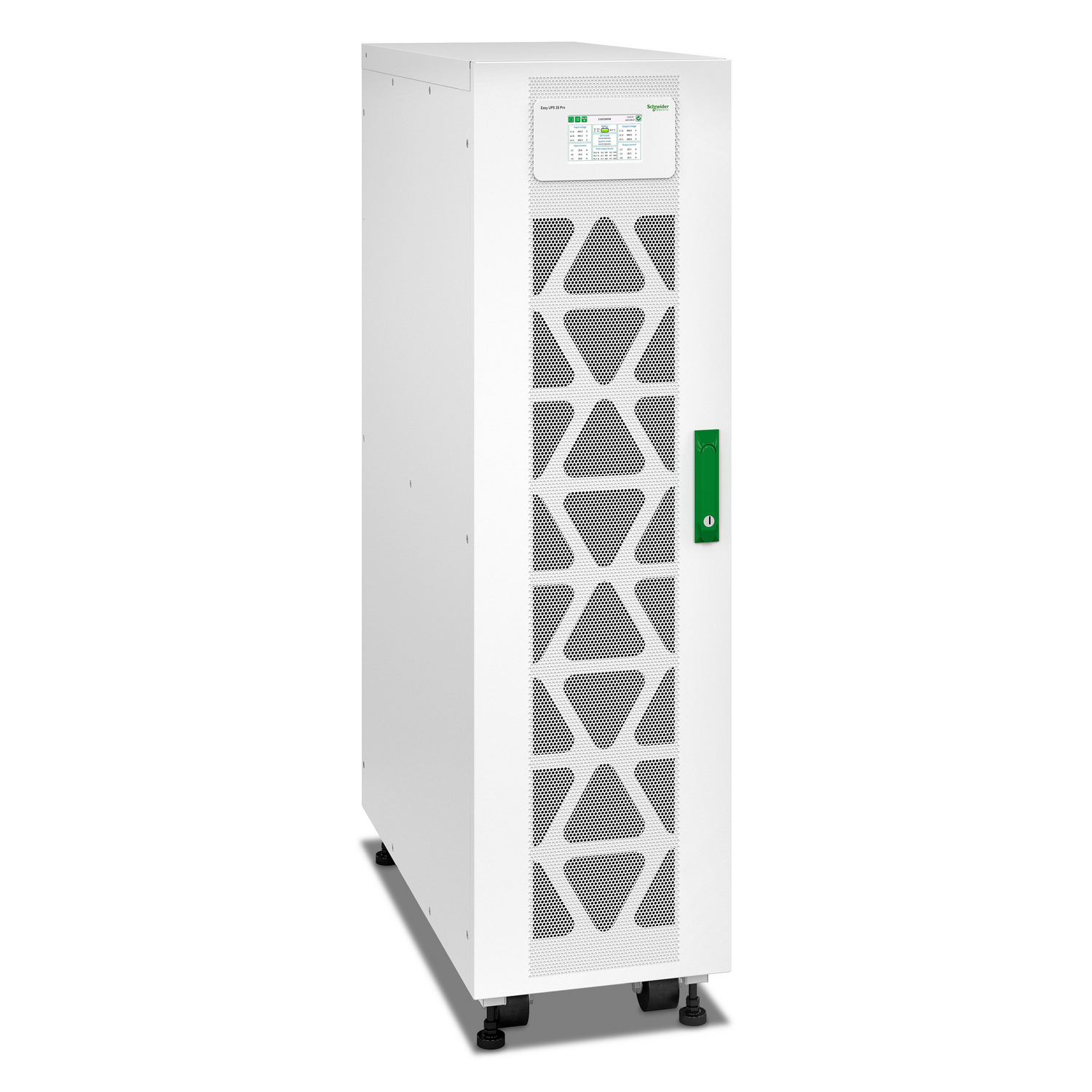

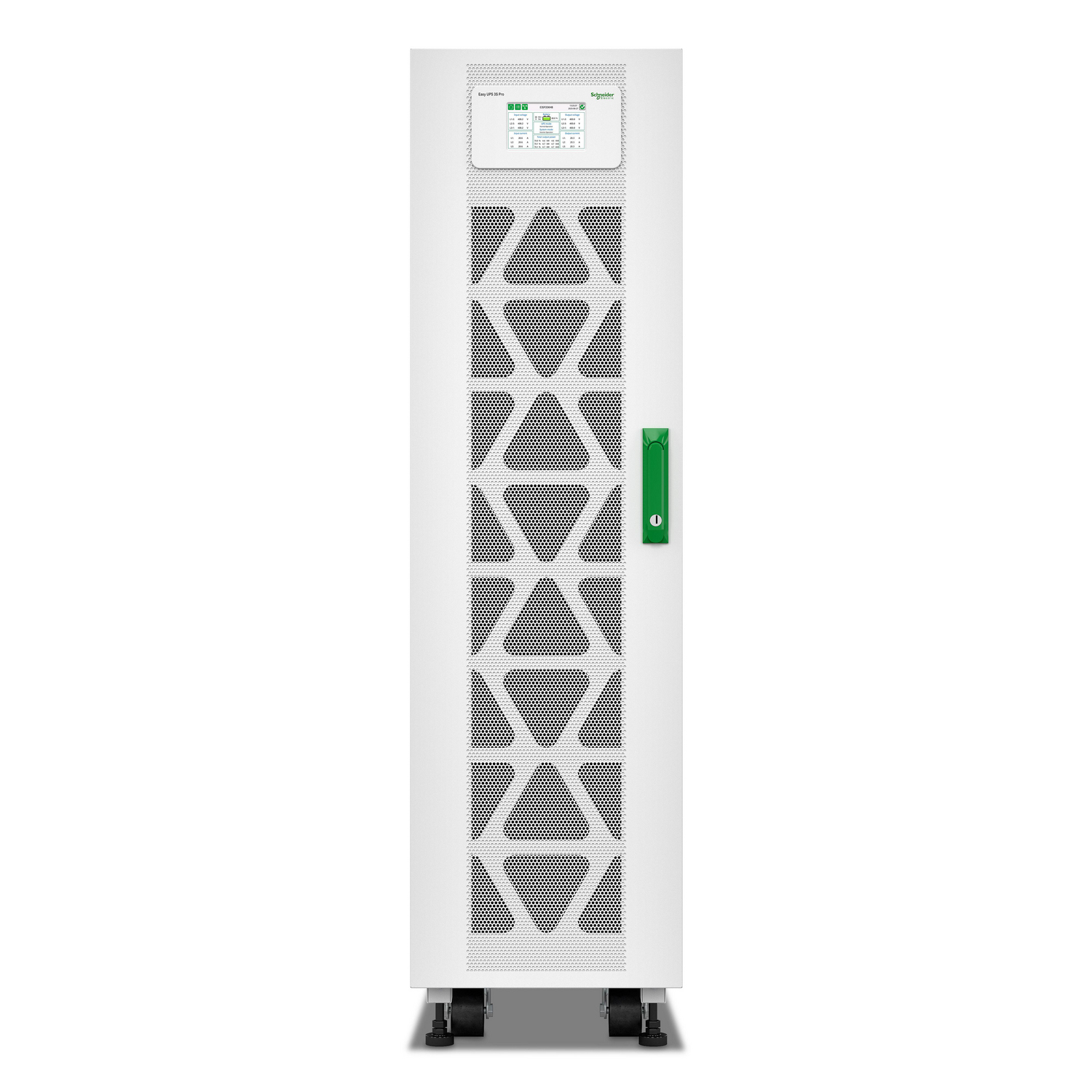

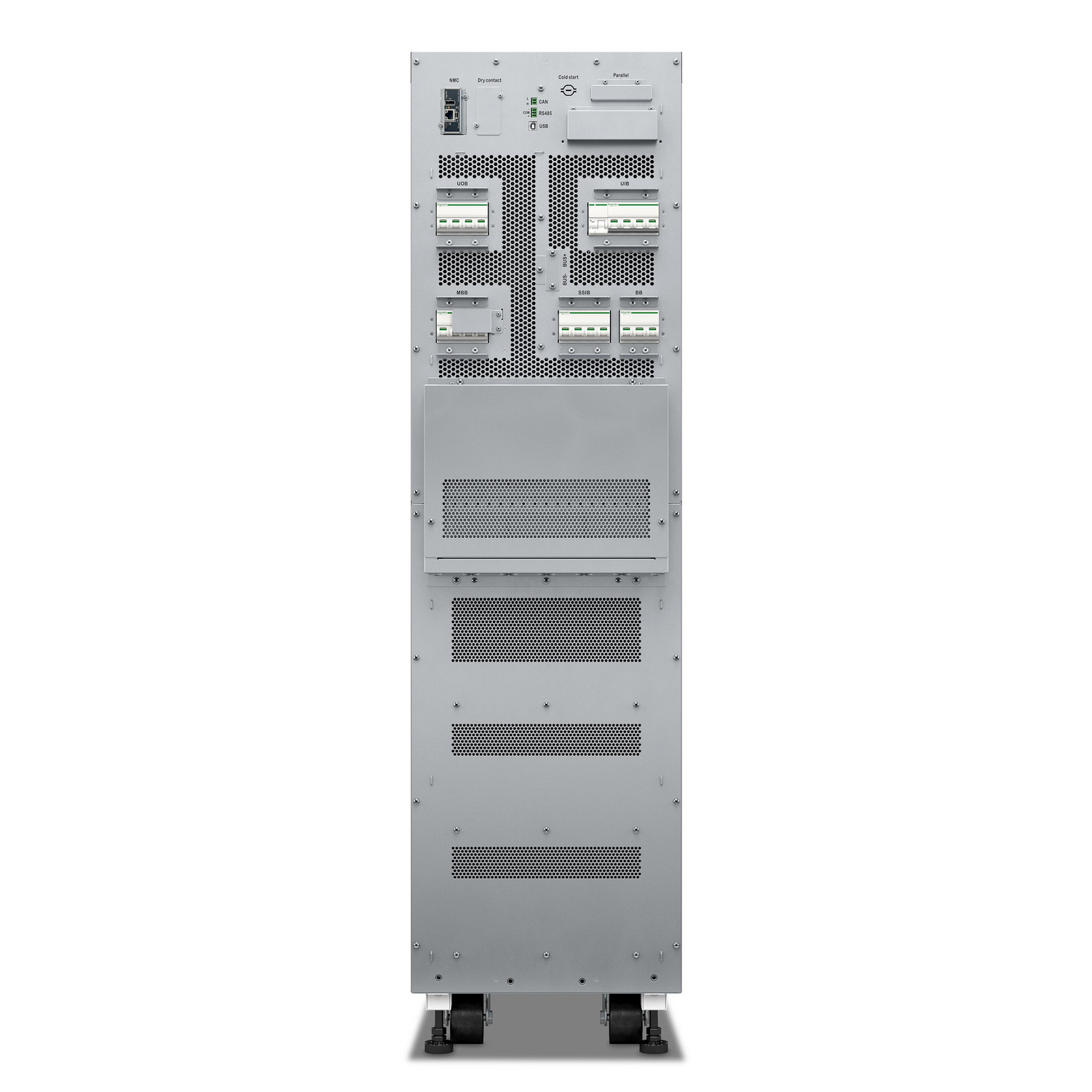

Easy UPS 3S Pro 10kVA

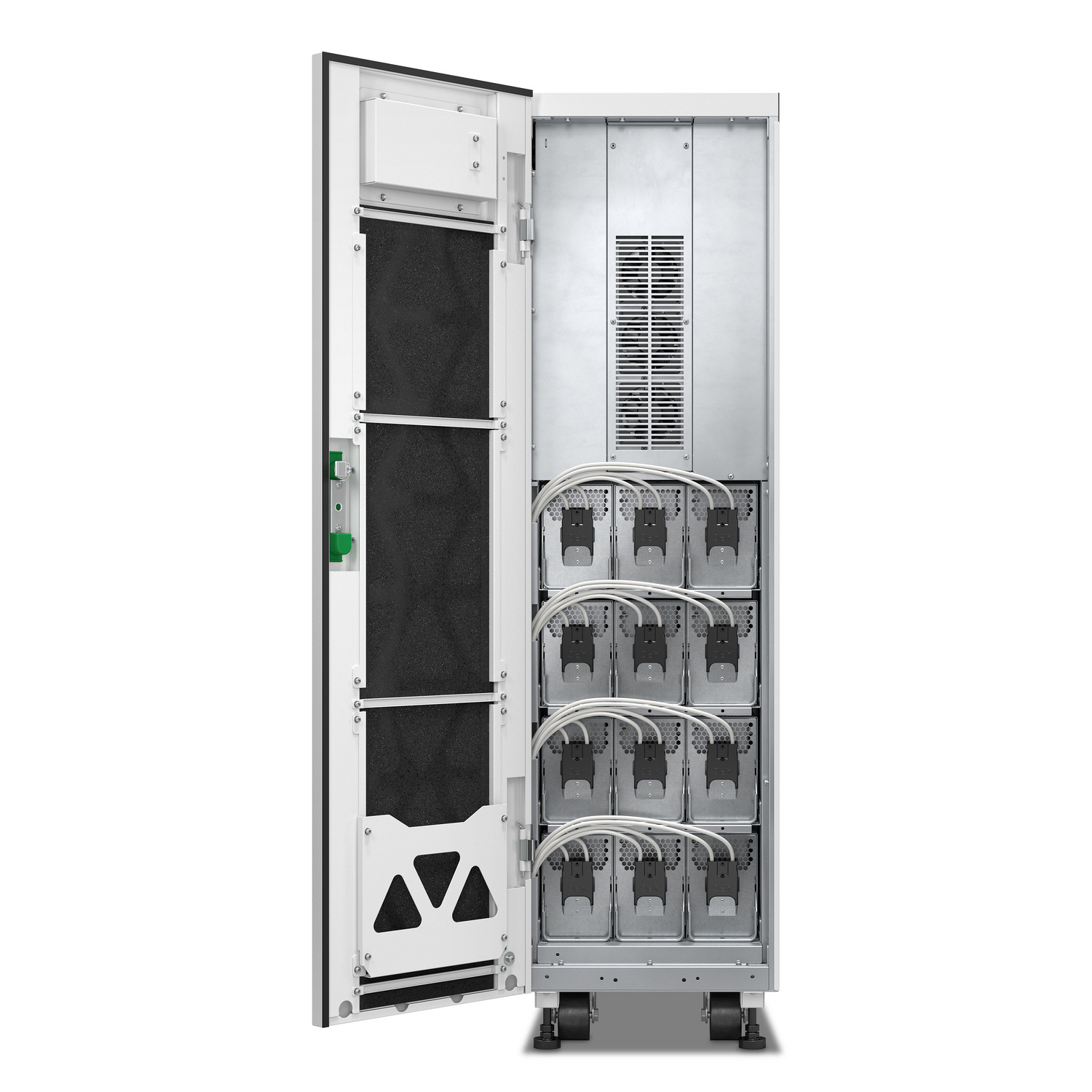

400V 3:3 UPS for internal batteries
Model E3SP10KHBEAN 731304791546
32 specifications
- TypeTower
- Weight119 kg
- ColourWhite
- UPS topologyDouble-conversion (Online)
- Battery technologyLead-Acid
- Operating temperature (T-T)0 - 40 °C
Overview
- Type
- Tower
- Weight
- 119 kg
- Colour
- White
- UPS topology
- Double-conversion (Online)
- Battery technology
- Lead-Acid
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- APC
- Model
- E3SP10KHB
- Part number
- E3SP10KHB
- EAN / UPC
- 731304791546
- Also known as
- APC Easy UPS 3S Pro 10kVA 400V 3:3 UPS for internal batteries
Specifications
32 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Input operation voltage (min) | 380 V |
| Input operation voltage (max) | 415 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Heat dissipation | 2156 BTU/h |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Input current Total Harmonic Distortion (THD) | 3% |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lead-Acid |
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Product colour | White |
| Control type | Touch |
| Display type | LCD |
| International Protection (IP) code | IP20 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Power
| Specification | Value |
|---|---|
| Input current (max) | 16 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 380 mm |
| Depth | 907 mm |
| Height | 1400 mm |
| Weight | 119 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 380 mm |
| Package depth | 907 mm |
| Package height | 1400 mm |
| Package weight | 141 kg |
