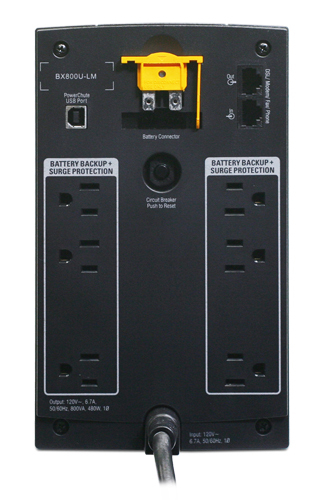

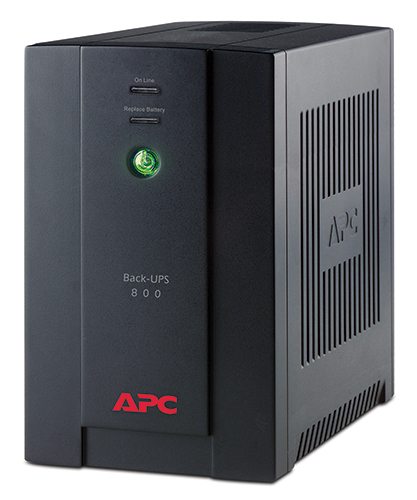

APC BX800U-LM uninterruptible power supply (UPS) Line-Interactive 0.8 kVA

APC BX800U-LM uninterruptible power supply (UPS) Line-Interactive 0.8 kVA

480 W 6 AC outlet(s)

Model BX800U-LM

40 specifications
  • Noise45 dB
  • TypeCompact
  • Weight8 kg
  • ColourBlack
  • UPS topologyLine-Interactive
  • AC outlet typesNEMA 5–15P, NEMA 5–15R
See all specifications

Overview

Noise
45 dB
Type
Compact
Weight
8 kg
Colour
Black
UPS topology
Line-Interactive
AC outlet types
NEMA 5–15P, NEMA 5–15R
Brand
APC
Model
BX800U-LM
Part number
BX800U-LM
Also known as
APC BX800U-LM uninterruptible power supply (UPS) Line-Interactive 0.8 kVA 480 W 6 AC outlet(s)

Specifications

40 specifications in 8 groups

Features

UPS topologyLine-Interactive
Output power capacity0.8 kVA
Output power480 W
Input operation voltage (min)120 V
Input operation voltage (max)120 V
Input frequency50/60 Hz
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Automatic Voltage Regulation (AVR)Yes
Maximum current7 A
Surge energy rating375 J
Efficiency96%
Noise level45 dB
Surge protectionYes
Surge protection featuresFax, Modem, Telephone
Power protection featuresOverload

Ports & interfaces

AC outlet typesNEMA 5–15P, NEMA 5–15R
AC outlets quantity6 AC outlet(s)
USB 2.0 ports quantity1
Modem (RJ-11) ports2

Battery

Battery recharge time8 h

Design

Form factorCompact
Product colourBlack
Cable length1.16 m
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 10000 m
Non-operating altitude0 - 3000 m

Certificates

Compliance certificatesRoHS

Weight & dimensions

Width130 mm
Depth336 mm
Height215 mm
Weight8 kg

Packaging data

Package width245 mm
Package depth440 mm
Package height295 mm
Package weight8.94 kg
