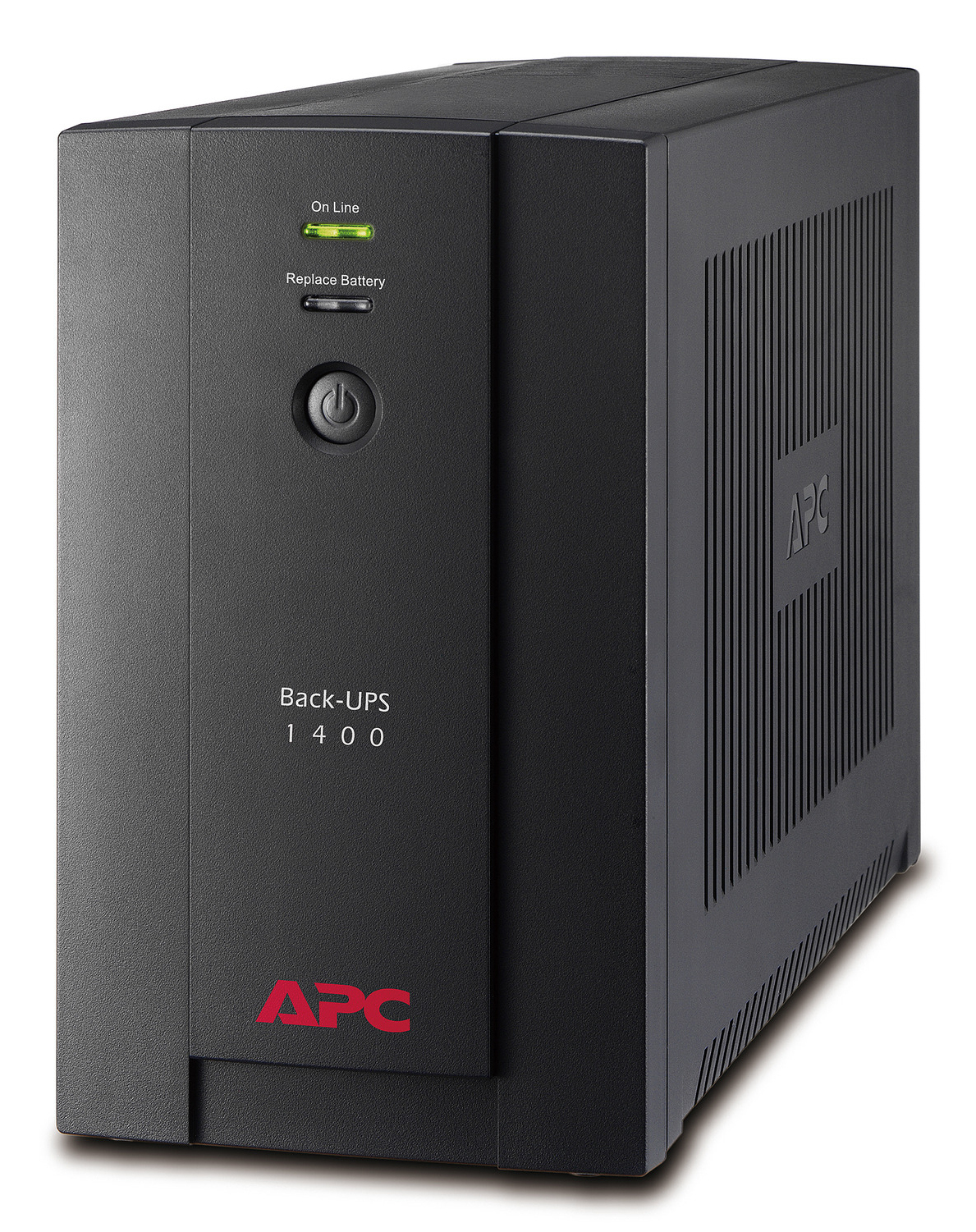

APC BX1400U-MS uninterruptible power supply (UPS) Line-Interactive 1.4 kVA
APC

BX1400U-MS uninterruptible power supply (UPS) Line-Interactive 1.4 kVA

700 W 6 AC outlet(s)

Model BX1400U-MSEAN 731304315940

62 specifications
  • Battery7.2 Ah
  • Noise45 dB
  • TypeTower
  • Weight12 kg
  • ColourBlack
  • UPS topologyLine-Interactive
See all specifications

Overview

Battery
7.2 Ah
Noise
45 dB
Type
Tower
Weight
12 kg
Colour
Black
UPS topology
Line-Interactive
Brand
APC
Model
BX1400U-MS
Part number
BX1400U-MS
EAN / UPC
731304315940
Also known as
APC BX1400U-MS uninterruptible power supply (UPS) Line-Interactive 1.4 kVA 700 W 6 AC outlet(s)

Specifications

62 specifications in 11 groups

Features

UPS topologyLine-Interactive
Output power capacity1.4 kVA
Output power700 W
WaveformSine
Input operation voltage (min)150 V
Input operation voltage (max)280 V
Input frequency50/60 Hz
Output frequency regulation50/60 Hz
Automatic Voltage Regulation (AVR)Yes
Maximum current6 A
Surge energy rating273 J
Hold time (max)10 ms
Hold time (min)8 ms
Efficiency97.4%
Input power factor0.5
Noise level45 dB
Surge protectionYes
Surge protection featuresFax, Modem
Audible alarm(s)Yes
Audible alarm modesOverload alarm
Auto-restartYes

Ports & interfaces

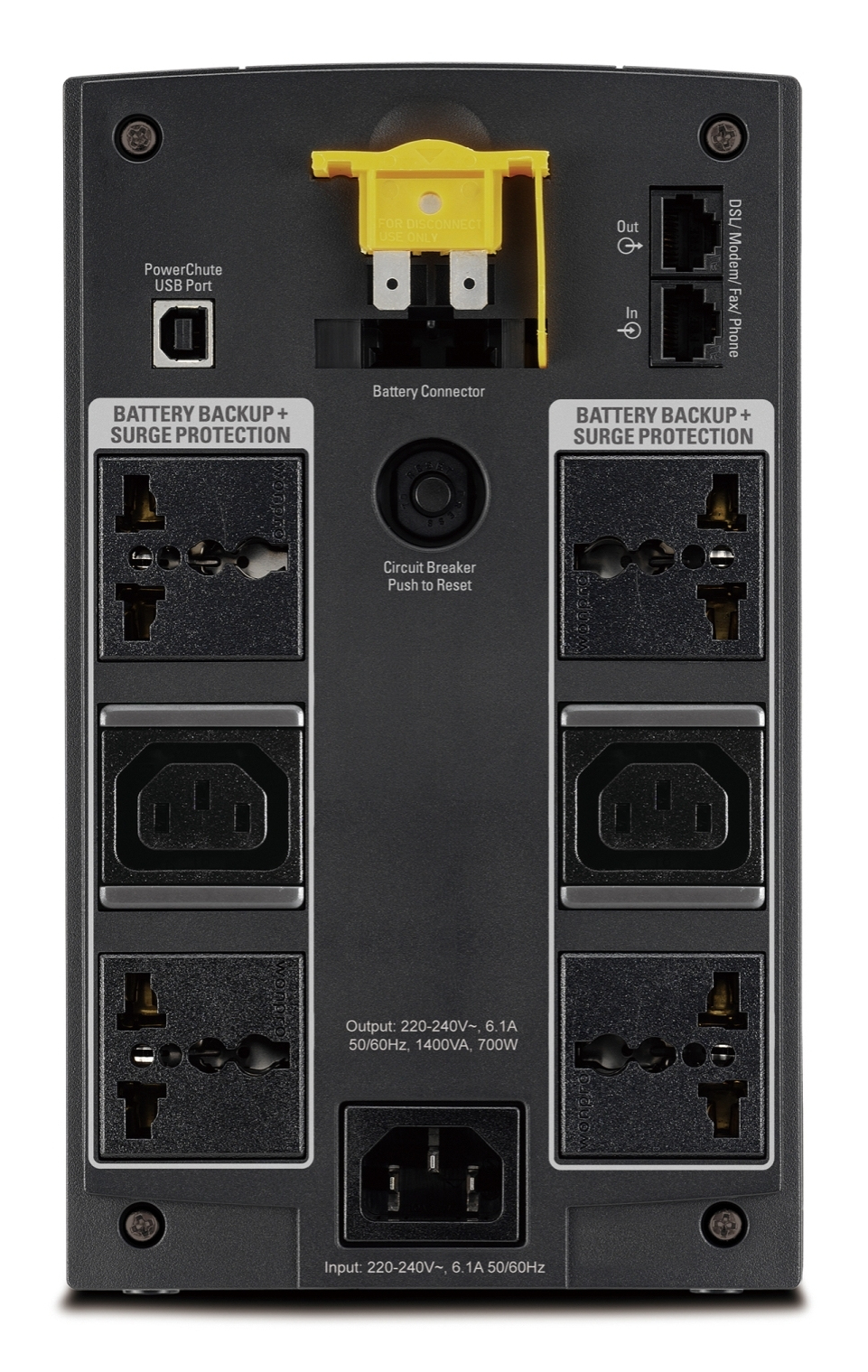

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity6 AC outlet(s)
Number of output IEC jumpers2
USB portYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity7.2 Ah
Battery capacity165 VAh
Battery voltage12 V
Number of batteries supported2
Typical backup time at full load2.4 min
Typical backup time at half load11.2 min
Battery life (max)5 year(s)
Battery recharge time8 h
Automatic battery testYes

Design

Form factorTower
Product colourBlack
Cable length1.22 m
Display typeLED
LED indicatorsBattery replacement

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 9000 m

Packaging content

ManualYes

Certificates

CertificationA-tick, C-tick, CE, IEC 62040-1-1, Telepermit

Weight & dimensions

Width130 mm
Depth336 mm
Height215 mm
Weight12 kg

Packaging data

Bundled softwarePowerChute Personal Edition
Package width245 mm
Package depth440 mm
Package height295 mm
Package weight12.9 kg

Logistics data

Harmonized System (HS) code85078000

Other features

Nominal input voltage230 V
Nominal output voltage230 V
Type of input protection required3-pole circuit breaker
