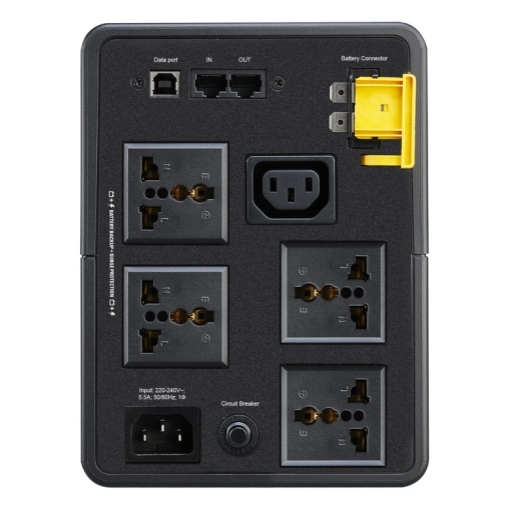

APC BX1200MI-MS uninterruptible power supply (UPS) Line-Interactive 1.2 kVA
APC

BX1200MI-MS uninterruptible power supply (UPS) Line-Interactive 1.2 kVA

650 W

Model BX1200MI-MSEAN 731304410713

20 specifications
  • Weight7.6 kg
  • ColourBlack
  • UPS topologyLine-Interactive
  • Battery voltage12 V
  • Operating temperature (T-T)0 - 40 °C
  • Width140 mm
See all specifications

Overview

Weight
7.6 kg
Colour
Black
UPS topology
Line-Interactive
Battery voltage
12 V
Operating temperature (T-T)
0 - 40 °C
Width
140 mm
Brand
APC
Model
BX1200MI-MS
Part number
BX1200MI-MS
EAN / UPC
731304410713
Also known as
APC BX1200MI-MS uninterruptible power supply (UPS) Line-Interactive 1.2 kVA 650 W

Specifications

20 specifications in 5 groups

Features

SpecificationValue
UPS topologyLine-Interactive
Output power capacity1.2 kVA
Output power650 W
Input operation voltage (min)140 V
Input operation voltage (max)300 V
Input frequency50/60 Hz
Power factor0.54

Battery

SpecificationValue
Battery voltage12 V
Battery recharge time8 h

Design

SpecificationValue
Product colourBlack
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

SpecificationValue
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

SpecificationValue
Width140 mm
Depth390 mm
Height190 mm
Weight7.6 kg
