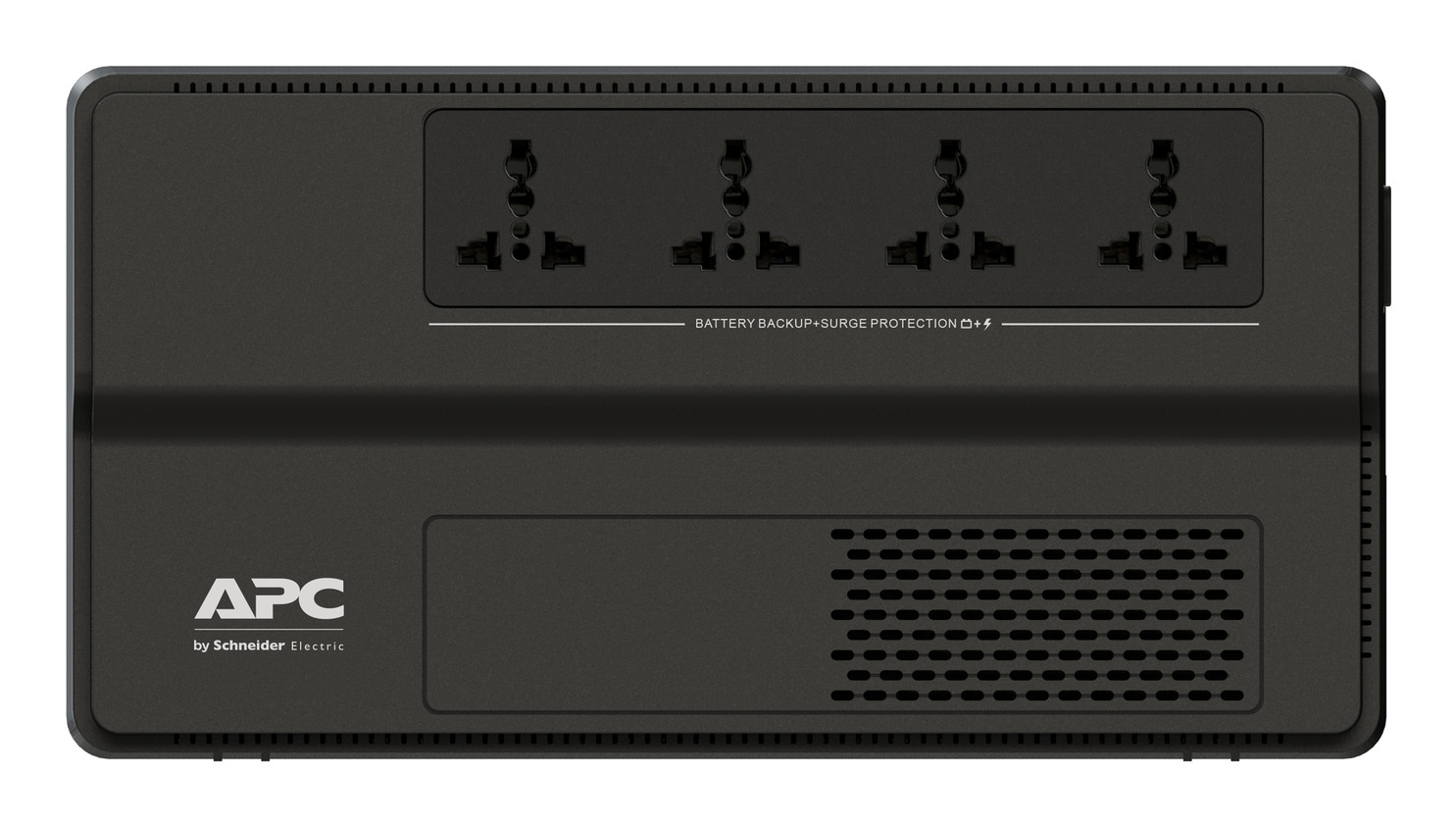

APC BV500I-MST uninterruptible power supply (UPS) Line-Interactive 0.5 kVA
APC

BV500I-MST uninterruptible power supply (UPS) Line-Interactive 0.5 kVA

300 W 4 AC outlet(s)

Model BV500I-MSTEAN 731304346838

32 specifications
  • Noise40 dB
  • TypeDesktop
  • Weight3.9 kg
  • ColourBlack
  • UPS topologyLine-Interactive
  • Power plugNEMA 5-15P
See all specifications

Overview

Noise
40 dB
Type
Desktop
Weight
3.9 kg
Colour
Black
UPS topology
Line-Interactive
Power plug
NEMA 5-15P
Brand
APC
Model
BV500I-MST
Part number
BV500I-MST
EAN / UPC
731304346838
Also known as
APC BV500I-MST uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 300 W 4 AC outlet(s)

Specifications

32 specifications in 8 groups

Features

SpecificationValue
UPS topologyLine-Interactive
Output power capacity0.5 kVA
Output power300 W
WaveformStepwise
Input operation voltage (min)170 V
Input operation voltage (max)280 V
Input frequency50/60 Hz
Output frequency50/60 Hz
Surge energy rating156 J
Response time6 ms
Noise level40 dB

Ports & interfaces

SpecificationValue
Power plugNEMA 5-15P
AC outlets quantity4 AC outlet(s)

Battery

SpecificationValue
Battery technologySealed Lead Acid (VRLA)
Battery recharge time8 h

Design

SpecificationValue
Form factorDesktop
Product colourBlack
International Protection (IP) codeIP20

Operational conditions

SpecificationValue
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%
Operating altitude0 - 2000 m

Weight & dimensions

SpecificationValue
Width161 mm
Depth305 mm
Height92 mm
Weight3.9 kg

Packaging data

SpecificationValue
Package width143 mm
Package depth373 mm
Package height237 mm
Package weight4.2 kg

Logistics data

SpecificationValue
Warranty period2 year(s)
