UN65TU690T 165.1 cm (65") 4K Ultra HD Smart TV Wi-Fi Grey
Model UN65TU690TPart no. UN65TU690TFXZAEAN 887276754994
122 specifications Checked today
- Display165.1 cm (65")
- Resolution3840 x 2160 pixels
- OSTizen
- ColourGrey
- Tuner typeAnalog & digital
- Smart TVYes
Overview
- Display
- 165.1 cm (65")
- Resolution
- 3840 x 2160 pixels
- OS
- Tizen
- Colour
- Grey
- Tuner type
- Analog & digital
- Smart TV
- Yes
- Brand
- Samsung
- Category
- TV
- Model
- UN65TU690T
- Part number
- UN65TU690TFXZA
- EAN / UPC
- 887276754994
- Also known as
- Samsung UN65TU690T 165.1 cm (65") 4K Ultra HD Smart TV Wi-Fi Grey
Specifications
122 specifications in 16 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 165.1 cm (65") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display technology | LED |
| Screen shape | Flat |
| Native aspect ratio | 16:9 |
| Screen format adjustments | 16:9 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes | 2160p |
| Motion interpolation technology | LED Clear Motion |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Display diagonal (metric) | 165 cm |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | ATSC, Clear QAM |
| Number of tuners | 2 tuner(s) |
| Auto channel search | Yes |
Smart TV
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Internet TV | Yes |
| Operating system installed | Tizen |
| Apple AirPlay 2 support | Yes |
| Sound mirroring | Yes |
| Smart modes | Filmmaker |
| Universal guide | Yes |
| Video apps | Samsung TV Plus |
Audio
| Specification | Value |
|---|---|
| RMS rated power | 20 W |
| Equalizer | Yes |
| Adaptive sound | Yes |
| Auto volume leveller | Yes |
| Multiroom | Yes |
| Multiroom audio technology | Samsung Multiroom Link |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Web browser | Yes |
| HID support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Colour name | Titan Gray |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 300 mm |
| Bezel type | 3 Bezel-less |
| Mini wall mount support | Yes |
| Stand type | Legs stand |
| Stand colour | Grey |
Performance
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | HDR 10+, Hybrid Log-Gamma (HLG) |
| Game mode | Yes |
| Subtitles function | Yes |
| Audio formats supported | AAC, AIF, AIFF, APE, FLAC, M4A, Mid, MIDI, MP3, OGG, WAV, WMA |
| Image formats supported | BMP, JPEG, JPG, MPO, PNG |
| Subtitle formats supported | ASS, SMI, SRT, SSA, SUB, TTXT, TXT, XML |
| Video formats supported | 3GP, ASF, AVI, FLV, M2TS, MKV, MOV, MP4, MPEG, MPG, MTS, SVI, TP, TRP, TS, VOB, VRO, WMV |
| Ambient light sensor | Yes |
| Eco sensor | Yes |
| Brightness detection | Yes |
| Picture processing technology | Crystal Processor 4K, Samsung Auto Motion Plus |
| Digital Clean View | Yes |
| Image gallery | Yes |
| Dialog enhancement | Yes |
| IPv6 support | Yes |
| Remote access | Yes |
| SmartThings app support | Yes |
| TV sound to mobile device | Yes |
| Tap view | Yes |
| V-chip function | Yes |
| MBR support | Yes |
| Parental control | Yes |
| ConnectShare (HDD) | Yes |
| ConnectShare (USB) | Yes |

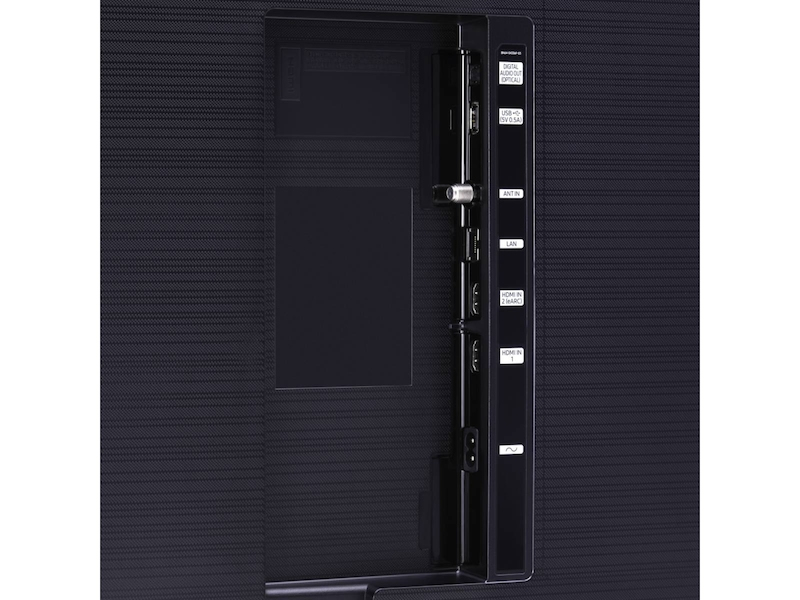

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI Quick Switch | Yes |
| Audio Return Channel (ARC) | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| Digital audio optical out | 1 |
| RF ports quantity | 1 |
| Consumer Electronics Control (CEC) | Anynet+ |
Management features
| Specification | Value |
|---|---|
| Control type | Remote |
| Voice control | Yes |
| Voice guide | Yes |
| Electronic Programme Guide (EPG) | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 3 |
| On Screen Display (OSD) languages | English, Spanish, French |
| Auto power off | Yes |
| Sleep timer | Yes |
| Works with Amazon Alexa | Yes |
| Works with Samsung Bixby | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 73 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 190 W |
| AC input voltage | 110 - 120 V |
| AC input frequency | 50/60 Hz |
| Energy saving mode | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| Samsung technologies (AV/TV) | Adaptive Sound, Contrast Enhancer |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1450 mm |
| Depth (with stand) | 284 mm |
| Height (with stand) | 904 mm |
| Weight (with stand) | 20.9 kg |
| Width (without stand) | 1450 mm |
| Depth (without stand) | 61 mm |
| Height (without stand) | 831 mm |
| Weight (without stand) | 20.6 kg |
| Stand width | 4.6 cm |
| Stand depth | 28.4 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1605 mm |
| Package depth | 183 mm |
| Package height | 963 mm |
| Package weight | 28.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Desktop stand | Yes |
| Remote control included | Yes |
| Remote control type | TM1240A |
| E-manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per intermodal container (40ft, HC) | 168 pc(s) |
Other features
| Specification | Value |
|---|---|
| PurColor | Yes |
| Batteries included | Yes |
| Boundless 360° design | Yes |
| Easy to install | Yes |
| Instant On | Yes |
