Series 9 TQ77S90CAT
195.6 cm (77") 4K Ultra HD Smart TV Wi-Fi Black
Model TQ77S90CATPart no. TQ77S90CATXXCEAN 8806094948967
105 specifications Checked today
- Display195.6 cm (77")
- Resolution3840 x 2160 pixels
- Energy classF
- OSTizen
- ColourBlack
- Tuner typeAnalog & digital
Overview
- Display
- 195.6 cm (77")
- Resolution
- 3840 x 2160 pixels
- Energy class
- F
- OS
- Tizen
- Colour
- Black
- Tuner type
- Analog & digital
- Brand
- Samsung
- Category
- TV
- Model
- TQ77S90CAT
- Part number
- TQ77S90CATXXC
- EAN / UPC
- 8806094948967
- Also known as
- Samsung Series 9 TQ77S90CAT 195.6 cm (77") 4K Ultra HD Smart TV Wi-Fi Black
Specifications
105 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 195.6 cm (77") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display technology | OLED |
| Screen shape | Flat |
| Native aspect ratio | 16:9 |
| Motion interpolation technology | Motion Xcelerator Turbo Pro |
| Native refresh rate | 120 Hz |
| Display refresh rates supported | 144 Hz |
| Anti-glare screen | Yes |
| Display diagonal (metric) | 195 cm |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | DVB-C, DVB-S2, DVB-T2 |
| Auto channel search | Yes |
Smart TV
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Internet TV | Yes |
| Operating system installed | Tizen |
| Timeshift | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) version | 2.0.3 |
| Universal guide | Yes |
| Video apps | Samsung TV Plus |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 2.1 channels |
| RMS rated power | 40 W |
| Audio decoders | Dolby Atmos |
| Active voice amplifier (AVA) | Yes |
| Adaptive sound+ | Yes |
| Audio pre-selection descriptor | Yes |
| Music wall | Yes |
| Q-Symphony | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ethernet LAN | Yes |
| Web browser | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 300 mm |
| Frameless design | Yes |
Performance
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10+ Gaming (HDR10 Plus Gaming), Hybrid Log-Gamma (HLG), Quantum HDR OLED plus |
| Game mode | Yes |
| Teletext function | Yes |
| Subtitles function | Yes |
| Ambient mode | Ambient Mode+ |
| Brightness detection | Yes |
| Colour detection | Yes |
| AI Upscale | Yes |
| TV key support | Yes |
| Picture processing technology | Neural Quantum Processor 4K |
| Noise reduction | Yes |
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium |
| Game features | Dynamic Black EQ, Game Bar, Game Motion Plus, HGiG, Super Ultra Wide Game View |
| Adaptive picture | Yes |
| Multi View | Yes |
| SmartThings app support | Yes |
| Tap view | Yes |
| Wireless Dex support | Yes |
| MBR support | Yes |
| USB recording | Yes |
| ConnectShare (HDD) | Yes |
| ConnectShare (USB) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 4 |
| PC in (D-Sub) | No |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| Digital audio optical out | 1 |
| Common interface (CI) | Yes |
| Common interface Plus (CI+) | Yes |
Management features
| Specification | Value |
|---|---|
| Voice guide | Yes |
| Electronic Programme Guide (EPG) | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 29 |
| Auto power off | Yes |
| Works with Samsung Bixby | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 117 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 460 W |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 117 kWh |
| Energy consumption (HDR) per 1000 hours | 188 kWh |
| AC input voltage | 220-240 V |
| AC input frequency | 50/60 Hz |
Brand-specific features
| Specification | Value |
|---|---|
| Samsung technologies (AV/TV) | Motion Xcelerator Turbo Pro |

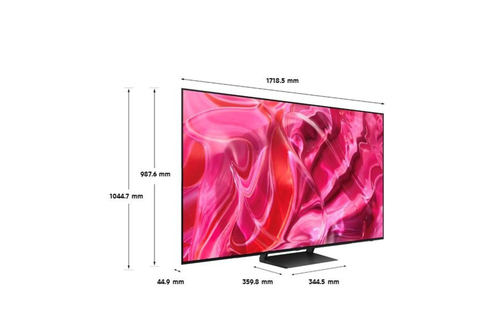

Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1718.5 mm |
| Depth (with stand) | 359.8 mm |
| Height (with stand) | 1058.9 mm |
| Weight (with stand) | 37.8 kg |
| Width (without stand) | 1718.5 mm |
| Depth (without stand) | 44.9 mm |
| Height (without stand) | 987.6 mm |
| Weight (without stand) | 35.1 kg |
| Stand width | 36.6 cm |
| Stand depth | 36 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1890 mm |
| Package depth | 192 mm |
| Package height | 1182 mm |
| Package weight | 49.1 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Remote control included | Yes |
| E-manual | Yes |
