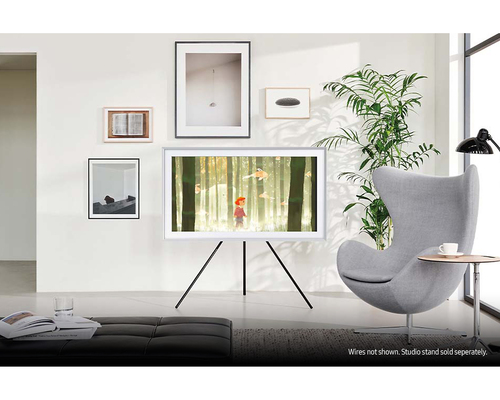

The Frame LS03B Disney100 Edition
Model The Frame LS03B Disney100 EditionPart no. QE65LS03BSUXXUEAN 8806095182940
142 specifications Checked today
- Display165.1 cm (65")
- Resolution3840 x 2160 pixels
- Energy classG
- OSTizen
- ColourBlack
- Tuner typeAnalog & digital
Overview
- Display
- 165.1 cm (65")
- Resolution
- 3840 x 2160 pixels
- Energy class
- G
- OS
- Tizen
- Colour
- Black
- Tuner type
- Analog & digital
- Brand
- Samsung
- Category
- TV
- Model
- The Frame LS03B Disney100 Edition
- Part number
- QE65LS03BSUXXU
- EAN / UPC
- 8806095182940
- Also known as
- Samsung Disney100 Edition - 65" The Frame LS03B Art Mode QLED 4K HDR Smart TV (2023)
Specifications
142 specifications in 16 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 165.1 cm (65") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display technology | QLED |
| Screen shape | Flat |
| Native aspect ratio | 16:9 |
| Motion interpolation technology | Auto Motion Plus |
| Native refresh rate | 100 Hz |
| Display refresh rates supported | 100 Hz |
| Display number of colours | 1 billion colours |
| Anti-glare screen | Yes |
| Display diagonal (metric) | 163 cm |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | DVB-T2, DVB-C, DVB-S2 |
Smart TV
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Internet TV | Yes |
| Operating system installed | Tizen |
| Timeshift | Yes |
| Screen mirroring | Yes |
| Sound mirroring | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) version | 2.0.3 (IT,GB,DE,CZ,SK,ES,PL,AT,FR,FI,EE,GR,SI,HR,BE,NL,LU,LT,HU,CH,PT,DK,ME)/MHEG 5(IE) |
| Smart modes | Filmmaker, Cinema |
| TV initiate mirroring | Yes |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 2.0.2 channels |
| RMS rated power | 40 W |
| Audio decoders | Dolby Atmos, Dolby Digital Plus |
| Active voice amplifier (AVA) | Yes |
| Adaptive sound+ | Yes |
| Audio pre-selection descriptor | Yes |
| Music wall | Yes |
| Multiroom | Yes |
| Multiroom audio technology | Samsung Multiroom Link |
| Enhanced Audio Return Channel (eARC) | Yes |
| Object Tracking Sound+ (OTS+) | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Web browser | Yes |
| HID support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 300 mm |
| Security update term | 31 December 2028 |
| Bezel type | VNB (Very Narrow Bezel) |
| Slim fit wall mount support | Yes |
| Stand colour | Black |
Performance
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Quantum HDR, High Dynamic Range 10+ Adaptive (HDR10 Plus Adaptive), High Dynamic Range 10+ Gaming (HDR10 Plus Gaming), Hybrid Log-Gamma (HLG) |
| Teletext function | Yes |
| Teletext standards | TTX |
| Subtitles function | Yes |
| Ambient mode | Yes |
| Eco sensor | Yes |
| Brightness detection | Yes |
| Colour detection | Yes |
| AI Upscale | Yes |
| Backlight dimming technology | Supreme UHD Dimming |
| Picture processing technology | Samsung Auto Motion Plus |
| Noise reduction | Yes |
| IPv6 support | Yes |
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium Pro |
| NVIDIA G-SYNC | No |
| Game features | Gaming Hub, HGiG, Game Motion Plus, Super Ultra Wide Game View, Mini Map Zoom, Dynamic Black EQ, Surround Sound |
| Multi View | Yes |
| SmartThings app support | Yes |
| TV sound to mobile device | Yes |
| Video upscaling | Yes |
| Wireless Dex support | Yes |
| ConnectShare (HDD) | Yes |
| ConnectShare (USB) | Yes |
| Multi View | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 4 |
| HDMI Quick Switch | Yes |
| Audio Return Channel (ARC) | Yes |
| PC in (D-Sub) | No |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Digital audio optical out | 1 |
| RS-232C ports | 1 |
| RF ports quantity | 2 |
| Common interface (CI) | Yes |
| Common interface Plus (CI+) | Yes |
| Common interface Plus (CI+) version | 1.4 |
| Consumer Electronics Control (CEC) | Anynet+ |
Management features
| Specification | Value |
|---|---|
| Voice guide | Yes |
| Electronic Programme Guide (EPG) | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 27 |
| Auto power off | Yes |
| Works with Amazon Alexa | Yes |
| Works with Samsung Bixby | Yes |
| Works with the Google Assistant | Yes |
| Universal Browse & Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 112 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 215 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 112 kWh |
| Energy consumption (HDR) per 1000 hours | 237 kWh |
| AC input voltage | 220-240 V |
| AC input frequency | 50/60 Hz |
| Energy saving mode | Yes |
| Energy efficiency scale | A to G |
Brand-specific features
| Specification | Value |
|---|---|
| Samsung technologies (AV/TV) | Real Depth Enhancer, Samsung TV Plus, Object Tracking Sound, Auto Game Mode (ALLM), Gaming Hub, Supreme UHD Dimming, Samsung Health, Smart Calibration, Built-in SmartThings Hub, Quantum Processor 4K, Wide Viewing Angle, Q-Symphony, FreeSync Premium Pro, Slim Wall Mount Kit Included, Mobile Tap Mirro |
Technical details
| Specification | Value |
|---|---|
| Other features | Enlarge / High Contrast / Multi-output Audio / SeeColors / Color Inversion / Grayscale / Sign Language Zoom / Slow Button Repeat / Graphic Zoom / Picture Off |
| Processor | Quantum Processor 4K |
| Supported display resolution (HDMI) | 4K 120Hz (for HDMI 4) |
| TV design | Brand new frame |

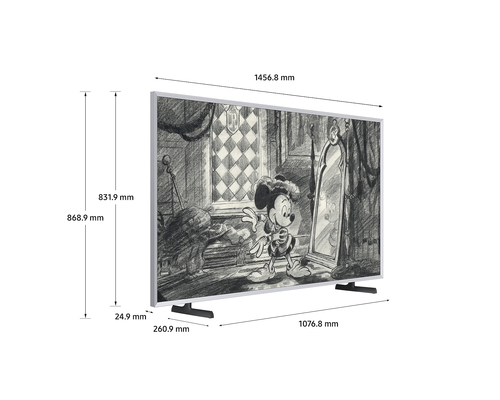

Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1456.8 mm |
| Depth (with stand) | 260.9 mm |
| Height (with stand) | 868.9 mm |
| Weight (with stand) | 22.8 kg |
| Width (without stand) | 1456.8 mm |
| Depth (without stand) | 24.9 mm |
| Height (without stand) | 831.9 mm |
| Weight (without stand) | 22.4 kg |
| Stand width | 107.7 cm |
| Stand depth | 26.1 cm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 1614 mm |
| Package depth | 191 mm |
| Package height | 996 mm |
| Package weight | 38 kg |
Packaging content
| Specification | Value |
|---|---|
| Desktop stand | Yes |
| Cables included | AC |
| Remote control included | Yes |
| Remote control type | TM2361E* UK TM1240A adding |
| Smart Remote included | Yes |
| E-manual | Yes |
Other features
| Specification | Value |
|---|---|
| Batteries included | Yes |
| HDMI | Yes |
| Picture mode | Film, Filmmaker |
| Instant On | Yes |
| Stand | SIMPLE |
