The Frame QN75LS03AAF
189.2 cm (74.5") 4K Ultra HD Smart TV Wi-Fi Black
Model QN75LS03AAFPart no. QN75LS03AAFXZAEAN 810077500514
115 specifications Checked today
- Display189.2 cm (74.5")
- Resolution3840 x 2160 pixels
- OSTizen
- ColourBlack
- Tuner typeAnalog & digital
- Smart TVYes
Overview
- Display
- 189.2 cm (74.5")
- Resolution
- 3840 x 2160 pixels
- OS
- Tizen
- Colour
- Black
- Tuner type
- Analog & digital
- Smart TV
- Yes
- Brand
- Samsung
- Category
- TV
- Model
- QN75LS03AAF
- Part number
- QN75LS03AAFXZA
- EAN / UPC
- 810077500514, 810077500521, 887276522616
- Also known as
- Samsung The Frame QN75LS03AAF 189.2 cm (74.5") 4K Ultra HD Smart TV Wi-Fi Black
Specifications
115 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 189.2 cm (74.5") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display technology | QLED |
| LED backlight | Yes |
| Screen shape | Flat |
| Native aspect ratio | 16:9 |
| Screen format adjustments | 16:9 |
| Motion interpolation technology | Motion Rate 240 |
| Dynamic contrast ratio marketing name | Mega Contrast |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | ATSC |
| Auto channel search | Yes |
Smart TV
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Operating system installed | Tizen |
| Operating system version | Tizen™ Smart TV |
| Screen mirroring | Yes |
| Sound mirroring | Yes |
| Smart modes | Filmmaker, Natural |
| TV initiate mirroring | Yes |
| Universal guide | Yes |
| Video apps | Samsung TV Plus |
Audio
| Specification | Value |
|---|---|
| RMS rated power | 40 W |
| Audio decoders | Dolby Digital, Dolby Digital Plus |
| Active voice amplifier (AVA) | Yes |
| Adaptive sound | Yes |
| Music wall | Yes |
| Q-Symphony | Yes |
| Multiroom | Yes |
| Multiroom audio technology | Samsung Multiroom Link |
| Enhanced Audio Return Channel (eARC) | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Web browser | Yes |
| HID support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| On/off switch | Yes |
| Frameless design | Yes |
| Bezel type | VNB (Very Narrow Bezel) |
| Mini wall mount support | Yes |
| Stand type | Legs stand |
| Stand colour | Black |
Performance
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Hybrid Log-Gamma (HLG), Quantum HDR, High Dynamic Range 10+ (HDR10 Plus) |
| Game mode | Yes |
| Subtitles function | Yes |
| Ambient light sensor | Yes |
| Ambient mode | Yes |
| Picture processing technology | Samsung Auto Motion Plus, Samsung Contrast Enhancer |
| Digital Clean View | Yes |
| Dialog enhancement | Yes |
| IPv6 support | Yes |
| Game features | Game Bar, Super Ultra Wide Game View, Game Motion Plus |
| 360 camera support | Yes |
| 360 video player support | Yes |
| Adaptive picture | Yes |
| SmartThings app support | Yes |
| Tap view | Yes |
| Wireless Dex support | Yes |
| MBR support | Yes |
| Parental control | Yes |
| ConnectShare (HDD) | Yes |
| ConnectShare (USB) | Yes |

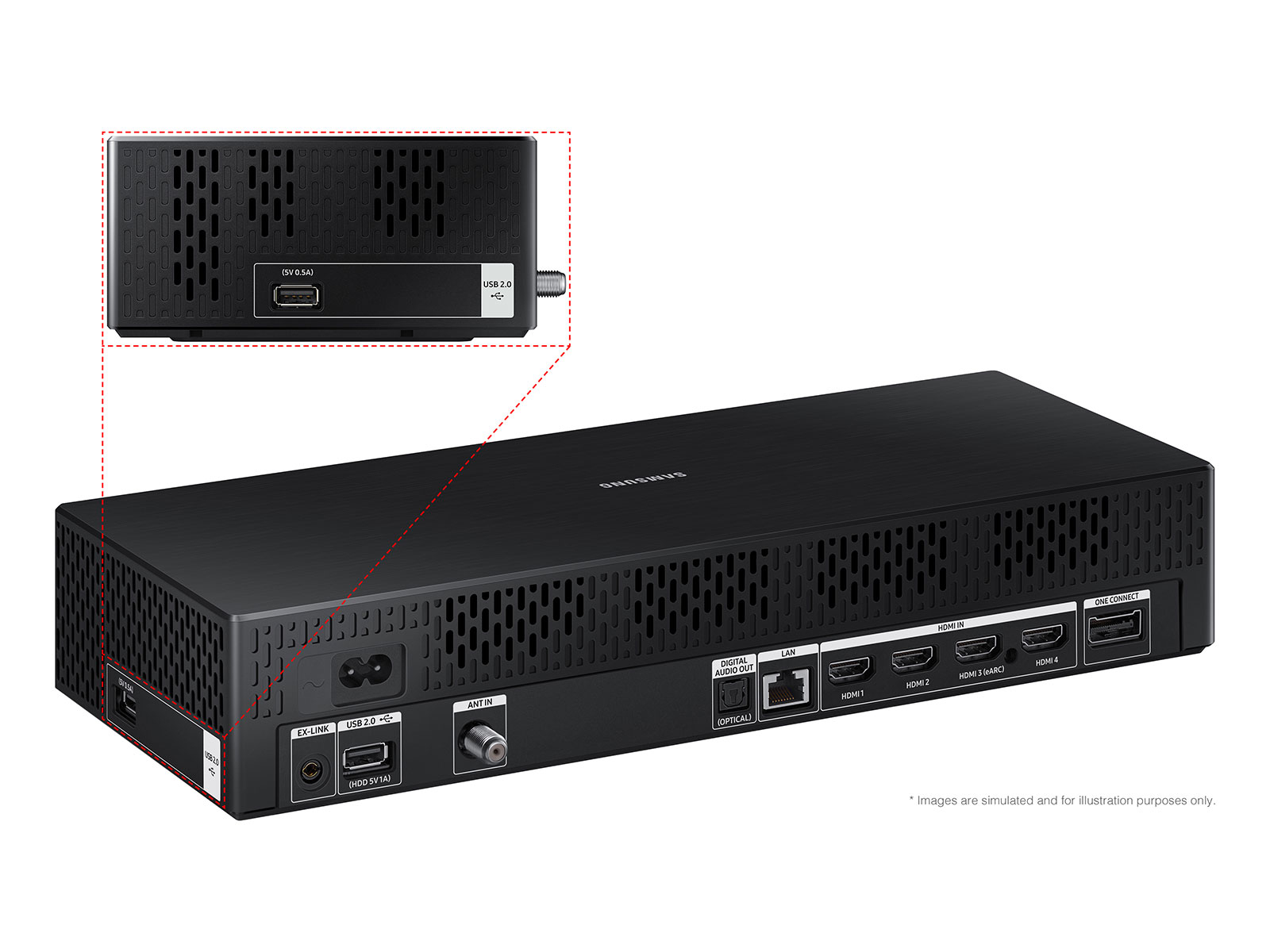

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 4 |
| HDMI Quick Switch | Yes |
| Audio Return Channel (ARC) | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| Digital audio optical out | 1 |
| RS-232C ports | 1 |
| RF ports quantity | 1 |
| AC (power) in | Yes |
| Consumer Electronics Control (CEC) | Anynet+ |
Management features
| Specification | Value |
|---|---|
| Voice guide | Yes |
| Electronic Programme Guide (EPG) | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 3 |
| On Screen Display (OSD) languages | English, Spanish, French |
| Auto power off | Yes |
| Works with Amazon Alexa | Yes |
| Works with Samsung Bixby | Yes |
| Works with the Google Assistant | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 113 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 290 W |
| AC input voltage | 110 - 120 V |
| AC input frequency | 50/60 Hz |
| Energy saving mode | Yes |

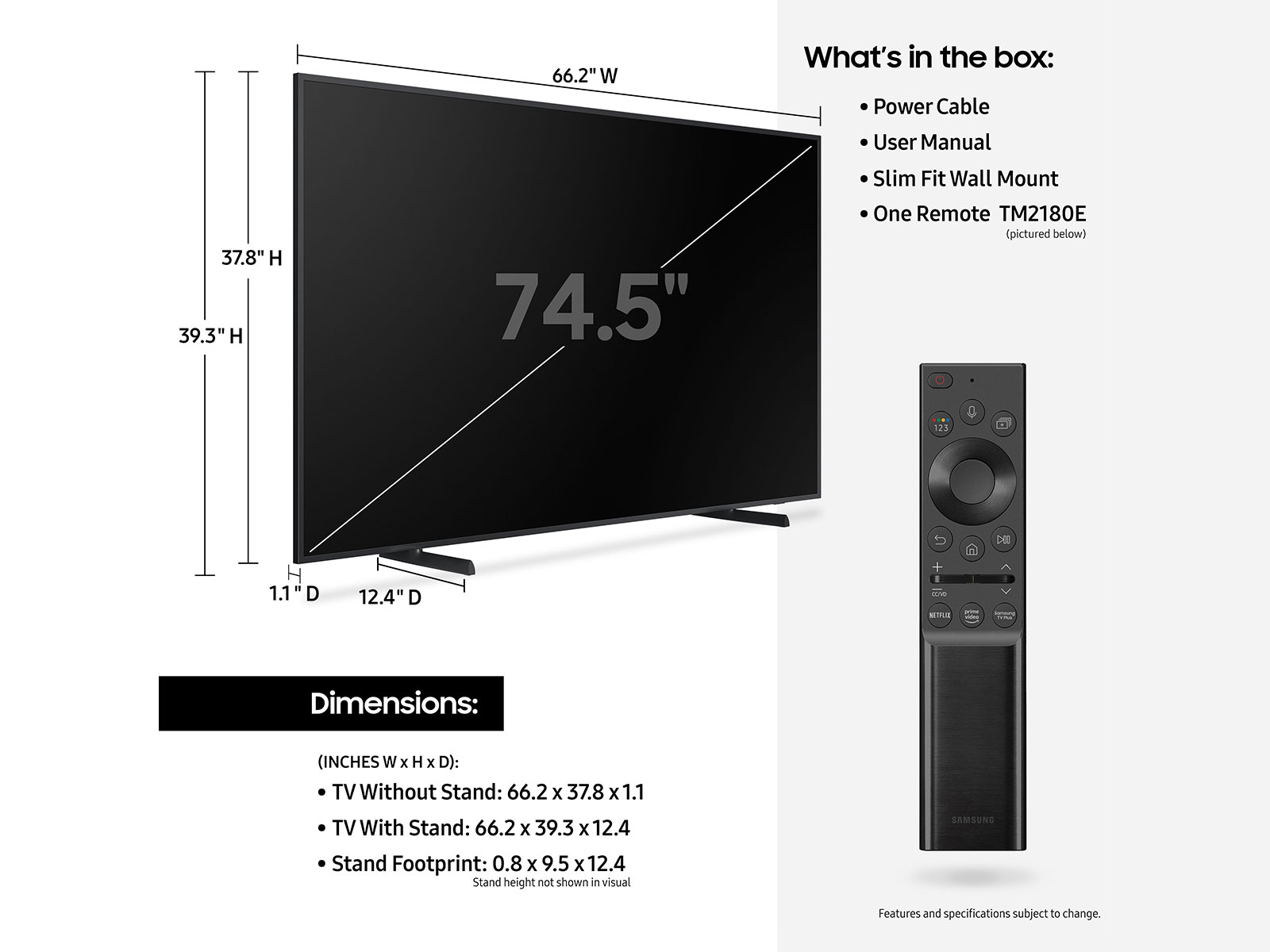

Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1681.5 mm |
| Depth (with stand) | 315 mm |
| Height (with stand) | 998.2 mm |
| Weight (with stand) | 35.6 kg |
| Width (without stand) | 1681.5 mm |
| Depth (without stand) | 27.9 mm |
| Height (without stand) | 960.1 mm |
| Weight (without stand) | 35 kg |
| Stand width | 2.03 cm |
| Stand depth | 31.5 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1839 mm |
| Package depth | 205.7 mm |
| Package height | 1112.5 mm |
| Package weight | 50.4 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Desktop stand | Yes |
| Mounting kit | Yes |
| Cables included | AC |
| Remote control included | Yes |
| Remote control type | TM2180E |
| E-manual | Yes |
