Series 7 QE65Q77BATXXN TV
165.1 cm (65") 4K Ultra HD Smart TV Wi-Fi Grey, Titanium
Model QE65Q77BATXXN
108 specifications Checked today
- Display165.1 cm (65")
- Resolution3840 x 2160 pixels
- Energy classF
- OSTizen
- ColourGrey, Titanium
- Tuner typeAnalog & digital
Overview
- Display
- 165.1 cm (65")
- Resolution
- 3840 x 2160 pixels
- Energy class
- F
- OS
- Tizen
- Colour
- Grey, Titanium
- Tuner type
- Analog & digital
- Brand
- Samsung
- Category
- TV
- Model
- QE65Q77BATXXN
- Part number
- QE65Q77BATXXN
- Also known as
- Samsung Series 7 QE65Q77BATXXN TV 165.1 cm (65") 4K Ultra HD Smart TV Wi-Fi Grey, Titanium
Specifications
108 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 165.1 cm (65") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display technology | QLED |
| LED backlight | Yes |
| LED backlighting type | Dual LED |
| Backlight marketing name | Dual LED |
| Screen shape | Flat |
| Native aspect ratio | 16:9 |
| Motion interpolation technology | Motion Xcelerator Turbo+ |
| Native refresh rate | 100 Hz |
| Display number of colours | 1 billion colours |
| Anti-glare screen | Yes |
| Display diagonal (metric) | 163 cm |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | DVB-C, DVB-S2, DVB-T2 |
| Number of tuners | 2 tuner(s) |
| Auto channel search | Yes |

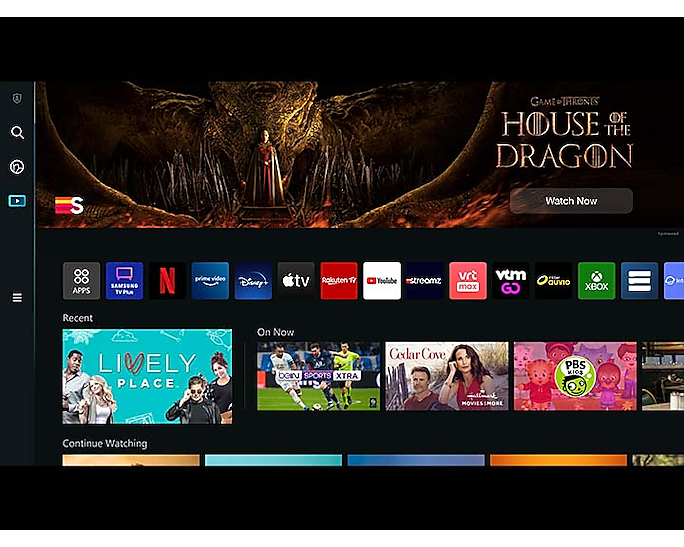

Smart TV
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Internet TV | Yes |
| Operating system installed | Tizen |
| Sound mirroring | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) | Yes |
| Hybrid Broadcast Broadband TV (HbbTV) version | 2.0.3 |
| Video apps | Samsung TV Plus |
Audio
| Specification | Value |
|---|---|
| RMS rated power | 20 W |
| Audio decoders | Dolby Digital, Dolby Digital Plus |
| Active voice amplifier (AVA) | Yes |
| Q-Symphony | Yes |
| Multiroom audio technology | Samsung Multiroom Link |
| Enhanced Audio Return Channel (eARC) | Yes |
| Object Tracking Sound+ (OTS+) | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| Web browser | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Grey, Titanium |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 300 mm |
| LED indicators | Diagnostic |

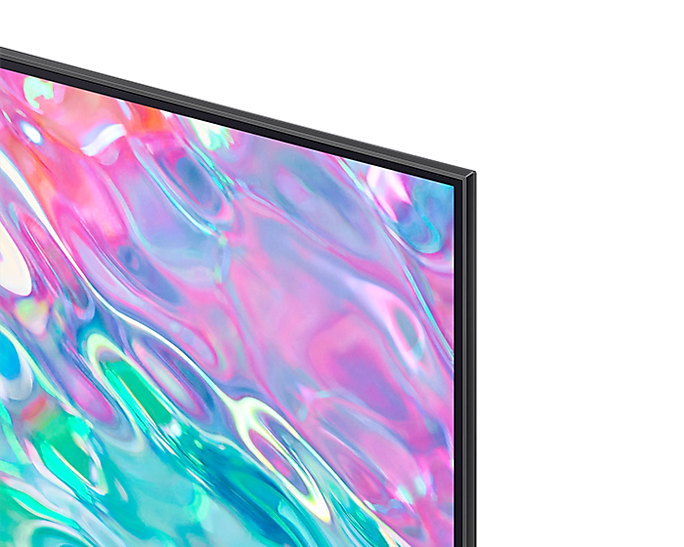

| Bezel type | 3 Bezel-less |
Performance
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG), Quantum HDR |
| Game mode | Yes |
| Teletext function | Yes |
| Ambient mode | Ambient Mode+ |
| Eco sensor | Yes |
| Brightness detection | Yes |
| Colour detection | Yes |
| AI Upscale | Yes |
| TV key support | Yes |
| Noise reduction | Yes |
| IPv6 support | Yes |
| NVIDIA G-SYNC | No |
| Game features | Auto Low Latency Mode (ALLM), Dynamic Black EQ, Game Motion Plus, HGiG, Super Ultra Wide Game View |
| 360 camera support | Yes |
| 360 video player support | Yes |
| Multi View | Yes |
| SmartThings app support | Yes |
| Tap view | Yes |
| Wireless Dex support | Yes |
| ConnectShare (HDD) | Yes |
| ConnectShare (USB) | Yes |

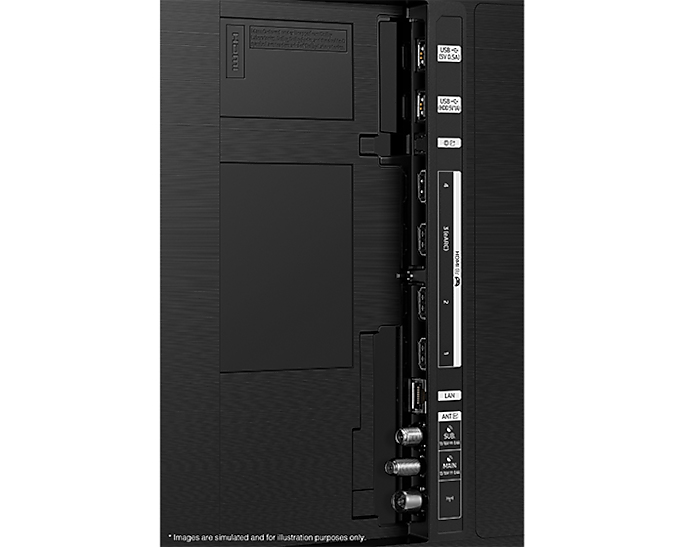

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 4 |
| HDMI Quick Switch | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| Digital audio optical out | 1 |
| RS-232C ports | 0 |
| RF ports quantity | 4 |
| Common interface (CI) | Yes |
| Common interface Plus (CI+) | Yes |
| Common interface Plus (CI+) version | 1.4 |
| Consumer Electronics Control (CEC) | Anynet+ |
Management features
| Specification | Value |
|---|---|
| Electronic Programme Guide (EPG) | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 28 |
| Picture-in-Picture | Yes |
| Auto power off | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 96 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 245 W |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 96 kWh |
| Energy consumption (HDR) per 1000 hours | 219 kWh |
| AC input voltage | 220-240 V |
| AC input frequency | 50/60 Hz |
| Energy saving mode | Yes |
| Energy efficiency scale | A to G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1451.7 mm |
| Depth (with stand) | 285.6 mm |
| Height (with stand) | 900.4 mm |
| Weight (with stand) | 24.3 kg |
| Width (without stand) | 1451.7 mm |
| Depth (without stand) | 25.7 mm |
| Height (without stand) | 831.8 mm |
| Weight (without stand) | 21.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1623 mm |
| Package depth | 205 mm |
| Package height | 950 mm |
| Package weight | 31.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | TM2280E(+TM1240A for UK) |
Other features
| Specification | Value |
|---|---|
| One Connect box | No |
