Samsung Series 8 QE55Q80CATXXH TV

Series 8 QE55Q80CATXXH TV

139.7 cm (55") 4K Ultra HD Smart TV Wi-Fi Grey

Model QE55Q80CATXXHEAN 8806094897371

110 specifications Checked today

Display139.7 cm (55")
Resolution3840 x 2160 pixels
Energy classG
OSTizen
ColourGrey
Tuner typeAnalog & digital

See all specifications

Overview

Display: 139.7 cm (55")
Resolution: 3840 x 2160 pixels
Energy class: G
OS: Tizen
Colour: Grey
Tuner type: Analog & digital

Brand: Samsung
Category: TV
Model: QE55Q80CATXXH
Part number: QE55Q80CATXXH
EAN / UPC: 8806094897371
Also known as: Samsung Series 8 QE55Q80CATXXH TV 139.7 cm (55") 4K Ultra HD Smart TV Wi-Fi Grey

Specifications

110 specifications in 14 groups

Display

Specification	Value
Display diagonal	139.7 cm (55")
HD type	4K Ultra HD
Display resolution	3840 x 2160 pixels
Display technology	QLED
Screen shape	Flat
Native aspect ratio	16:9
Motion interpolation technology	Motion Xcelerator Turbo+
Native refresh rate	100 Hz
Display number of colours	1 billion colours
Display diagonal (metric)	138 cm

TV tuner

Specification	Value
Tuner type	Analog & digital
Digital signal format system	DVB-CS2, DVB-T2, DVB-C, DVB-S2
Number of tuners	2 tuner(s)

Smart TV

Specification	Value
Smart TV	Yes
Internet TV	Yes
Operating system installed	Tizen
Sound mirroring	Yes
Smart modes	Filmmaker, Game
TV initiate mirroring	Yes
Universal guide	Yes
Video apps	Samsung TV Plus

Audio

Specification	Value
Audio output channels	2.2 channels
RMS rated power	40 W
Built-in subwoofer	Yes
Audio decoders	Dolby Atmos
Active voice amplifier (AVA)	Yes
Music wall	Yes
Q-Symphony	Yes
Multiroom	Yes
Multiroom audio technology	Samsung Multiroom Link
Enhanced Audio Return Channel (eARC)	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.2
Ethernet LAN	Yes

Design

Specification	Value
Product colour	Grey
VESA mounting	Yes
Panel mounting interface	200 x 200 mm

Performance

Specification	Value
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Hybrid Log-Gamma (HLG), Neo Quantum HDR+
Game mode	Yes
Teletext function	Yes
Ambient mode	Ambient Mode+
Eco sensor	Yes
AI Upscale	Yes
Picture processing technology	Neural Quantum Processor 4K
AMD FreeSync	Yes
AMD FreeSync type	FreeSync Premium Pro
Game features	Game Motion Plus
Multi View	Yes
SmartThings app support	Yes
Tap view	Yes
Wireless Dex support	Yes
MBR support	Yes
USB recording	No
ConnectShare (HDD)	Yes
ConnectShare (USB)	Yes

Ports & interfaces

Specification	Value
HDMI ports quantity	4
Audio Return Channel (ARC)	Yes
PC in (D-Sub)	No
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
Digital audio optical out	1
RF ports quantity	1
Common interface (CI)	Yes
Common interface Plus (CI+)	Yes
Common interface Plus (CI+) version	1.4
AC (power) in	Yes
Consumer Electronics Control (CEC)	Anynet+

Management features

Specification	Value
Control type	Wireless
Voice guide	Yes
Electronic Programme Guide (EPG)	Yes
On Screen Display (OSD)	Yes
Number of OSD languages	27
Auto power off	Yes
Works with Amazon Alexa	Yes
Works with Samsung Bixby	Yes

Power

Specification	Value
Power consumption (typical)	84 W
Power consumption (standby)	0.5 W
Power consumption (max)	245 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	84 kWh
Energy consumption (HDR) per 1000 hours	236 kWh
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy saving mode	Yes
Energy efficiency scale	A to G

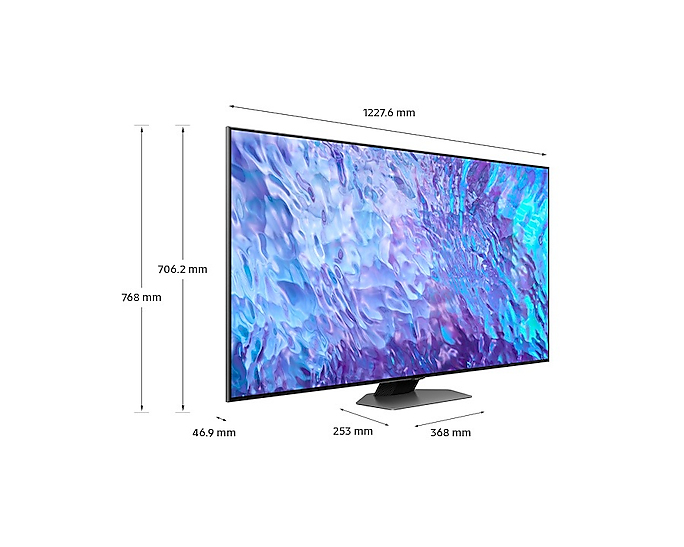

Weight & dimensions

Specification	Value
Width (with stand)	1227.6 mm
Depth (with stand)	253 mm
Height (with stand)	768 mm
Weight (with stand)	19.8 kg
Width (without stand)	1227 mm
Depth (without stand)	46.9 mm
Height (without stand)	706.2 mm
Weight (without stand)	17.1 kg
Stand width	36.8 cm
Stand depth	25.3 cm

Packaging data

Specification	Value
Package width	1445 mm
Package depth	827 mm
Package height	170 mm
Package weight	24.4 kg
Package type	Box

Packaging content

Specification	Value
Cables included	AC
Remote control included	Yes
Remote control type	TM2360E (UK+ TM1240A)

Other features

Specification	Value
One Connect box	Yes
One Connect box type	One Connect (Y22 4K)
One Connect cable support	Yes
