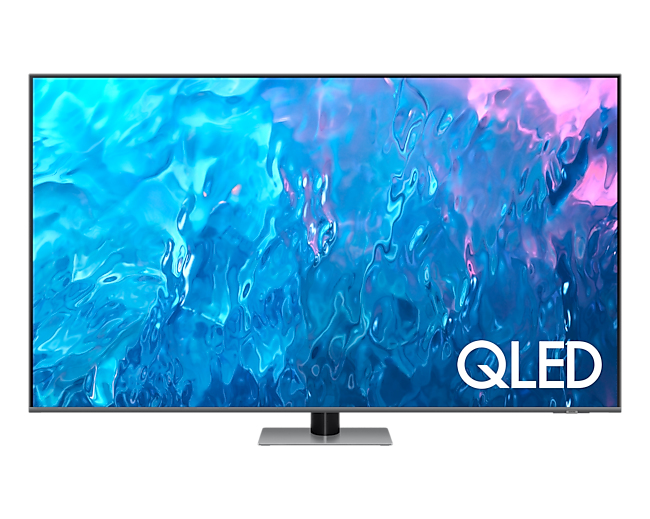

Samsung Q70C QE55Q77CATXXH TV

Q70C QE55Q77CATXXH TV

139.7 cm (55") 4K Ultra HD Smart TV Wi-Fi Grey

Model QE55Q77CATXXH

116 specifications Checked today

Display139.7 cm (55")
Resolution3840 x 2160 pixels
Energy classG
OSTizen
ColourGrey
Tuner typeAnalog & digital

See all specifications

Overview

Display: 139.7 cm (55")
Resolution: 3840 x 2160 pixels
Energy class: G
OS: Tizen
Colour: Grey
Tuner type: Analog & digital

Brand: Samsung
Category: TV
Model: QE55Q77CATXXH
Part number: QE55Q77CATXXH
Also known as: Samsung Q70C QE55Q77CATXXH TV 139.7 cm (55") 4K Ultra HD Smart TV Wi-Fi Grey

Specifications

116 specifications in 16 groups

Display

Specification	Value
Display diagonal	139.7 cm (55")
HD type	4K Ultra HD
Display resolution	3840 x 2160 pixels
Display technology	QLED
Screen shape	Flat
Native aspect ratio	16:9
Native refresh rate	100 Hz
Display number of colours	1 billion colours
Display diagonal (metric)	138 cm

TV tuner

Specification	Value
Tuner type	Analog & digital
Digital signal format system	DVB-C, DVB-S2, DVB-T2
Number of tuners	2 tuner(s)

Smart TV

Specification	Value
Smart TV	Yes
Internet TV	Yes
Operating system installed	Tizen
Timeshift	Yes
Sound mirroring	Yes
Smart modes	Energy saving, Filmmaker, Game, Movie
Far-field voice interaction	Yes
TV initiate mirroring	Yes
Universal guide	Yes
Video apps	Samsung TV Plus

Audio

Specification	Value
Number of speakers	2
Audio output channels	2.0 channels
RMS rated power	20 W
Built-in subwoofer	No
Active voice amplifier (AVA)	Yes
Adaptive sound+	Yes
Audio pre-selection descriptor	Yes
Music wall	Yes
Q-Symphony	Yes
Multiroom	Yes
Enhanced Audio Return Channel (eARC)	Yes
Object Tracking Sound+ (OTS+)	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.2
Ethernet LAN	Yes
Browsing	Yes
Web browser	Yes

Design

Specification	Value
Product colour	Grey
Colour name	Titan Gray
VESA mounting	Yes
Panel mounting interface	200 x 200 mm
LED indicators	Yes
Stand type	Center stand
Stand colour	Silver

Performance

Specification	Value
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG)
Teletext function	Yes
Subtitles function	Yes
Ambient light sensor	Yes
Ambient mode	Ambient Mode+
AI Upscale	Yes
TV key support	Yes
Picture processing technology	Quantum Processor 4K, Samsung Contrast Enhancer
AMD FreeSync	Yes
AMD FreeSync type	FreeSync Premium Pro
NVIDIA G-SYNC	No
Game features	Surround Sound, Gaming Hub, Mini Map Zoom, Auto Low Latency Mode (ALLM), Dynamic Black EQ, Game Motion Plus, HGiG, Super Ultra Wide Game View
SmartThings app support	Yes
TV sound to mobile device	Yes
Wireless Dex support	Yes
MBR support	Yes
Multi View	2

Ports & interfaces

Specification	Value
HDMI ports quantity	4
Audio Return Channel (ARC)	Yes
PC in (D-Sub)	No
Ethernet LAN (RJ-45) ports	1
Digital audio optical out	1
RF ports quantity	2
Common interface (CI)	Yes
Common interface Plus (CI+)	Yes
Common interface Plus (CI+) version	1.4
Consumer Electronics Control (CEC)	Anynet+

Management features

Specification	Value
Voice guide	Yes
Electronic Programme Guide (EPG)	Yes
On Screen Display (OSD)	Yes
Number of OSD languages	27
Picture-in-Picture	Yes
Auto power off	Yes
Works with Amazon Alexa	Yes
Works with Samsung Bixby	Yes

Power

Specification	Value
Power consumption (typical)	82 W
Power consumption (standby)	0.5 W
Power consumption (max)	205 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	82 kWh
Energy consumption (HDR) per 1000 hours	169 kWh
AC input voltage	220 - 240 V
AC input frequency	50/60 Hz
Energy saving mode	Yes
Energy efficiency scale	A to G

Brand-specific features

Specification	Value
Samsung technologies (AV/TV)	Motion Xcelerator Turbo Plus, Ultimate UHD Dimming

Technical details

Specification	Value
Screen TV transmission to mobile device	Yes

Weight & dimensions

Specification	Value
Width (with stand)	1232.9 mm
Depth (with stand)	246.5 mm
Height (with stand)	778.3 mm
Weight (with stand)	18.4 kg
Width (without stand)	1232.9 mm
Depth (without stand)	25.7 mm
Height (without stand)	708.7 mm
Weight (without stand)	16.1 kg

Packaging data

Specification	Value
Package width	1424 mm
Package depth	191 mm
Package height	846 mm
Package weight	24.6 kg

Packaging content

Specification	Value
Desktop stand	Yes
Mounting kit	Yes
Cables included	AC
Remote control included	Yes
Remote control type	IR

Other features

Specification	Value
Built-in processor	Yes
Smart calibration	Yes
