Samsung HG40NB690QF 101.6 cm (40") Full HD Smart TV Black 350 cd/m²

HG40NB690QF 101.6 cm (40") Full HD Smart TV Black 350 cd/m²

Model HG40NB690QFPart no. HG40NB690QFXZAEAN 887276025599

82 specifications Checked today

Display101.6 cm (40")
Resolution1920 x 1080 pixels
ColourBlack
Tuner typeAnalog & digital
Smart TVYes
Number of speakers2

See all specifications

Overview

Display: 101.6 cm (40")
Resolution: 1920 x 1080 pixels
Colour: Black
Tuner type: Analog & digital
Smart TV: Yes
Number of speakers: 2

Brand: Samsung
Category: TV
Model: HG40NB690QF
Part number: HG40NB690QFXZA
EAN / UPC: 887276025599, 8806085688681
Also known as: Samsung HG40NB690QF 101.6 cm (40") Full HD Smart TV Black 350 cd/m²

Specifications

82 specifications in 15 groups

Display

Specification	Value
Display diagonal	101.6 cm (40")
HD type	Full HD
Display resolution	1920 x 1080 pixels
Display technology	LED
LED backlighting type	Direct-lit LED
Backlight marketing name	Direct-lit LED
Display brightness	350 cd/m²
Response time	8 ms
Motion interpolation technology	CMR (Clear Motion Rate) 120
Contrast ratio (typical)	5000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°

TV tuner

Specification	Value
Tuner type	Analog & digital
Digital signal format system	ATSC
Auto channel search	Yes

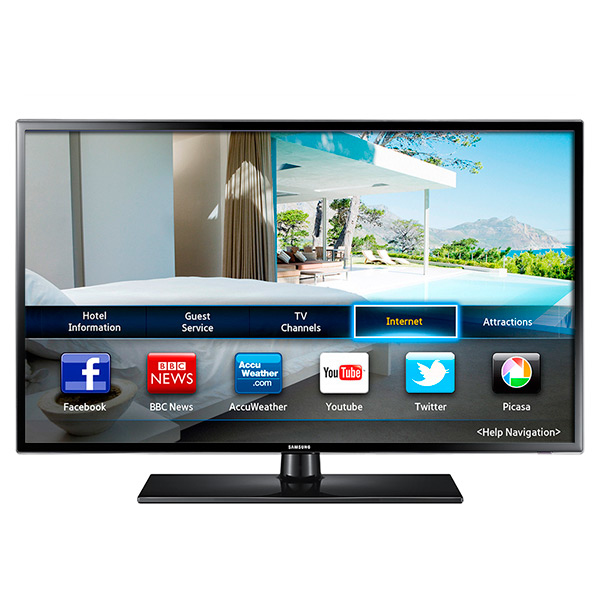

Smart TV

Specification	Value
Smart TV	Yes
Internet TV	No

Audio

Specification	Value
Number of speakers	2
RMS rated power	20 W
Built-in subwoofer	No
Auto volume leveller	Yes
Audio system	SRS TheaterSound HDTM

Network

Specification	Value
Wi-Fi	No
Ethernet LAN	Yes

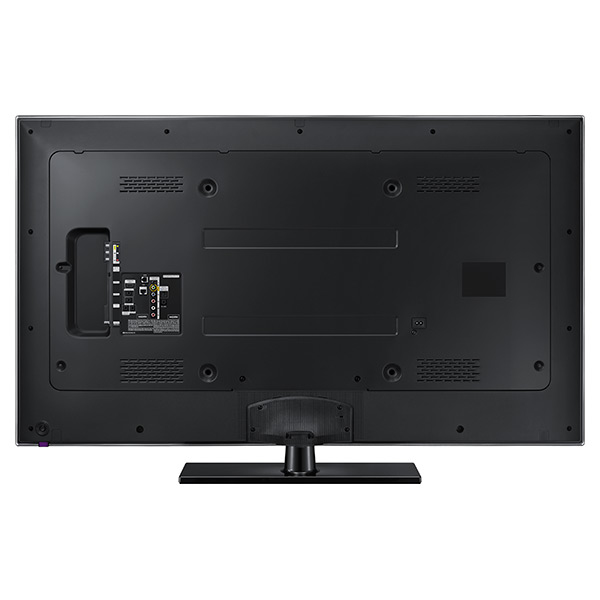

Design

Specification	Value
Product colour	Black
VESA mounting	Yes
Panel mounting interface	200 x 200 mm
Swivel angle range	20 - 90°

Performance

Specification	Value
Game mode	Yes
Backlight dimming technology	Local Dimming
BD Wise	Yes
DVD player	No

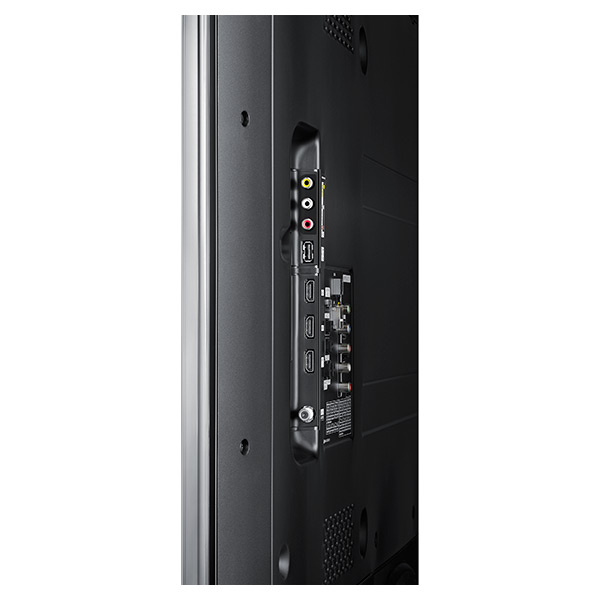

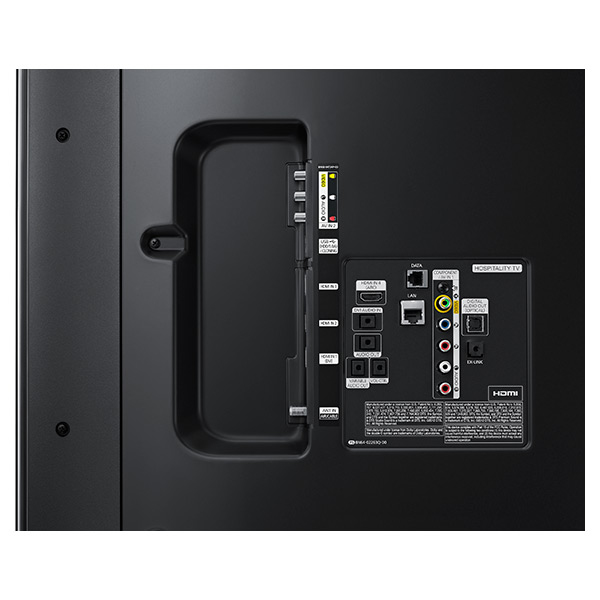

Ports & interfaces

Specification	Value
HDMI ports quantity	4
HDMI version	1.4a
PC in (D-Sub)	No
DVI port	No
DVI-D ports quantity	0
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Component video (YPbPr/YCbCr) in	1
Composite video in	1
Digital audio optical out	1
Headphone outputs	1
Common interface (CI)	No
Common interface Plus (CI+)	No
S-Video inputs quantity	0
Card reader integrated	No
Consumer Electronics Control (CEC)	Anynet+

Management features

Specification	Value
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	English, Spanish, French
Picture-in-Picture	Yes
Auto power off	Yes
Sleep timer	Yes

Power

Specification	Value
Power consumption (typical)	52 W
Power consumption (standby)	0.5 W
Power consumption (max)	138 W
AC input voltage	110 - 120 V
AC input frequency	50 - 60 Hz

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Width (with stand)	928.2 mm
Depth (with stand)	227.7 mm
Height (with stand)	612 mm
Weight (with stand)	12.2 kg
Width (without stand)	928.2 mm
Depth (without stand)	49.6 mm
Height (without stand)	543.8 mm
Weight (without stand)	9.3 kg

Packaging data

Specification	Value
Quick start guide	Yes
Package width	1125 mm
Package depth	152 mm
Package height	616 mm
Package weight	14.7 kg

Packaging content

Specification	Value
Mounting kit	Yes
Cables included	AC
Remote control included	Yes

Other features

Specification	Value
RJ-12 ports quantity	1
3D	Yes
Batteries included	Yes
Built-in speaker(s)	Yes
Supported 3D technologies	Samsung 3D HyperReal Engine
Swivelling	Yes
