HG40ED690DB TV
101.6 cm (40") Full HD Smart TV Wi-Fi Black 300 cd/m²
Model HG40ED690DB
92 specifications Checked today
- Display101.6 cm (40")
- Resolution1920 x 1080 pixels
- Energy classA+
- ColourBlack
- Tuner typeAnalog & digital
- Smart TVYes
Overview
- Display
- 101.6 cm (40")
- Resolution
- 1920 x 1080 pixels
- Energy class
- A+
- Colour
- Black
- Tuner type
- Analog & digital
- Smart TV
- Yes
- Brand
- Samsung
- Category
- TV
- Model
- HG40ED690DB
- Part number
- HG40ED690DB
- Also known as
- Samsung HG40ED690DB TV 101.6 cm (40") Full HD Smart TV Wi-Fi Black 300 cd/m²
Specifications
92 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 101.6 cm (40") |
| HD type | Full HD |
| Display resolution | 1920 x 1080 pixels |
| Screen shape | Flat |
| Display brightness | 300 cd/m² |
| Response time | 8 ms |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | DVB-C, DVB-S2, DVB-T2 |
| Auto channel search | Yes |
Smart TV
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Smart modes | Game, Movie, Music, Sports |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 20 W |
| Audio decoders | DTS, DTS Premium Sound 5.1, DTS Studio Sound |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Browsing | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| On/off switch | Yes |
| Swivel angle range | -90 - 90° |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Game mode | Yes |
| Teletext function | Yes |
| External clock dimming control | Yes |
| Picture processing technology | Samsung Wide Color Enhancer |
| External clock compatibility | Yes |
| USB cloning | Yes |

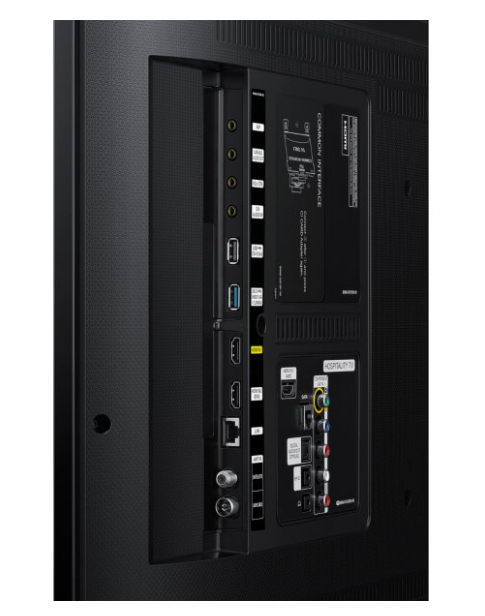

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| HDMI version | 1.4 |
| Audio Return Channel (ARC) | Yes |
| PC in (D-Sub) | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| Digital audio optical out | 1 |
| Headphone outputs | 1 |
| RS-232 ports | 1 |
| RF ports quantity | 1 |
| Common interface (CI) | Yes |
| Consumer Electronics Control (CEC) | Anynet+ |
Management features
| Specification | Value |
|---|---|
| Voice control | Yes |
| Electronic Programme Guide (EPG) | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 27 |
| Picture-in-Picture | Yes |
| Auto power off | Yes |
| Music mode backlight on/off | Yes |
| Smoovie compatibility | Yes |
| On/Off timer | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Screwed battery cover | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 26 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 111 W |
| AC input voltage | 220 - 240 V |
| Energy saving mode | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 906.6 mm |
| Depth (with stand) | 226.5 mm |
| Height (with stand) | 577.6 mm |
| Weight (with stand) | 10.7 kg |
| Width (without stand) | 906.6 mm |
| Depth (without stand) | 65.1 mm |
| Height (without stand) | 532.9 mm |
| Weight (without stand) | 7.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Package weight | 12.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Remote control included | Yes |
| Remote control type | TM1240 |
Other features
| Specification | Value |
|---|---|
| RJ-12 ports quantity | 1 |
| Batteries included | Yes |
| Built-in speaker(s) | Yes |
| H.Browser compatibility | Yes |
| Swivelling | Yes |
| LYNK DRM supported | Yes |
| LYNK REACH server compatibility | Yes |
| LYNK SINC server compatibility | Yes |
| Auto source mode | Yes |
| Digital Living Network Alliance (DLNA) certified | Yes |
| Energy efficiency class (legacy scale) | A+ |
| Power on mode | Yes |
| Clock function | Yes |
| Software clock | Yes |
| Logo display with time-out setting (BMP/movie) | Yes |
| My Channel function | Yes |
| Security mode | Yes |
| Soundbar compatibility | Yes |
