HG40EC690DB 101.6 cm (40") Full HD Smart TV Wi-Fi Black 350 cd/m²
Model HG40EC690DBPart no. HG40EC690DBXXCEAN 8806086010016
76 specifications Checked today
- Display101.6 cm (40")
- Resolution1920 x 1080 pixels
- Energy classA+
- ColourBlack
- Tuner typeAnalog & digital
- Smart TVYes
Overview
- Display
- 101.6 cm (40")
- Resolution
- 1920 x 1080 pixels
- Energy class
- A+
- Colour
- Black
- Tuner type
- Analog & digital
- Smart TV
- Yes
- Brand
- Samsung
- Category
- TV
- Model
- HG40EC690DB
- Part number
- HG40EC690DBXXC
- EAN / UPC
- 8806086010016
- Also known as
- Samsung HG40EC690DB 101.6 cm (40") Full HD Smart TV Wi-Fi Black 350 cd/m²
Specifications
76 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 101.6 cm (40") |
| HD type | Full HD |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LED |
| LED backlighting type | Direct-LED |
| Screen shape | Flat |
| Display brightness | 350 cd/m² |
| Response time | 8 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | DVB-C, DVB-S2, DVB-T2 |
| Auto channel search | Yes |
Smart TV
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Internet TV | Yes |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 20 W |
| Audio decoders | Dolby Digital, DTS, Dolby Digital Plus, Dolby Digital Pulse, DTS Premium Sound 5.1, DTS Studio Sound |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| On/off switch | Yes |
Performance
| Specification | Value |
|---|---|
| Teletext function | Yes |
| Picture processing technology | Samsung Wide Color Enhancer |
| Plug and Play | Yes |

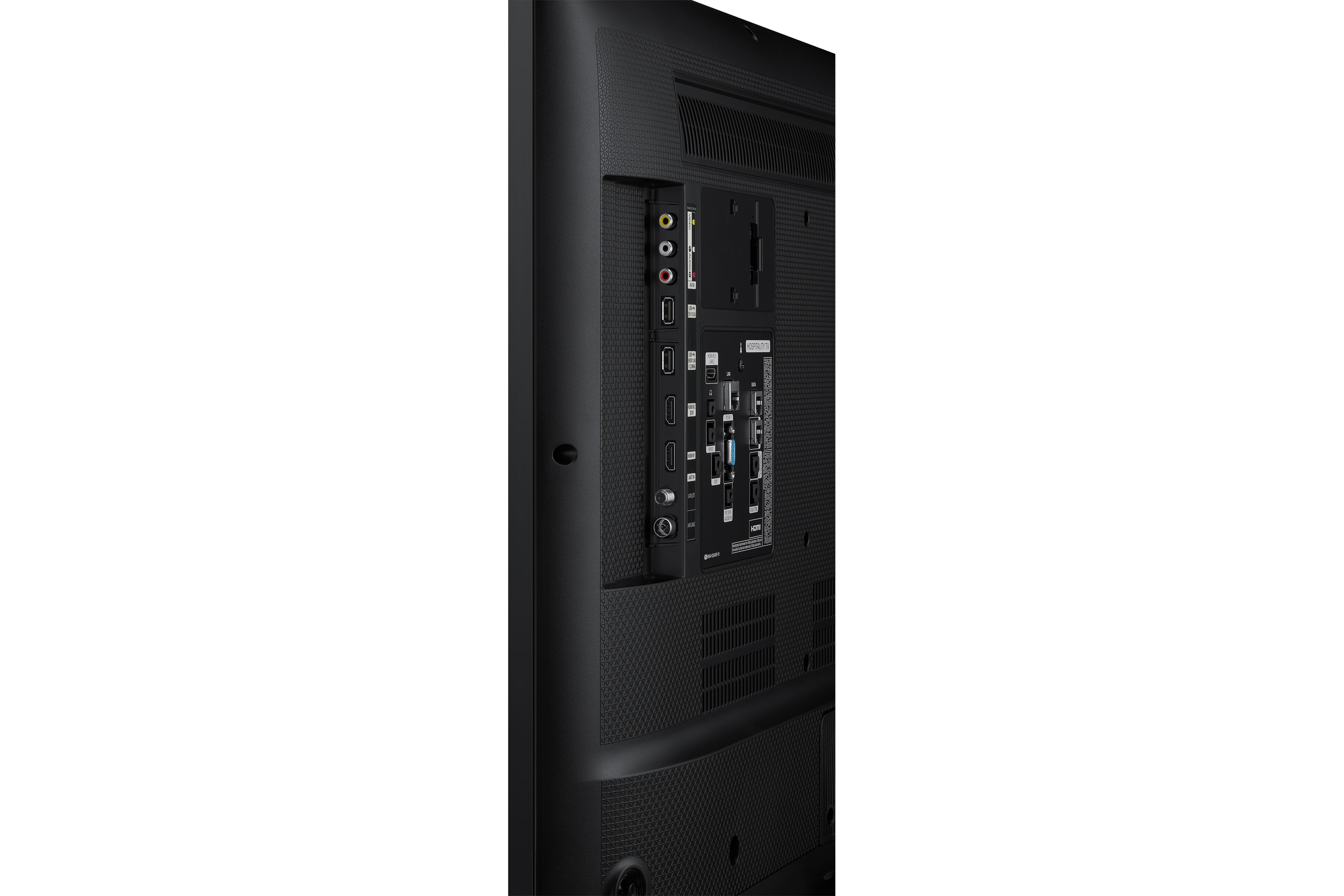

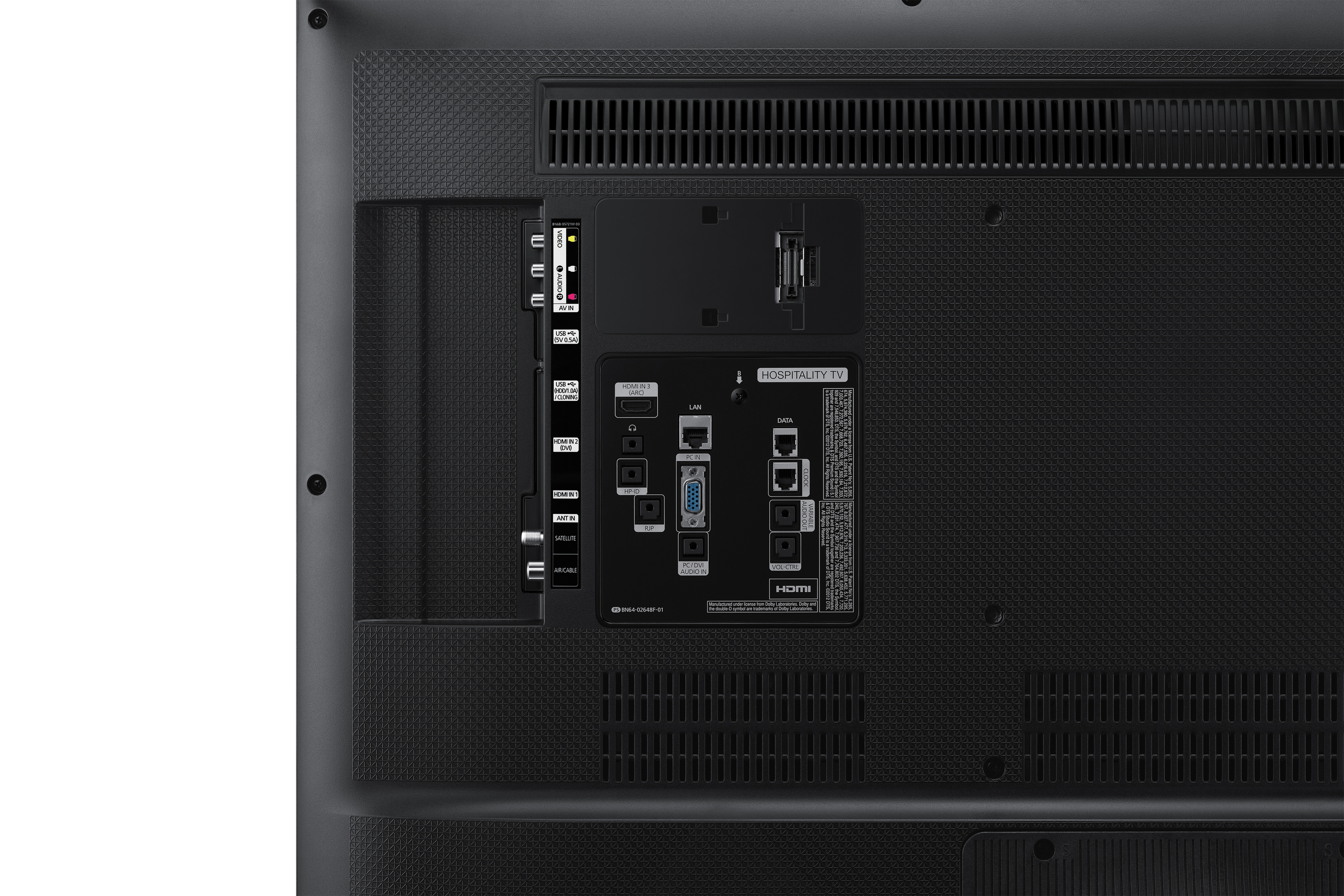

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| HDMI version | 1.4a |
| Audio Return Channel (ARC) | Yes |
| PC in (D-Sub) | Yes |
| DVI port | No |
| DVI-D ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Composite video in | 1 |
| Audio input for DVI | Yes |
| Headphone outputs | 1 |
| RS-232 ports | 1 |
| RF ports quantity | 2 |
| Common interface (CI) | Yes |
Management features
| Specification | Value |
|---|---|
| Electronic Programme Guide (EPG) | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 27 |
| Picture-in-Picture | Yes |
| On/Off timer | Yes |
| Sleep timer | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 48 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 906.6 mm |
| Depth (with stand) | 226.5 mm |
| Height (with stand) | 577.6 mm |
| Weight (with stand) | 10.7 kg |
| Width (without stand) | 906.6 mm |
| Depth (without stand) | 65.1 mm |
| Height (without stand) | 532.9 mm |
| Weight (without stand) | 7.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Package width | 1100 mm |
| Package depth | 120 mm |
| Package height | 616 mm |
| Package weight | 12.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Desktop stand | Yes |
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| 3D | No |
| Batteries included | Yes |
| Built-in speaker(s) | Yes |
| Annual energy consumption | 58 kWh |
| Energy efficiency class (legacy scale) | A+ |
| Clock function | Yes |
