HG28ED690AB TV
71.1 cm (28") HD Smart TV Black
Model HG28ED690AB
94 specifications Checked today
- Display71.1 cm (28")
- Resolution1366 x 768 pixels
- Energy classA+
- ColourBlack
- Tuner typeAnalog & digital
- Smart TVYes
Overview
- Display
- 71.1 cm (28")
- Resolution
- 1366 x 768 pixels
- Energy class
- A+
- Colour
- Black
- Tuner type
- Analog & digital
- Smart TV
- Yes
- Brand
- Samsung
- Category
- TV
- Model
- HG28ED690AB
- Part number
- HG28ED690AB
- Also known as
- Samsung HG28ED690AB TV 71.1 cm (28") HD Smart TV Black
Specifications
94 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 71.1 cm (28") |
| HD type | HD |
| Display resolution | 1366 x 768 pixels |
| Display technology | LED |
| Screen shape | Flat |
| Motion interpolation technology | CMR (Clear Motion Rate) 100 |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Display diagonal (metric) | 70 cm |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | DVB-C, DVB-S2, DVB-T2 |
| Auto channel search | Yes |
| Supported TV bands | DTV |
Smart TV
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Screen mirroring | Yes |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 10 W |
| Audio decoders | DTS Premium Sound 5.1, Dolby Digital Plus |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| On/off switch | Yes |
| LED indicators | Yes |
| Mercury content | 0 mg |
Performance
| Specification | Value |
|---|---|
| Game mode | Yes |
| Teletext function | Yes |
| Subtitles function | Yes |
| External clock dimming control | Yes |
| Picture processing technology | Samsung HyperReal Engine, Samsung Wide Color Enhancer Plus |
| Clock back up supply | Yes |
| External clock compatibility | Yes |
| Plug and Play | Yes |
| USB cloning | Yes |

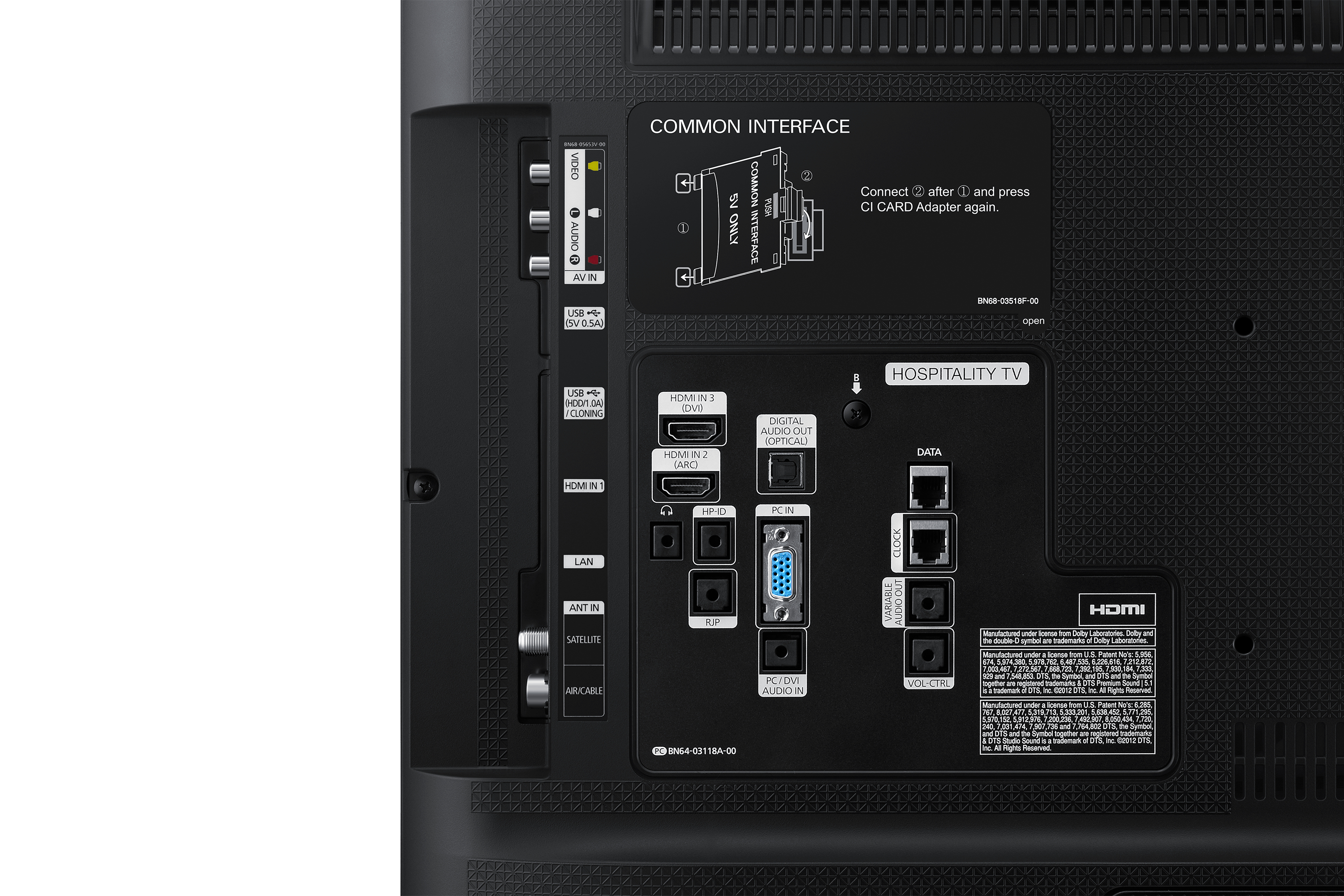

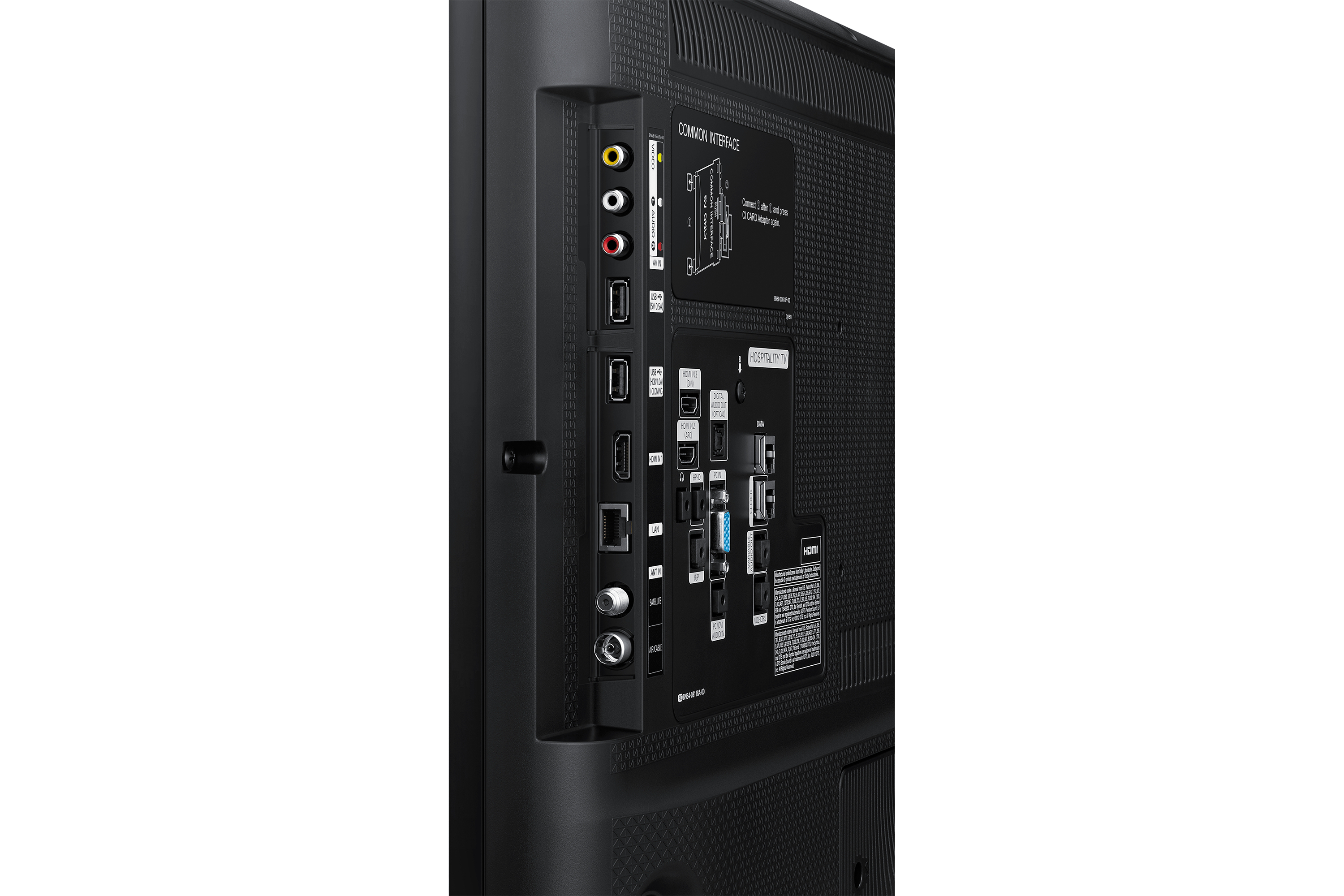

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| PC in (D-Sub) | No |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| Composite video in | 1 |
| Audio (L/R) out | 1 |
| Digital audio optical out | 1 |
| Headphone outputs | 1 |
| RF ports quantity | 1 |
Management features
| Specification | Value |
|---|---|
| Electronic Programme Guide (EPG) | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 27 |
| Picture-in-Picture | Yes |
| Auto power off | Yes |
| Music mode backlight on/off | Yes |
| Smoovie compatibility | Yes |
| On/Off timer | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Multi-code remote control | Yes |
| Screwed battery cover | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 21 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 57 W |
| Power consumption (PowerSave) | 15 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy saving mode | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 643.4 mm |
| Depth (with stand) | 163.4 mm |
| Height (with stand) | 435 mm |
| Weight (with stand) | 4.2 kg |
| Width (without stand) | 643.4 mm |
| Depth (without stand) | 62.9 mm |
| Height (without stand) | 396.5 mm |
| Weight (without stand) | 3.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Package width | 815 mm |
| Package depth | 108 mm |
| Package height | 463 mm |
| Package weight | 5.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Remote control included | Yes |
| Remote control type | TM1240 |
Other features
| Specification | Value |
|---|---|
| RJ-12 ports quantity | 1 |
| Batteries included | Yes |
| Built-in speaker(s) | Yes |
| H.Browser compatibility | Yes |
| Swivelling | No |
| LYNK DRM supported | Yes |
| LYNK REACH server compatibility | Yes |
| LYNK SINC server compatibility | Yes |
| Auto source mode | Yes |
| Annual energy consumption | 31 kWh |
| Digital Living Network Alliance (DLNA) certified | Yes |
| Energy efficiency class (legacy scale) | A+ |
| IR pass-through | Yes |
| Power on mode | Yes |
| Software clock | Yes |
| Logo display with time-out setting (BMP/movie) | Yes |
| Security mode | No |
| Soundbar compatibility | Yes |
