HG24ED470AK TV
61 cm (24") HD Black 250 cd/m²
Model HG24ED470AKEAN 8806086708395
98 specifications Checked today
- Display61 cm (24")
- Resolution1366 x 768 pixels
- Energy classA
- ColourBlack
- Tuner typeAnalog & digital
- Smart modesGame, Movie, Music, Sports
Overview
- Display
- 61 cm (24")
- Resolution
- 1366 x 768 pixels
- Energy class
- A
- Colour
- Black
- Tuner type
- Analog & digital
- Smart modes
- Game, Movie, Music, Sports
- Brand
- Samsung
- Category
- TV
- Model
- HG24ED470AK
- Part numbers
- HG24ED470AK, HG24ED470AKXXU, HG24ED470AKXEN
- EAN / UPC
- 8806086708395, 8806086827751
- Also known as
- Samsung HG24ED470AK TV 61 cm (24") HD Black 250 cd/m²
Specifications
98 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 61 cm (24") |
| HD type | HD |
| Display resolution | 1366 x 768 pixels |
| Display technology | LED |
| Screen shape | Flat |
| Display brightness | 250 cd/m² |
| Response time | 8.5 ms |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog & digital |
| Digital signal format system | DVB-C, DVB-T2 |
| Auto channel search | Yes |
Smart TV
| Specification | Value |
|---|---|
| Smart modes | Game, Movie, Music, Sports |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 10 W |
| Audio decoders | Dolby Digital, DTS, Dolby Digital Plus, DTS Premium Sound 5.1, DTS Studio Sound |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| On/off switch | Yes |
| LED indicators | Yes |
| Mercury content | 0 mg |
Performance
| Specification | Value |
|---|---|
| Game mode | Yes |
| Teletext function | Yes |
| Subtitles function | Yes |
| Picture processing technology | Samsung HyperReal Engine, Samsung Wide Color Enhancer Plus |
| External clock compatibility | Yes |
| USB cloning | Yes |

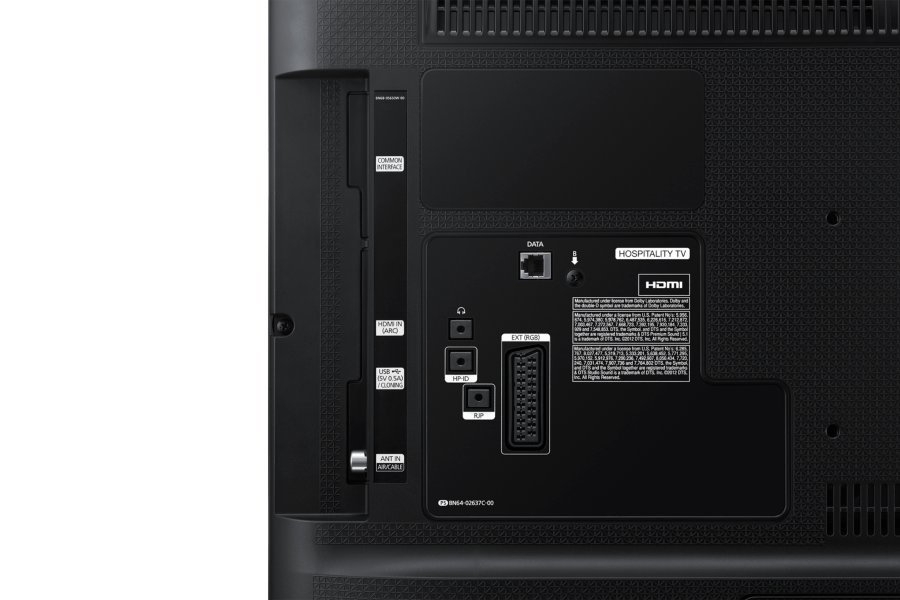

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Audio Return Channel (ARC) | Yes |
| PC in (D-Sub) | No |
| DVI port | No |
| DVI-D ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| Digital audio optical out | 0 |
| Headphone outputs | 1 |
| RS-232 ports | 1 |
| SCART ports quantity | 1 |
| RF ports quantity | 1 |
| Common interface (CI) | Yes |
| S-Video inputs quantity | 0 |
| Consumer Electronics Control (CEC) | Anynet+ |
Management features
| Specification | Value |
|---|---|
| Electronic Programme Guide (EPG) | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 27 |
| Picture-in-Picture | Yes |
| Auto power off | Yes |
| Music mode backlight on/off | Yes |
| Smoovie compatibility | Yes |
| On/Off timer | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Multi-code remote control | Yes |
| Screwed battery cover | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 23 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (max) | 33 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy saving mode | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 561.8 mm |
| Depth (with stand) | 163.8 mm |
| Height (with stand) | 384.2 mm |
| Weight (with stand) | 4.1 kg |
| Width (without stand) | 561.8 mm |
| Depth (without stand) | 65.2 mm |
| Height (without stand) | 349.1 mm |
| Weight (without stand) | 3.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Package width | 743 mm |
| Package depth | 114 mm |
| Package height | 407 mm |
| Package weight | 5.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Desktop stand | Yes |
| Cables included | AC |
| Remote control included | Yes |
| Remote control type | TM1240 |
Other features
| Specification | Value |
|---|---|
| RJ-12 ports quantity | 1 |
| 3D | No |
| Batteries included | Yes |
| Built-in speaker(s) | Yes |
| LYNK DRM supported | Yes |
| LYNK REACH server compatibility | Yes |
| Auto source mode | Yes |
| Energy efficiency class (legacy scale) | A |
| Power on mode | Yes |
| Clock function | Yes |
| Software clock | Yes |
| Logo display with time-out setting (BMP/movie) | Yes |
| My Channel function | Yes |
| Security mode | Yes |
| Soundbar compatibility | Yes |
