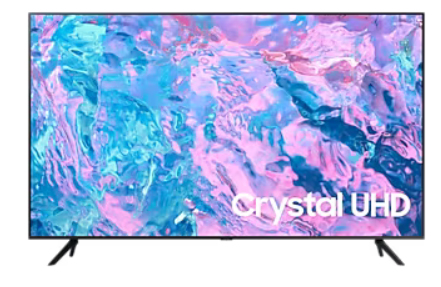

Samsung Series 7 F-55CU7170S60B TV

Series 7 F-55CU7170S60B TV

139.7 cm (55") 4K Ultra HD Smart TV Wi-Fi Black

Model F-55CU7170S60B

102 specifications Checked today

Display139.7 cm (55")
Resolution3840 x 2160 pixels
Energy classG
OSTizen
ColourBlack
Tuner typeAnalog & digital

See all specifications

Overview

Display: 139.7 cm (55")
Resolution: 3840 x 2160 pixels
Energy class: G
OS: Tizen
Colour: Black
Tuner type: Analog & digital

Brand: Samsung
Category: TV
Model: F-55CU7170S60B
Part number: F-55CU7170S60B
Also known as: Samsung Series 7 F-55CU7170S60B TV 139.7 cm (55") 4K Ultra HD Smart TV Wi-Fi Black

Specifications

102 specifications in 15 groups

Display

Specification	Value
Display diagonal	139.7 cm (55")
HD type	4K Ultra HD
Display resolution	3840 x 2160 pixels
Display technology	LED
Screen shape	Flat
Native aspect ratio	16:9
Motion interpolation technology	Motion Xcelerator
Native refresh rate	50 Hz
Dynamic contrast ratio marketing name	Mega Contrast
Display number of colours	1 billion colours
Anti-glare screen	No
Display diagonal (metric)	138 cm

TV tuner

Specification	Value
Tuner type	Analog & digital
Digital signal format system	DVB-C, DVB-S2, DVB-T2

Smart TV

Specification	Value
Smart TV	Yes
Internet TV	Yes
Operating system installed	Tizen
Timeshift	No
Hybrid Broadcast Broadband TV (HbbTV)	Yes
Hybrid Broadcast Broadband TV (HbbTV) version	2.0.3
Smart modes	Filmmaker
Far-field voice interaction	No
Video apps	Samsung TV Plus

Audio

Specification	Value
Number of speakers	2
RMS rated power	20 W
Audio decoders	Dolby Digital, Dolby Digital Plus
Active voice amplifier (AVA)	No
Adaptive sound	Yes
Audio pre-selection descriptor	Yes
Q-Symphony	Yes
Multiroom	Yes
Multiroom audio technology	Samsung Multiroom Link

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.2
Ethernet LAN	Yes
Web browser	Yes

Design

Specification	Value
Product colour	Black
VESA mounting	Yes
Panel mounting interface	200 x 200 mm
Bezel type	3 Bezel-less
Stand colour	Black

Performance

Specification	Value
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG)
Game mode	Yes
Teletext function	Yes
Subtitles function	Yes
TV key support	Yes
Picture processing technology	Samsung Contrast Enhancer
Noise reduction	Yes
AMD FreeSync	No
NVIDIA G-SYNC	No
Game features	Auto Low Latency Mode (ALLM), HGiG
Multi View	No
SmartThings app support	Yes
Wireless Dex support	Yes
MBR support	Yes

Ports & interfaces

Specification	Value
HDMI ports quantity	3
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
Component video (YPbPr/YCbCr) in	0
RS-232C ports	0
RF ports quantity	3
Common interface (CI)	Yes
Common interface Plus (CI+)	Yes
Common interface Plus (CI+) version	1.4
Consumer Electronics Control (CEC)	Anynet+

Management features

Specification	Value
Voice guide	Yes
Electronic Programme Guide (EPG)	Yes
Picture-in-Picture	No
Works with Samsung Bixby	No
Universal Browse & Play	Yes

Power

Specification	Value
Power consumption (typical)	83 W
Power consumption (standby)	0.5 W
Power consumption (max)	145 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	83 kWh
Energy consumption (HDR) per 1000 hours	139 kWh
AC input voltage	220-240 V
AC input frequency	50/60 Hz
Energy saving mode	Yes
Energy efficiency scale	A to G

Brand-specific features

Specification	Value
Samsung technologies (AV/TV)	Motion Xcelerator

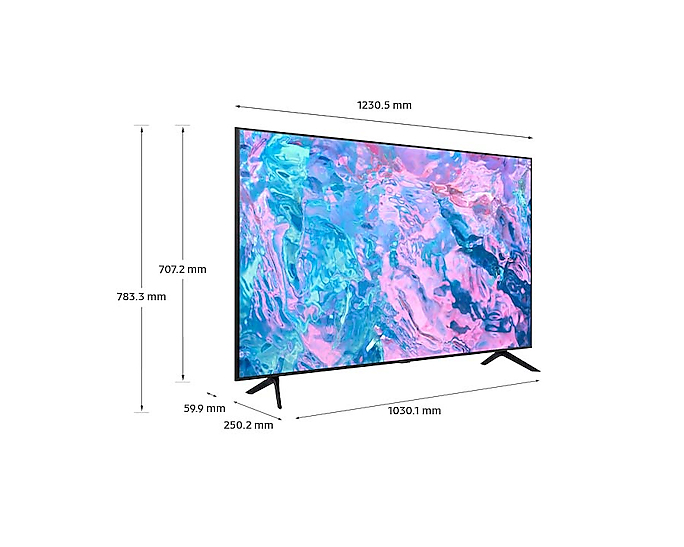

Weight & dimensions

Specification	Value
Width (with stand)	1230.5 mm
Depth (with stand)	250.2 mm
Height (with stand)	783.3 mm
Weight (with stand)	14.2 kg
Width (without stand)	1230.5 mm
Depth (without stand)	59.9 mm
Height (without stand)	707.2 mm
Weight (without stand)	13.9 kg
Stand width	103 cm
Stand depth	25 cm

Packaging data

Specification	Value
Package width	1386 mm
Package depth	158 mm
Package height	843 mm
Package weight	18 kg

Packaging content

Specification	Value

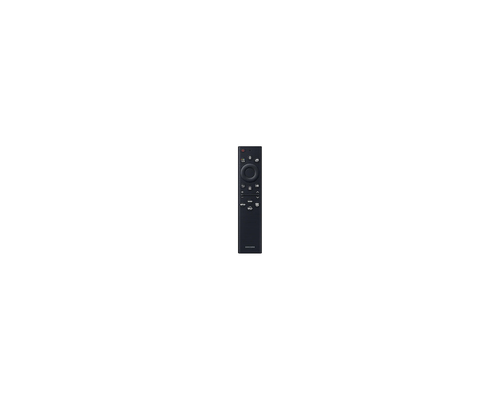

Remote control included	Yes
Remote control type	TM2240 (UK: TM2240 + TM1240A)

Other features

Specification	Value
One Connect box	No
