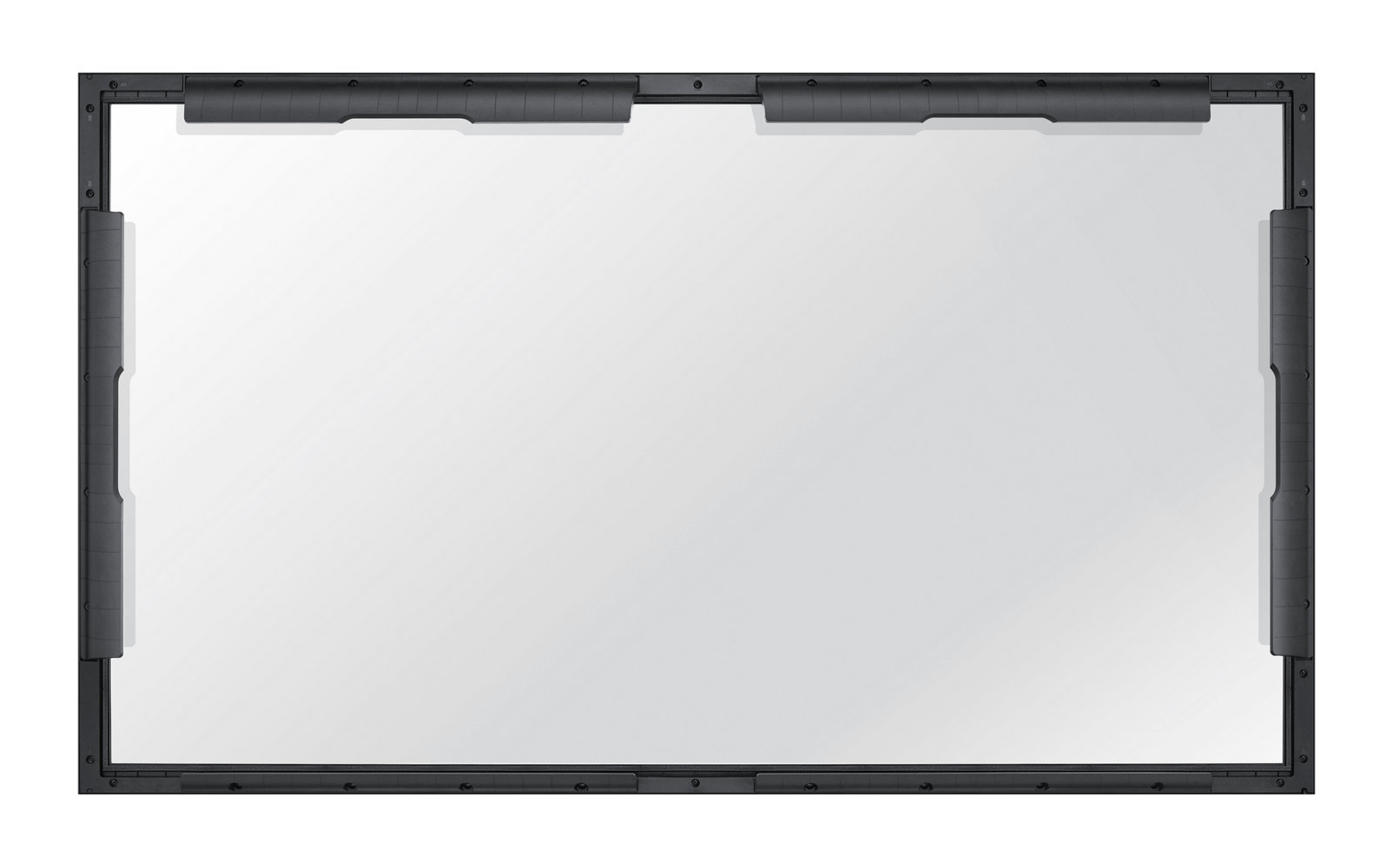

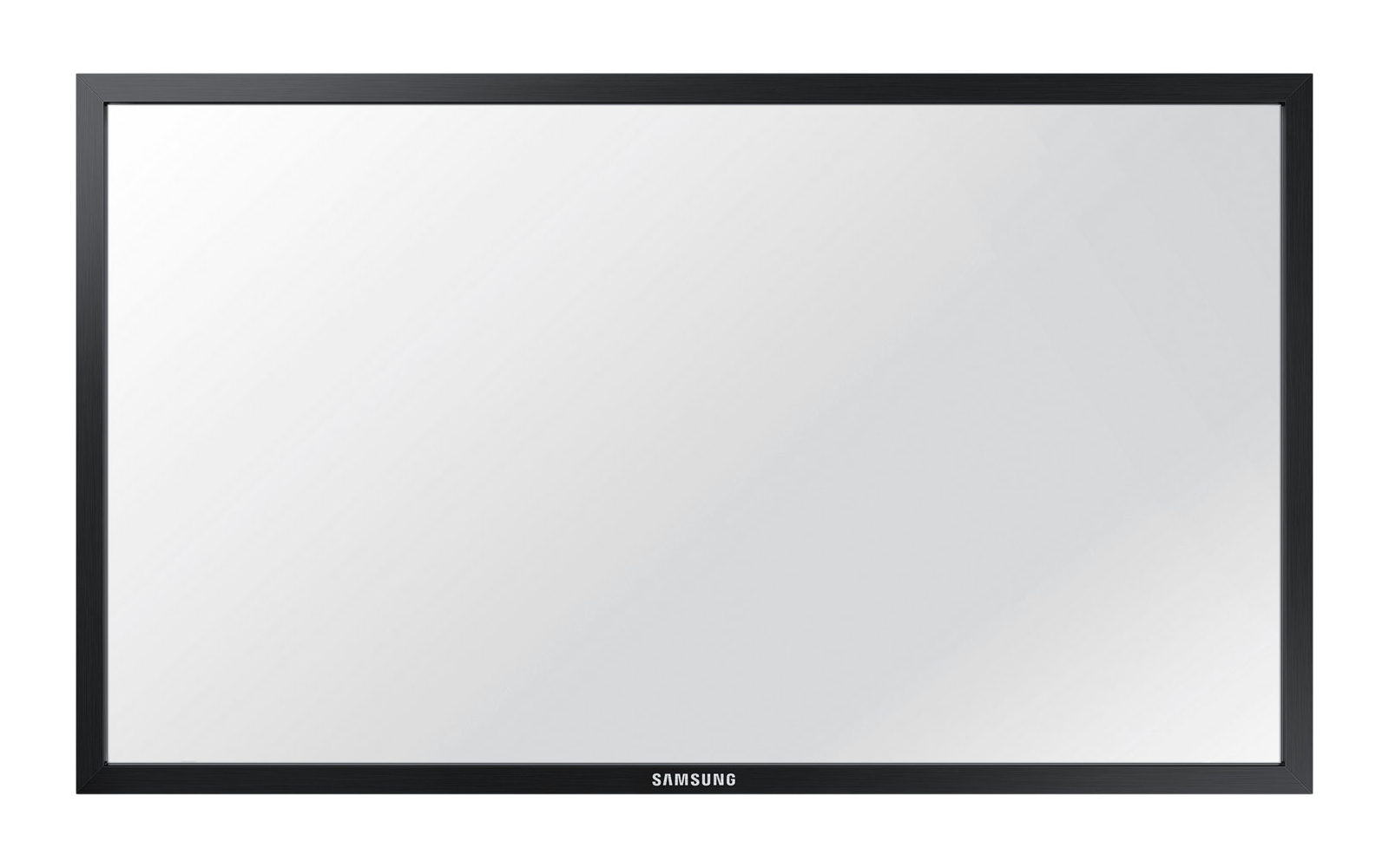

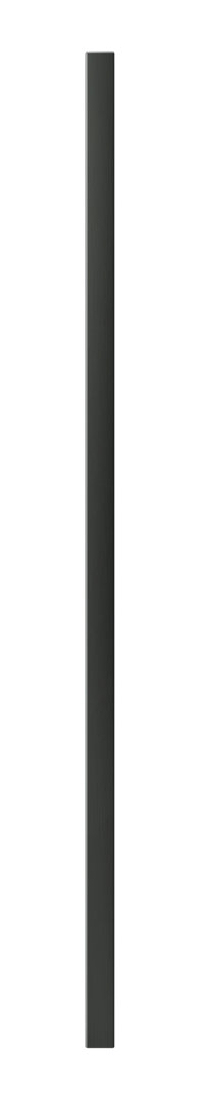

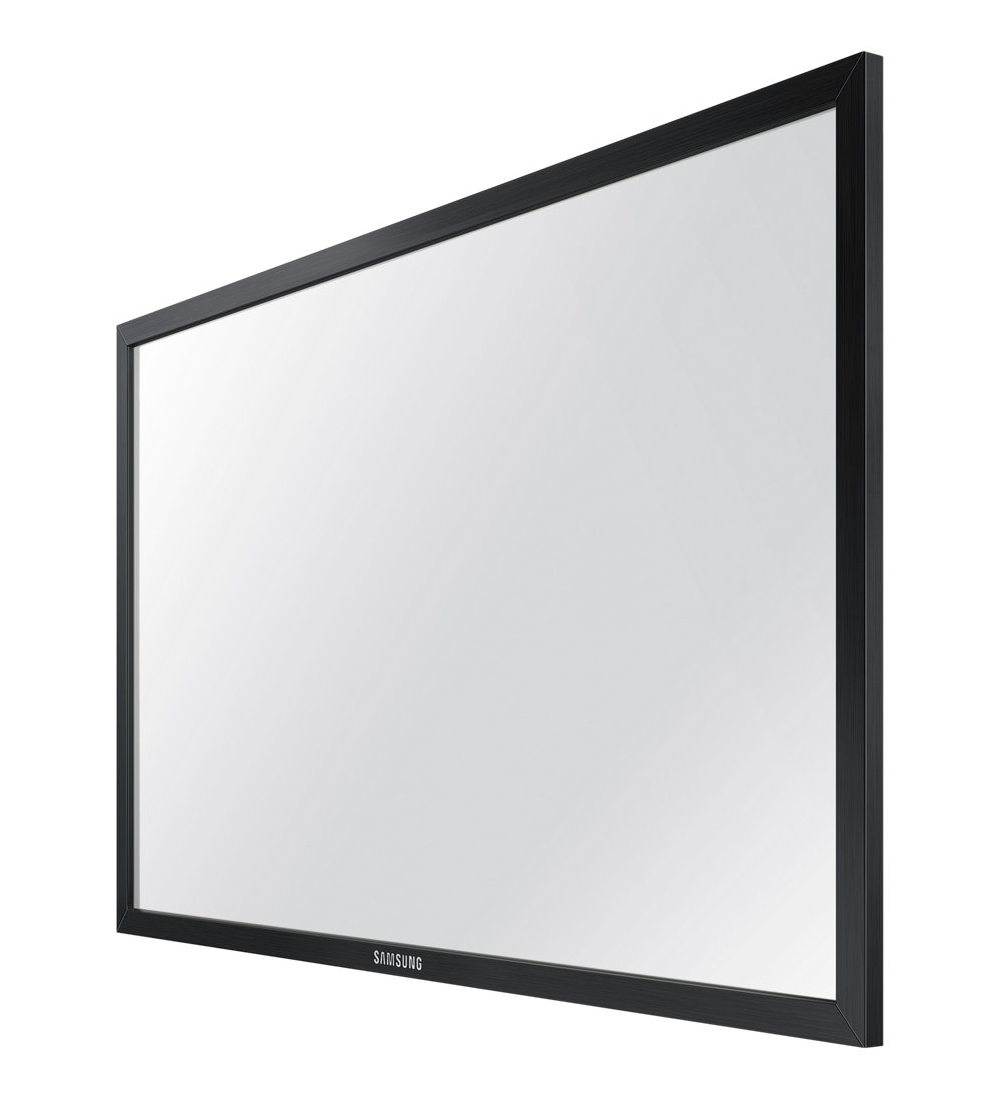

CY-TD75LDAF touch screen overlay
190.5 cm (75") Multi-touch
Model CY-TD75LDAFEAN 4053162880801
19 specifications
- Display190.5 cm (75")
- Weight19.5 kg
- Width1739.2 mm
Overview
- Display
- 190.5 cm (75")
- Weight
- 19.5 kg
- Width
- 1739.2 mm
- Brand
- Samsung
- Category
- Touch Screen Overlay
- Model
- CY-TD75LDAF
- Part number
- CY-TD75LDAF
- EAN / UPC
- 4053162880801, 8806086278713, 8806086300193
- Also known as
- Samsung CY-TD75LDAF touch screen overlay 190.5 cm (75") Multi-touch
Specifications
19 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Display diagonal | 190.5 cm (75") |
| Touch technology | Multi-touch |
| Touchscreen technology | Infrared |
| Number of simultaneous touchpoints | 10 |
| Response time | 12 ms |
| Haze rate | 15% |
| Light transmission | 15% |
| Reflection rate | 10% |
| Frame material | Extruded aluminium |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1739.2 mm |
| Height | 1017.2 mm |
| Glass thickness | 3.2 mm |
| Thickness | 2.96 cm |
| Bezel width | 3.79 cm |
| Weight | 19.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1890 mm |
| Package depth | 265 mm |
| Package height | 1136 mm |
| Package weight | 29.6 kg |
