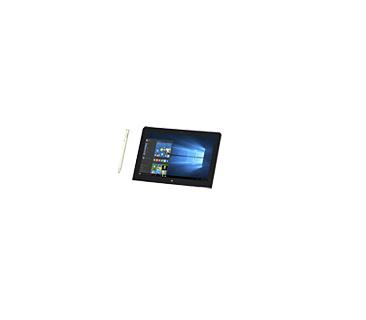

NEC LaVie Tab W TW710/CAS Intel Atom®

64 GB 25.6 cm (10.1") 4 GB Wi-Fi 5 (802.11ac) Windows 10 Home Black, Silver

Model TW710/CASPart no. PC-TW710CAS

101 specifications Checked 2 days ago

Display25.6 cm (10.1")
Resolution1920 x 1200 pixels
ProcessorIntel Atom®
Memory4 GB
Storage64 GB
SpeedWi-Fi 5 (802.11ac)

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1920 x 1200 pixels
Processor: Intel Atom®
Memory: 4 GB
Storage: 64 GB
Speed: Wi-Fi 5 (802.11ac)

Brand: NEC
Category: Tablet
Model: TW710/CAS
Part number: PC-TW710CAS
Also known as: NEC LaVie Tab W TW710/CAS Intel Atom® 64 GB 25.6 cm (10.1") 4 GB Wi-Fi 5 (802.11ac) Windows 10 Home Black, Silver

Specifications

101 specifications in 20 groups

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Panel type	IPS
Display resolution	1920 x 1200 pixels
LED backlight	Yes
Touch technology	Multi-touch
Touchscreen type	Capacitive
Native aspect ratio	16:10
Display number of colours	16.78 million colours

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	x7-Z8700
Processor cores	4
Processor threads	4
Processor boost frequency	2.4 GHz
Processor frequency	1.6 GHz
Processor cache	2 MB
Processor cache type	L3
Conflict-Free processor	Yes
Number of execution units	16
PCI Express configurations	2x1, 1x2
Processor code	SR27M
Processor codename	Cherry Trail
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	17 x 17 mm
Processor series	Intel Atom x7 Series
Scenario Design Power (SDP)	2 W
Stepping	C0
Tjunction	90 °C

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	LPDDR3-SDRAM
Maximum internal memory	4 GB

Storage

Specification	Value
Internal storage capacity	64 GB
Storage media	Flash
Card reader integrated	Yes
Compatible memory cards	MicroSDHC, MicroSDXC

Graphics

Specification	Value
Graphics card family	Intel
Graphics card	HD Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Number of built-in speakers	2
Speaker power	2 W

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Video recording	Yes
Front camera	Yes

Network

Specification	Value
Bluetooth	Yes
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	867 Mbit/s
Near Field Communication (NFC)	No
Wi-Fi Direct	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Mobile High-Definition Link (MHL)	No
HDMI ports quantity	0
Micro HDMI ports quantity	1
Combo headphone/mic port	Yes

Design

Specification	Value
Form factor	Slate
Product colour	Black, Silver
Device type	Tablet PC

Performance

Specification	Value
Position location	No
GPS (satellite)	No

Sensors

Specification	Value
Accelerometer	Yes
Ambient light sensor	Yes
Gyroscope	Yes
Magnetometer	Yes

Software

Specification	Value
Platform	Windows
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Bundled software	Office Mobile Office 365

Processor special features

Specification	Value
Embedded options available	No
Intel 64	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery recharge time	2.2 h
Browsing time (Wi-Fi) (max)	11.5 h

Power

Specification	Value
AC adapter input voltage	100 - 240 V
AC adapter frequency	50 - 60 Hz

Weight & dimensions

Specification	Value
Width	256.5 mm
Depth	177 mm
Height	9.1 mm
Weight	597 g

Packaging content

Specification	Value
AC adapter included	Yes
Keyboard included	No
Stylus pen	Yes
Manual	Yes
Quick start guide	No

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	8 - 95%

Other features

Specification	Value
64-bit computing	Yes
Processor socket	BGA 1380
Processor ARK ID	85475
