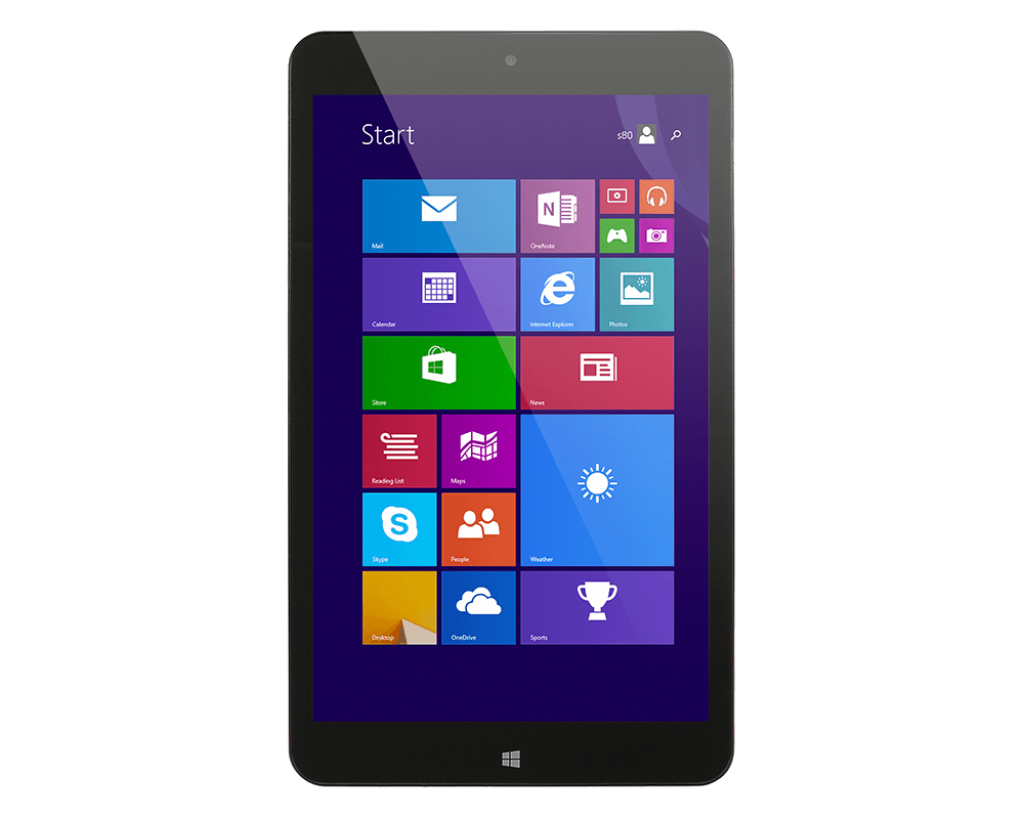

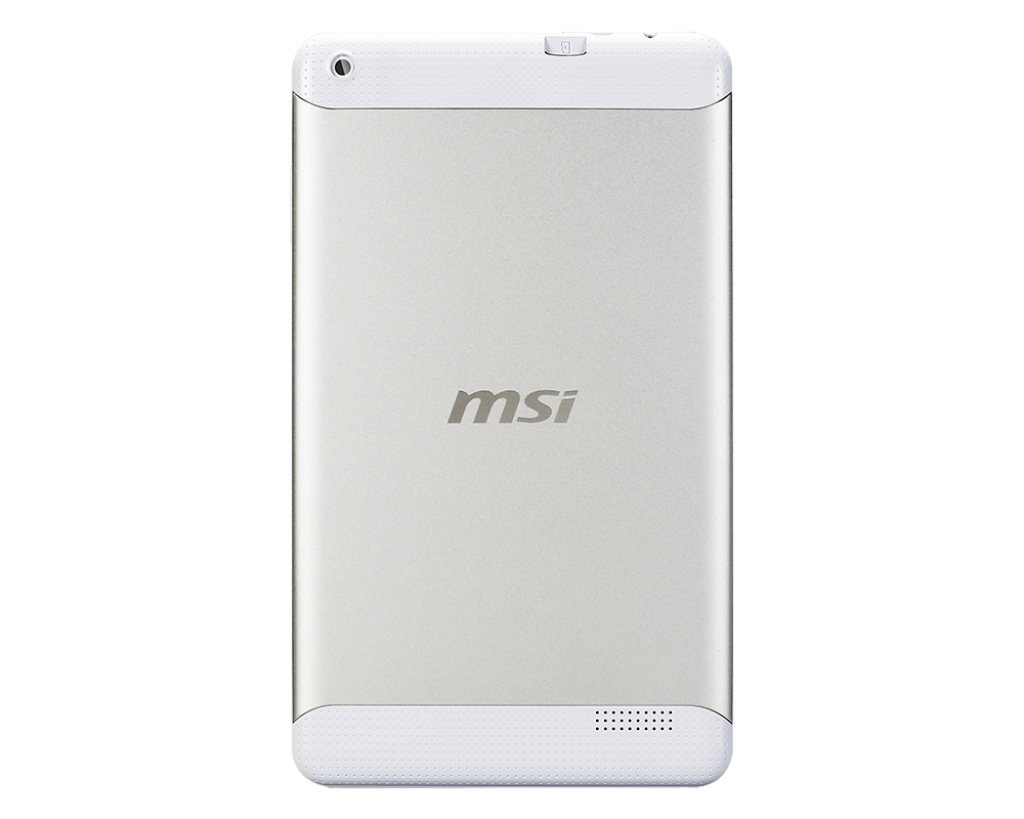

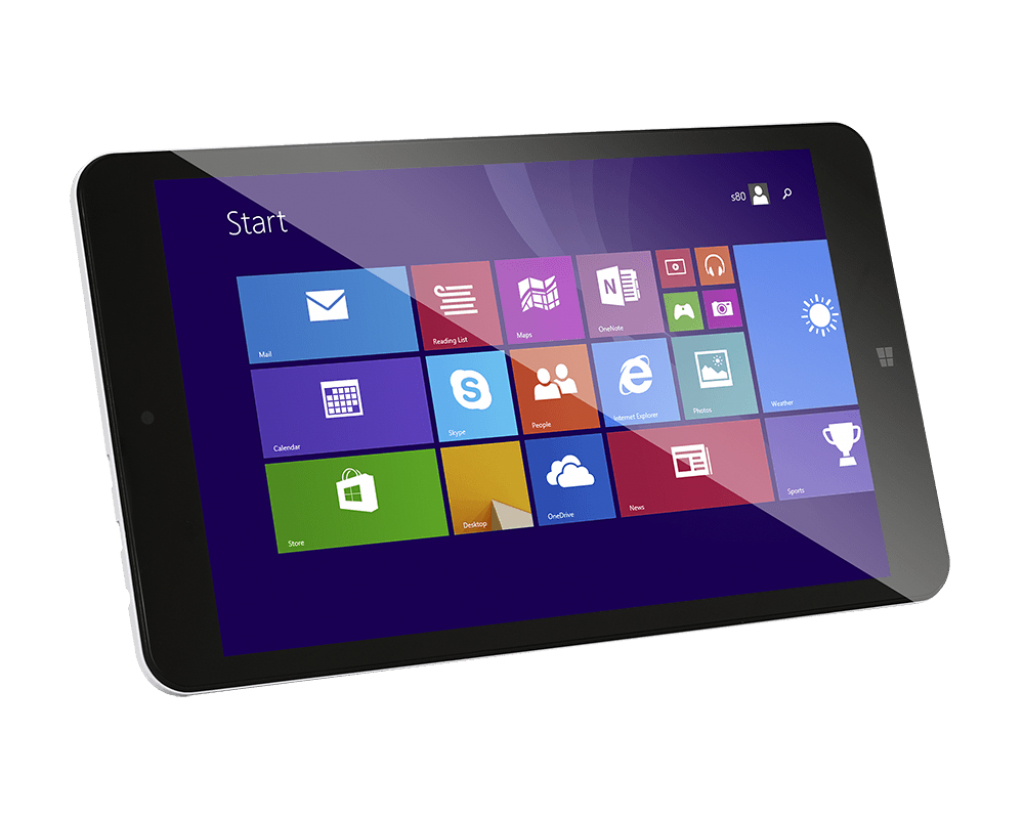

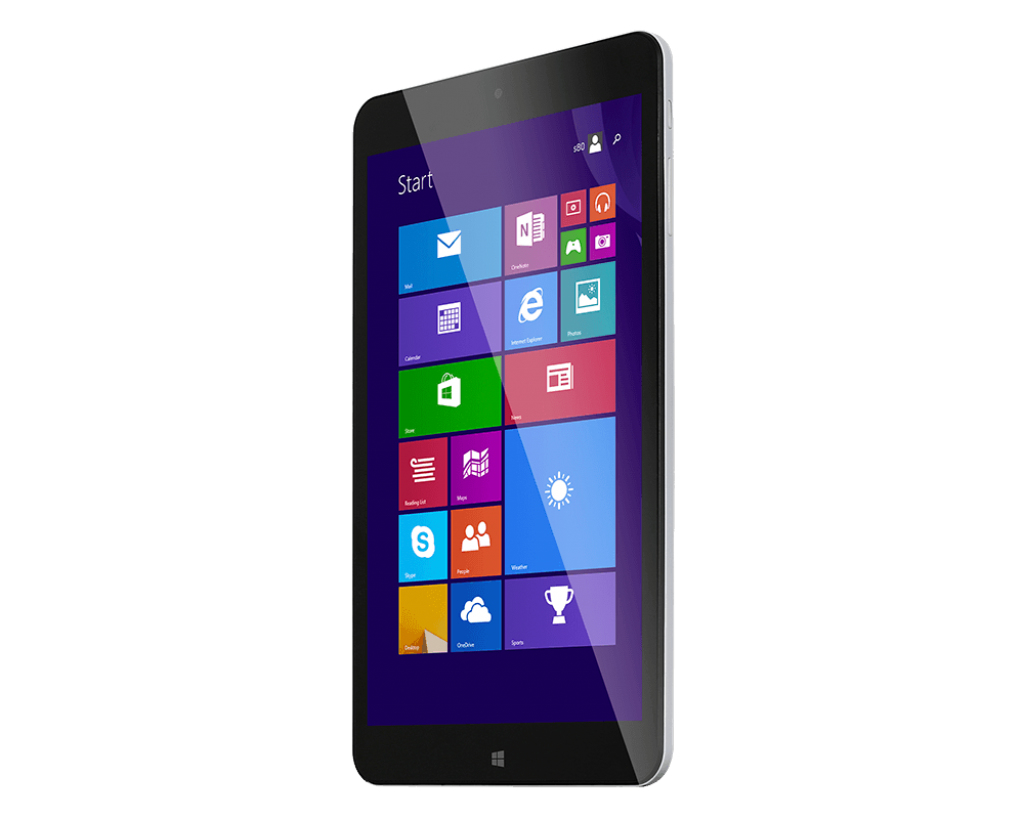

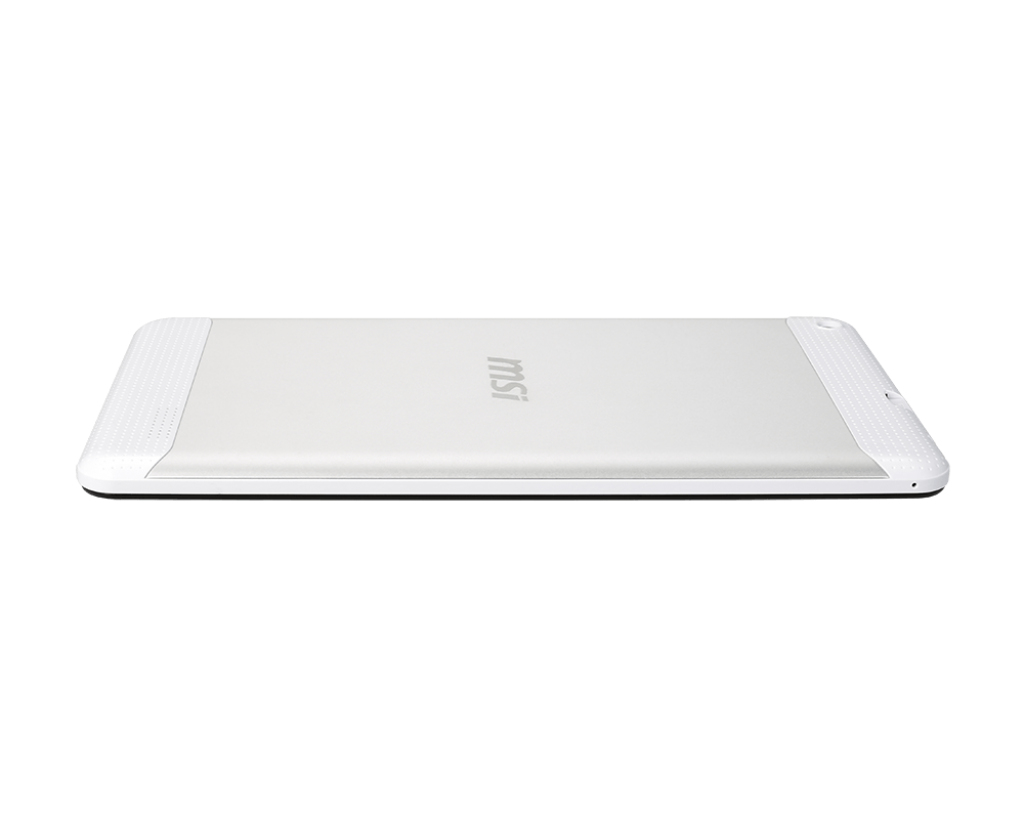

MSI WindPad S80-001TW tablet Intel Atom®

32 GB 20.3 cm (8") 2 GB Wi-Fi 4 (802.11n) Windows 8.1 Black, White

Model S80-001TW

83 specifications Checked 2 days ago

Display20.3 cm (8")
Resolution1280 x 800 pixels
ProcessorIntel Atom®
Memory2 GB
Storage32 GB
Camera5 MP

See all specifications

Overview

Display: 20.3 cm (8")
Resolution: 1280 x 800 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 32 GB
Camera: 5 MP

Brand: MSI
Category: Tablet
Model: S80-001TW
Part number: S80-001TW
Also known as: MSI WindPad S80-001TW tablet Intel Atom® 32 GB 20.3 cm (8") 2 GB Wi-Fi 4 (802.11n) Windows 8.1 Black, White

Specifications

83 specifications in 19 groups

Display

Specification	Value
Display diagonal	20.3 cm (8")
Panel type	IPS
Display resolution	1280 x 800 pixels
LED backlight	Yes
Touch technology	Multi-touch
Touchscreen type	Capacitive

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3735F
Processor cores	4
Processor threads	4
Processor boost frequency	1.83 GHz
Processor frequency	1.33 GHz
Processor cache	2 MB
Processor cache type	L2
Conflict-Free processor	Yes
Graphics & IMC lithography	22 nm
Processor code	SR1UB
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	17 x 17 mm
Processor series	Intel Atom Z3700 Series
Scenario Design Power (SDP)	2.2 W
Stepping	C0

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM

Storage

Specification	Value
Internal storage capacity	32 GB
Storage media	Flash
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
Graphics card family	Intel
Graphics card	HD Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Speaker power	0.8 W

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Rear camera resolution (numeric)	5 MP
Auto focus	Yes
Video recording	Yes
Front camera	Yes
Front camera resolution (numeric)	2 MP

Network

Specification	Value
Bluetooth	Yes
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
Micro-USB 2.0 ports quantity	1
Mobile High-Definition Link (MHL)	No
HDMI ports quantity	0
Micro HDMI ports quantity	1
Microphone in	No
Headphone out	Yes

Design

Specification	Value
Form factor	Slate
Product colour	Black, White
Device type	Mobile tablet

Performance

Specification	Value
Position location	No
GPS (satellite)	No

Sensors

Specification	Value
Accelerometer	Yes
Orientation sensor	Yes

Software

Specification	Value
Platform	Windows
Operating system installed	Windows 8.1

Processor special features

Specification	Value
Embedded options available	No
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Turbo Boost Technology	No

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	4000 mAh
Battery voltage	3.7 V

Power

Specification	Value
AC adapter output voltage	5 V
AC adapter output current	2 A

Weight & dimensions

Specification	Value
Width	123.4 mm
Depth	9.1 mm
Height	210.4 mm
Weight	390 g

Packaging content

Specification	Value
AC adapter included	Yes
Keyboard included	No
Cables included	Micro-USB

Other features

Specification	Value
64-bit computing	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Processor socket	BGA 592
Processor ARK ID	80274
