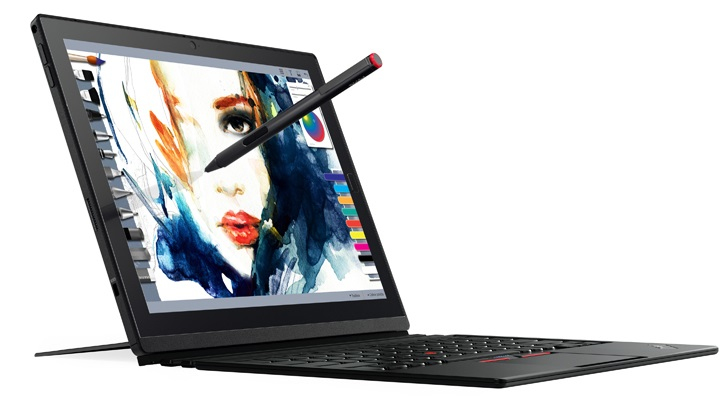

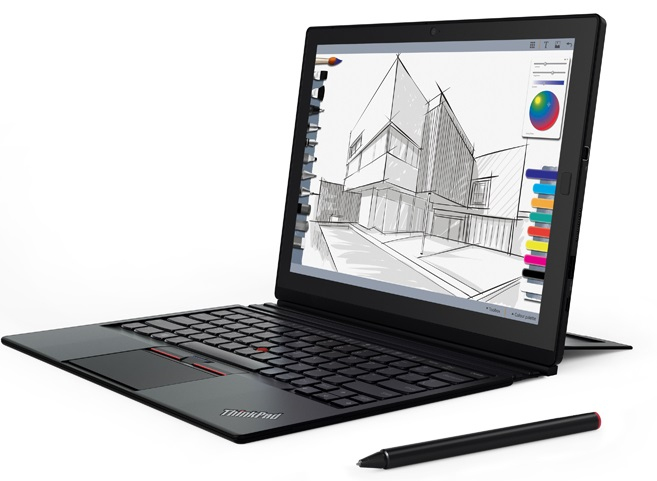

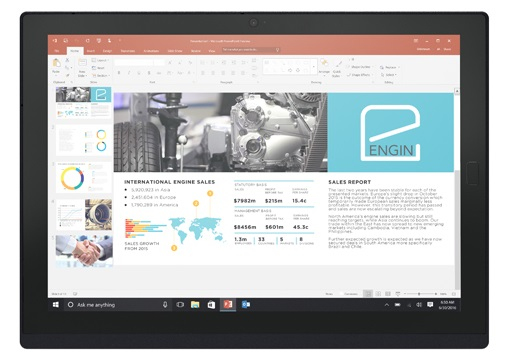

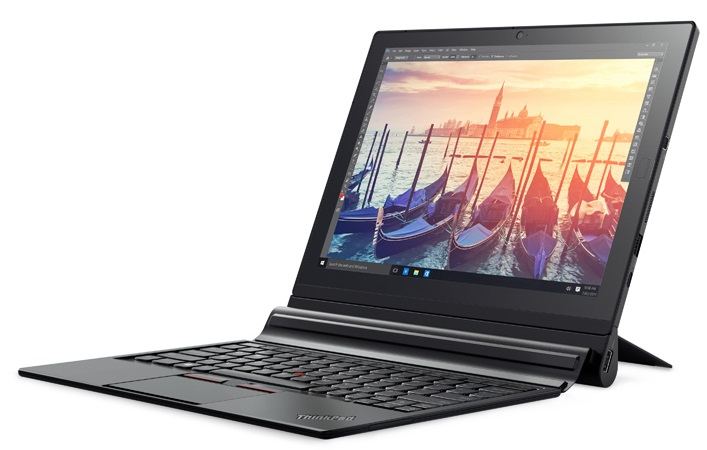

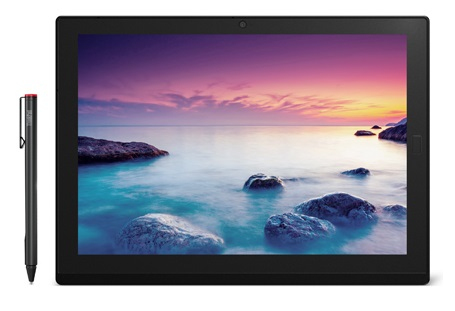

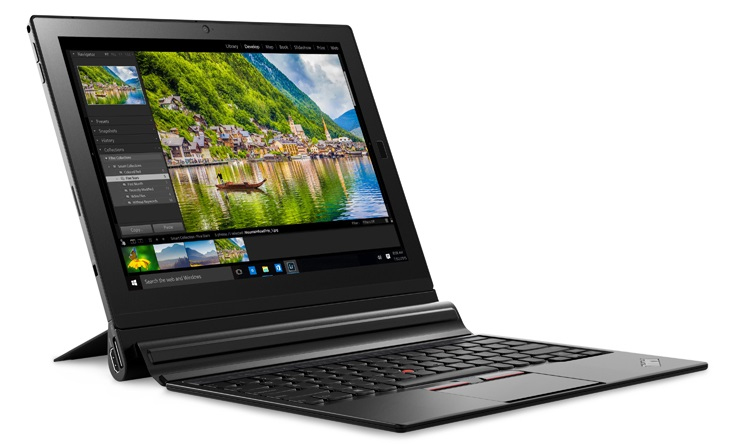

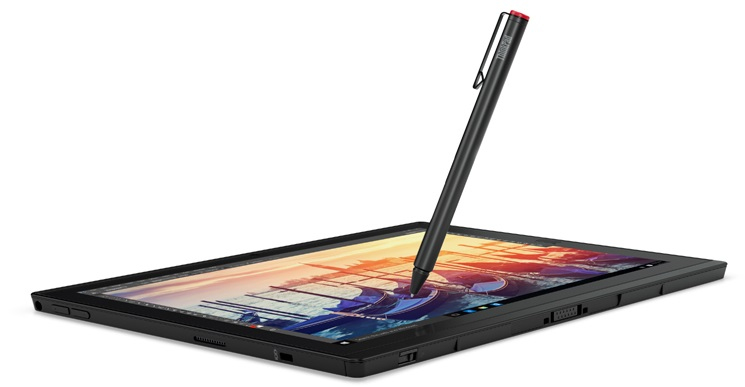

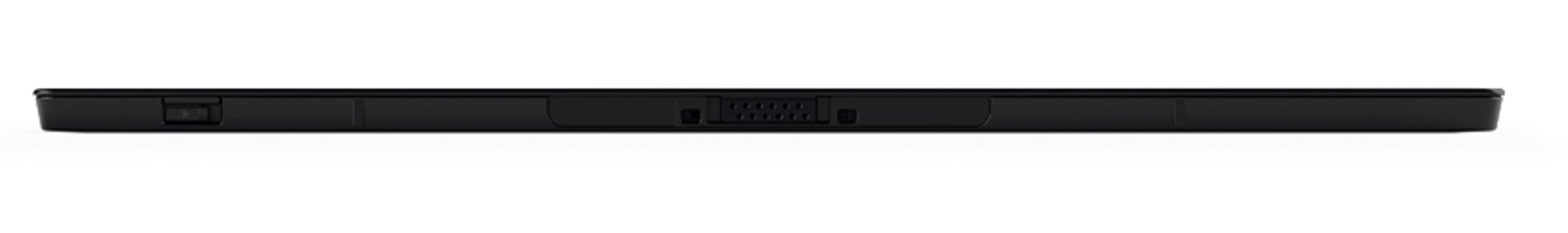

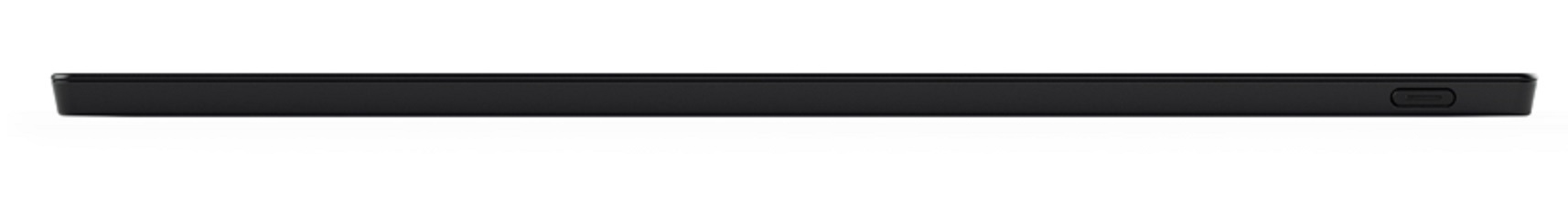

Lenovo X1 (2nd Gen)

Model X1 (2nd Gen)Part no. 20JB0019UKEAN 4058154224939

143 specifications Checked 3 days ago

Display30.5 cm (12")
Resolution2160 x 1440 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
Camera8 MP

See all specifications

Overview

Display: 30.5 cm (12")
Resolution: 2160 x 1440 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Camera: 8 MP

Brand: Lenovo
Category: Tablet
Model: X1 (2nd Gen)
Part numbers: 20JB0019UK, 20JCS11600, 20JC002QMX, 20JC002RMX, 20JCA00FMX, 20JC0002MX +13 more
EAN / UPC: 4058154224939, 191200655906, 4058154224946, 191376677634 +8 more
Also known as: Lenovo ThinkPad X1 (2nd Gen) 4G Intel® Core™ i7 LTE 512 GB 30.5 cm (12") 16 GB Wi-Fi 5 (802.11ac) Windows 10 Pro Black

Specifications

143 specifications in 21 groups

Display

Specification	Value
Display diagonal	30.5 cm (12")
Panel type	IPS
Display resolution	2160 x 1440 pixels
LED backlight	Yes
Display brightness	360 cd/m²
Touch technology	Multi-touch
Touchscreen type	Capacitive
Native aspect ratio	3:2

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	7th gen Intel® Core™ i7
Processor model	i7-7Y75
Processor cores	2
Processor threads	4
Processor boost frequency	3.6 GHz
Processor frequency	1.3 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Bus type	OPI
Configurable TDP-down frequency	0.6 GHz
Conflict-Free processor	Yes
Graphics & IMC lithography	14 nm
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
Processor codename	Kaby Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	20.5 X 16.5 mm
Stepping	H0
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
System bus rate	4 GT/s
Thermal Design Power (TDP)	4.5 W
Thermal Monitoring Technologies	Yes
Tjunction	100 °C

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR3-SDRAM
Maximum internal memory	16 GB
Memory clock speed	1866 MHz

Storage

Specification	Value
Internal storage capacity	512 GB
Storage media	SSD
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	64 GB

Graphics

Specification	Value
Graphics card family	Intel
Graphics card	HD Graphics 615

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Number of built-in speakers	2
Speaker power	0.5 W

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Rear camera resolution (numeric)	8 MP
Auto focus	Yes
Rear camera flash	Yes
Maximum video resolution	1920 x 1080 pixels
Video recording	Yes
Video recording modes	1080p
Front camera	Yes
Front camera resolution (numeric)	2 MP

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	4G
4G standard	LTE
Bluetooth	Yes
Bluetooth version	4.1
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WWAN	Installed
SIM card type	NanoSIM

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	0
Microphone in	No
Mini DisplayPorts quantity	1
Headphone out	No
Combo headphone/mic port	Yes

Design

Specification	Value
Form factor	Convertible (Detachable)
Product colour	Black
Device type	Tablet PC

Performance

Specification	Value
GPS (satellite)	Yes

Sensors

Specification	Value
Accelerometer	Yes
Ambient light sensor	Yes
Gyroscope	Yes
Electronic compass	Yes

Security

Specification	Value
Fingerprint reader	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington

Software

Specification	Value
Platform	Windows
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	37 Wh
Number of battery cells	2
Continuous video playback time (max)	10 h

Power

Specification	Value
AC adapter power	45 W
AC adapter input voltage	100 - 240 V
AC adapter frequency	50 - 60 Hz

Weight & dimensions

Specification	Value
Width	291.5 mm
Depth	209.5 mm
Height	8.75 mm
Weight	767 g

Packaging content

Specification	Value
Keyboard included	Yes
Stylus pen	Yes
Manual	Yes
Warranty card	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	MIL-STD-810G, GREENGUARD, EPEAT Gold, Low Halogen

Other features

Specification	Value
Processor socket	BGA 1515
Processor ARK ID	95441
