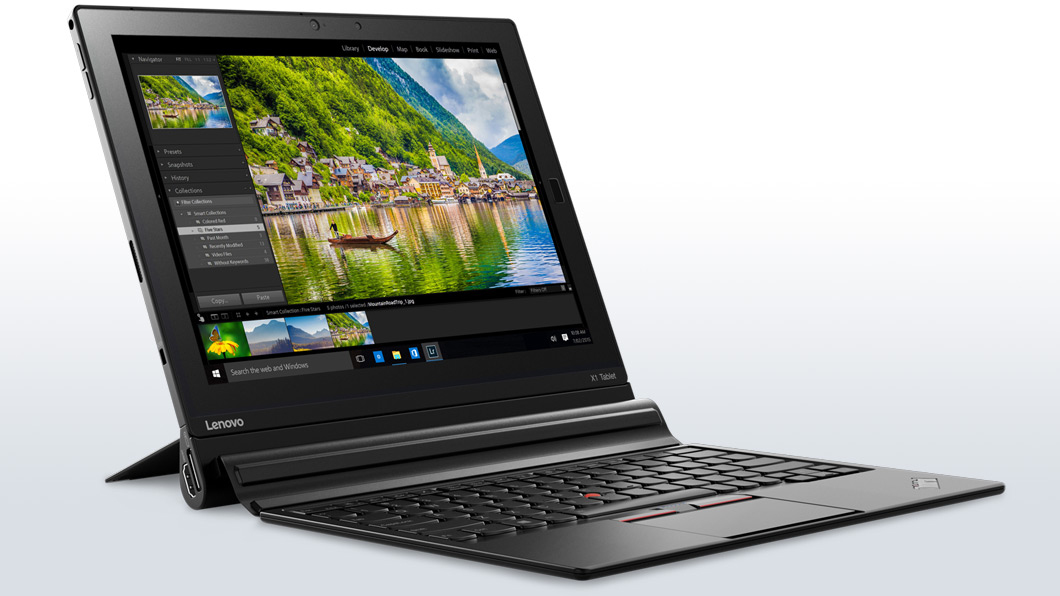

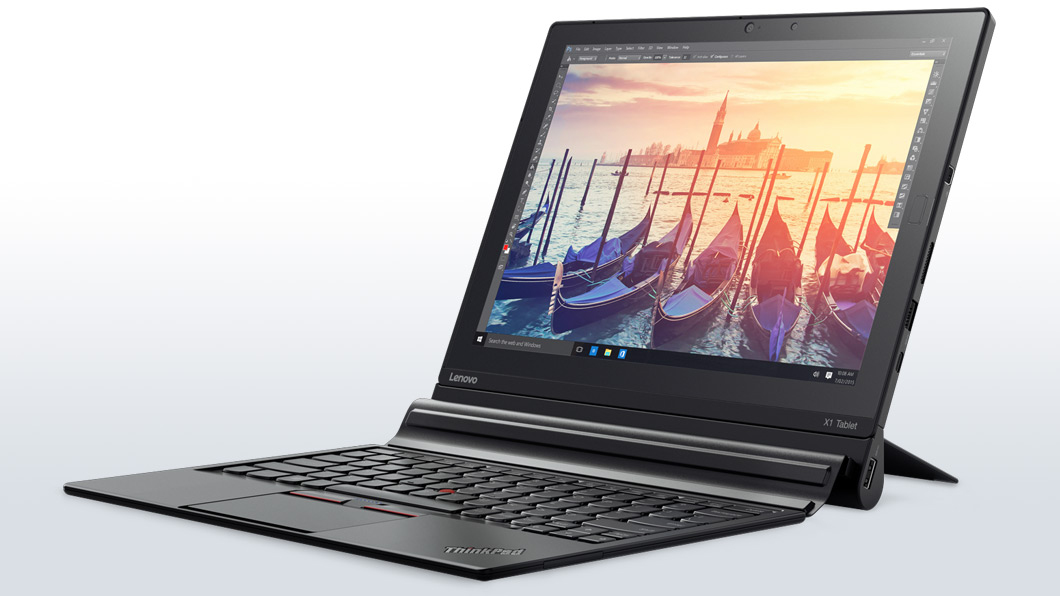

Lenovo ThinkPad X1 4G Intel® Core™ m5 LTE 256 GB 30.5 cm (12") 8 GB Wi-Fi 5 (802.11ac) Windows 10 Pro Black

Model X1Part no. 20GG002CMDEAN 190404000345

134 specifications Checked 3 days ago

Display30.5 cm (12")
Resolution2160 x 1440 pixels
ProcessorIntel® Core™ m5
Memory8 GB
Storage256 GB
Camera8 MP

See all specifications

Overview

Display: 30.5 cm (12")
Resolution: 2160 x 1440 pixels
Processor: Intel® Core™ m5
Memory: 8 GB
Storage: 256 GB
Camera: 8 MP

Brand: Lenovo
Category: Tablet
Model: X1
Part numbers: 20GG002CMD, 20GG002AUK, 20GG002BUK, 20GG002BFR, 20GG002AFR, 20GG001KUS +34 more
EAN / UPC: 190404000345, 190151999886, 764575090186, 5707271635331 +56 more
Also known as: Lenovo ThinkPad X1 4G Intel® Core™ m5 LTE 256 GB 30.5 cm (12") 8 GB Wi-Fi 5 (802.11ac) Windows 10 Pro Black

Specifications

134 specifications in 20 groups

Display

Specification	Value
Display diagonal	30.5 cm (12")
Panel type	IPS
Display resolution	2160 x 1440 pixels
LED backlight	Yes
Display brightness	360 cd/m²
Touch technology	Multi-touch
Native aspect ratio	3:2

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ m5
Processor generation	6th gen Intel® Core™ m5
Processor model	m5-6Y54
Processor cores	2
Processor threads	4
Processor boost frequency	2.7 GHz
Processor frequency	1.1 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Bus type	OPI
Conflict-Free processor	Yes
Graphics & IMC lithography	14 nm
PCI Express configurations	1x2+2x1, 2x2, 1x4, 4x1
Processor code	SR2EM
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor package size	20 X 16.5 mm
Processor series	Intel Core m5-6Y Series
Stepping	D1
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Design Power (TDP)	4.5 W
Thermal Monitoring Technologies	Yes
Tjunction	100 °C

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	LPDDR3-SDRAM
Maximum internal memory	8 GB
Memory clock speed	1866 MHz

Storage

Specification	Value
Internal storage capacity	256 GB
Storage media	SSD
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB

Graphics

Specification	Value
Graphics card family	Intel
Graphics card	HD graphics 515

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Number of built-in speakers	2
Speaker power	0.5 W

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Rear camera resolution (numeric)	8 MP
Rear camera resolution	1920 x 1080 pixels
Rear camera flash	Yes
Maximum video resolution	1920 x 1080 pixels
Video recording	Yes
Video recording modes	1080p
Front camera	Yes
Front camera resolution (numeric)	2 MP

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	4G
4G standard	LTE
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)

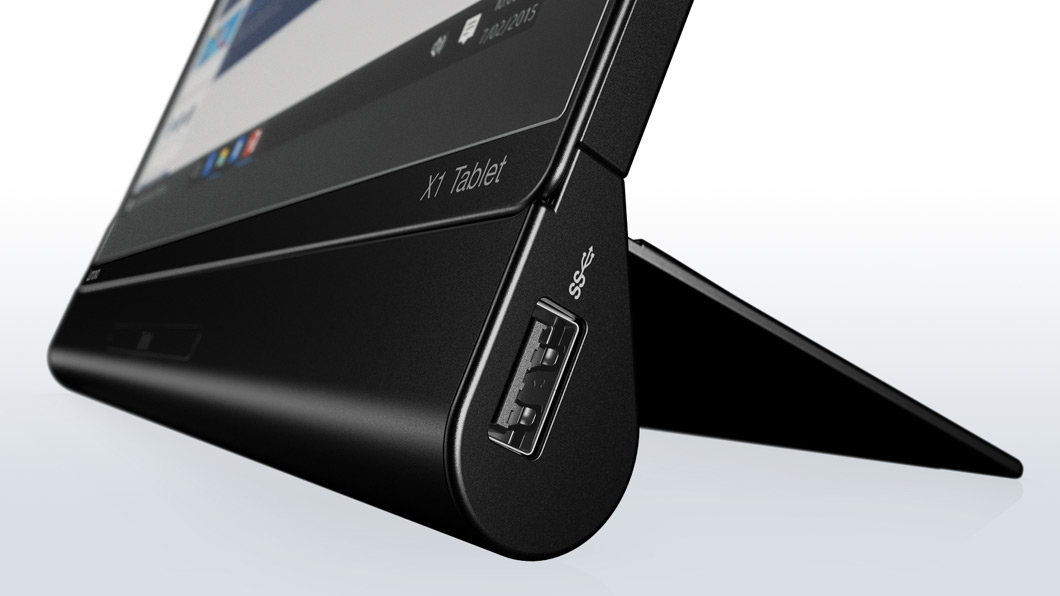

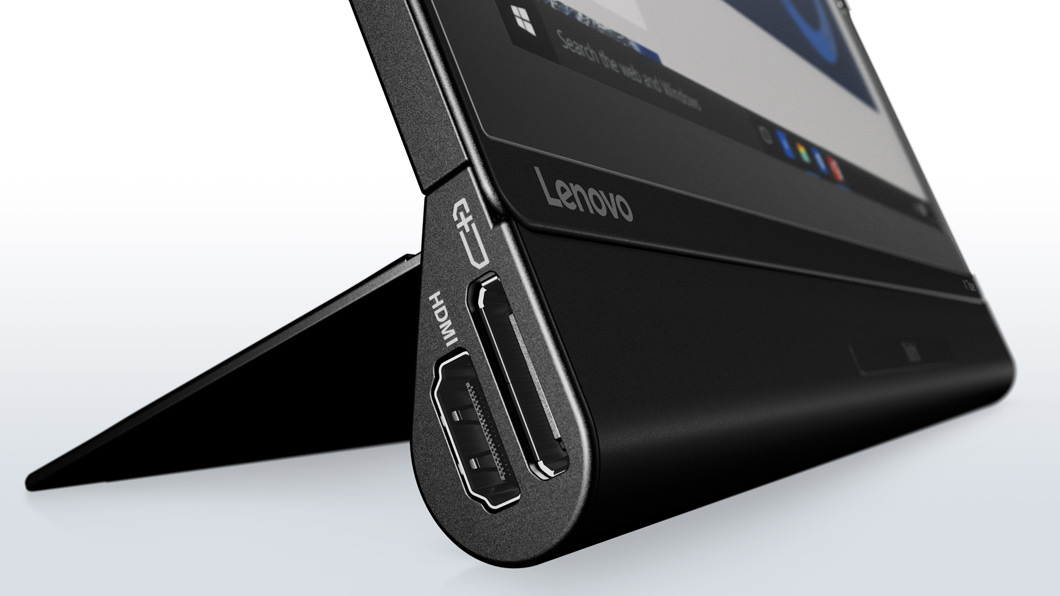

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
HDMI ports quantity	0
Microphone in	Yes
Mini DisplayPorts quantity	1
Headphone out	Yes
Headphone connectivity	3.5 mm
Combo headphone/mic port	Yes

Design

Specification	Value
Form factor	Convertible (Detachable)
Product colour	Black
Device type	Tablet PC

Performance

Specification	Value
Position location	Yes
GPS (satellite)	Yes
Trusted Platform Module (TPM)	Yes

Sensors

Specification	Value
Accelerometer	Yes
Ambient light sensor	Yes
Gyroscope	Yes
Electronic compass	Yes

Security

Specification	Value
Fingerprint reader	Yes

Software

Specification	Value
Platform	Windows
Operating system installed	Windows 10 Pro
Operating system version	64

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	37 Wh
Number of battery cells	2
Continuous video playback time (max)	10 h

Power

Specification	Value
AC adapter power	45 W

Weight & dimensions

Specification	Value
Width	291.5 mm
Depth	209.5 mm
Height	13.7 mm
Weight	1.07 kg

Packaging content

Specification	Value
AC adapter included	Yes
Keyboard included	Yes
Manual	Yes

Other features

Specification	Value
Intel segment tagging	Enterprise
Processor socket	BGA 1515
Processor ARK ID	88202
