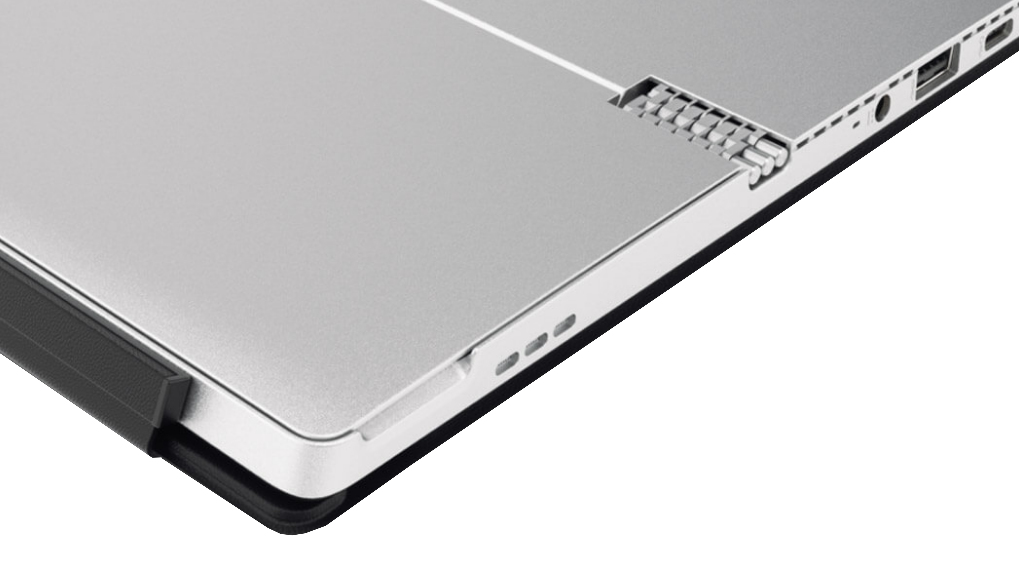

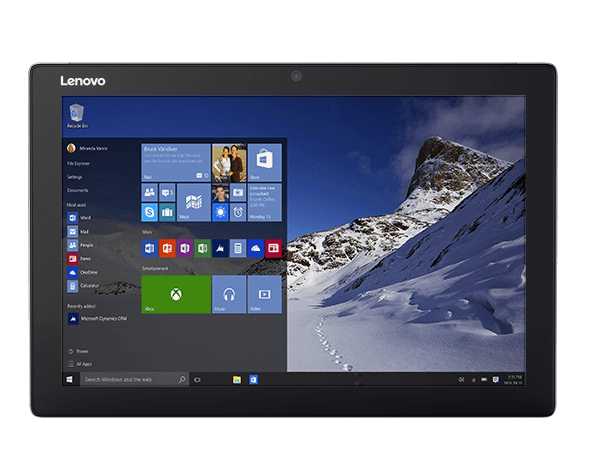

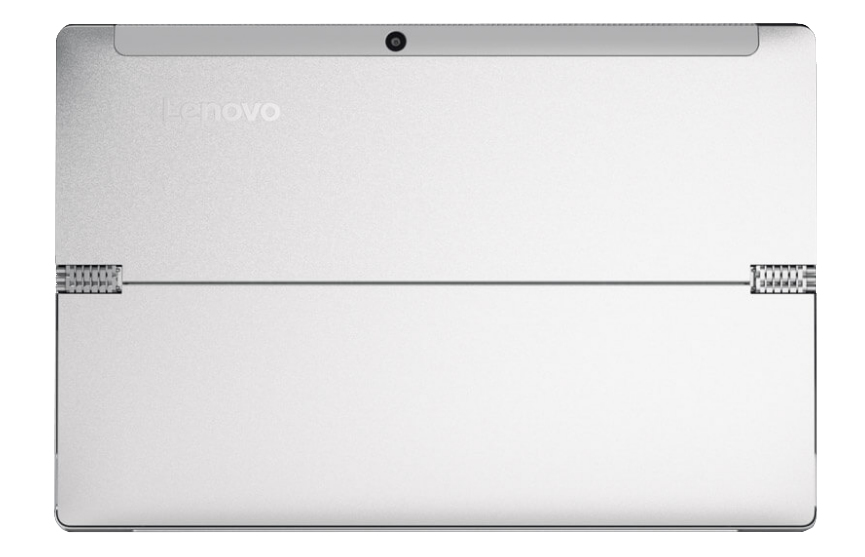

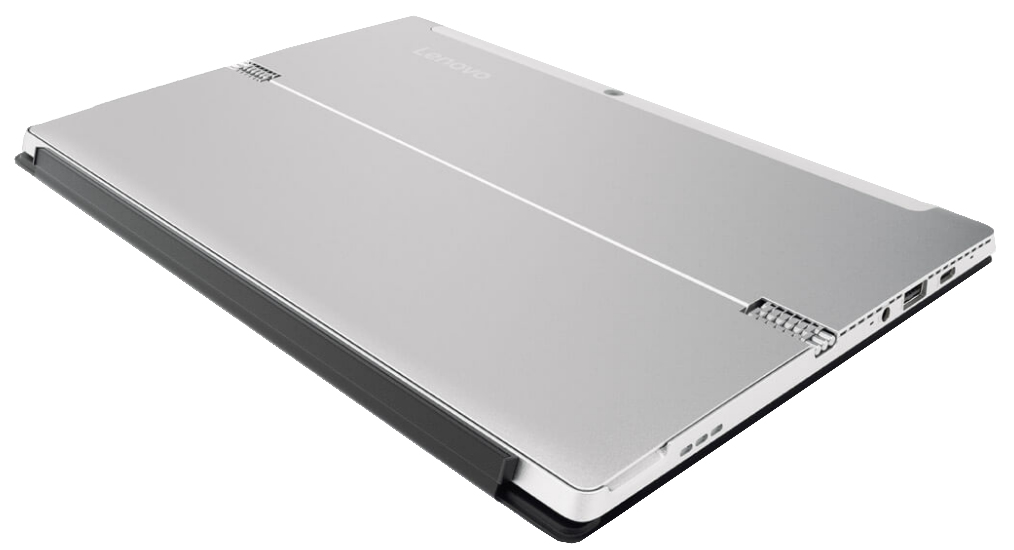

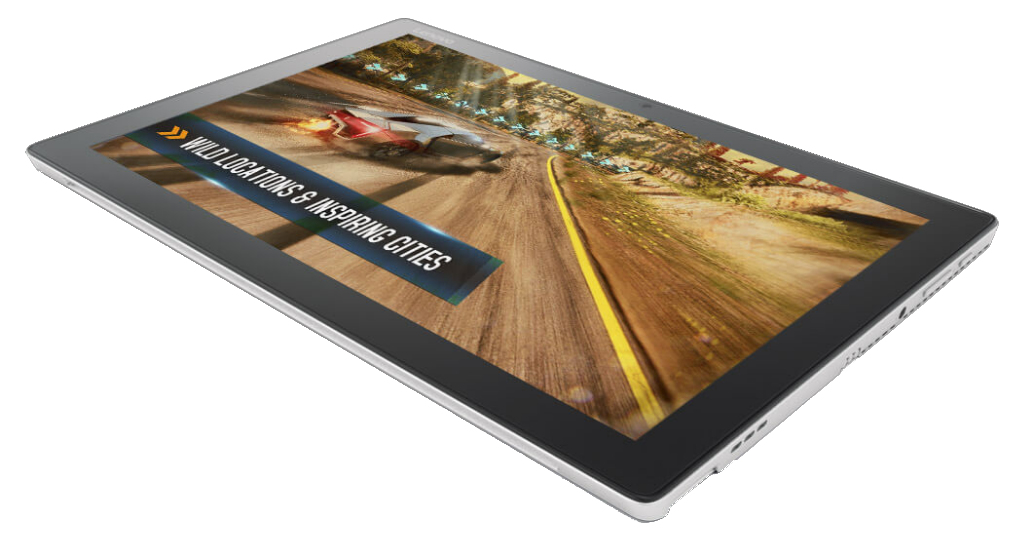

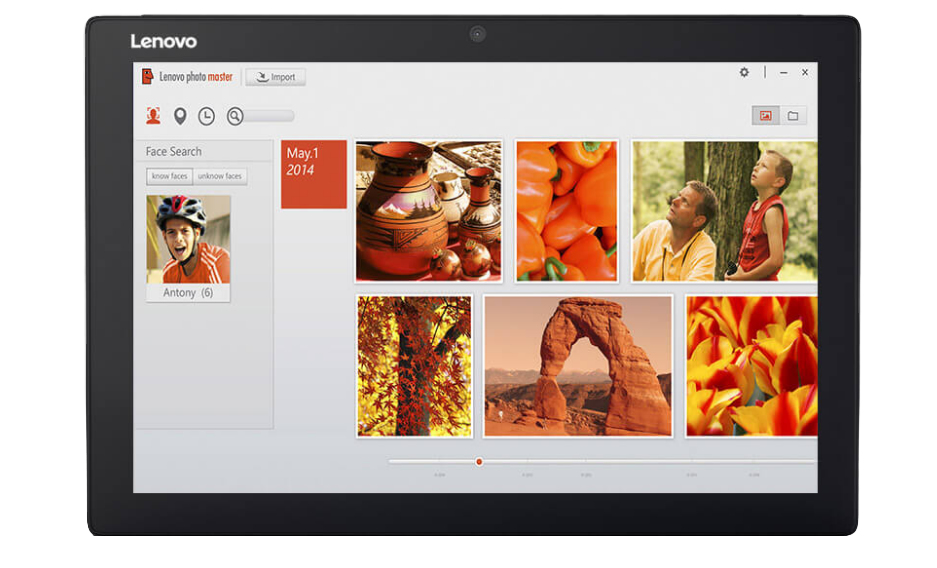

Lenovo IdeaPad Miix 510 Intel® Core™ i3

128 GB 31 cm (12.2") 4 GB Wi-Fi 5 (802.11ac) Windows 10 Pro Black, Silver

Model 510Part no. 80U1000HSPEAN 190725072380

120 specifications Checked 2 days ago

Display31 cm (12.2")
Resolution1920 x 1200 pixels
ProcessorIntel® Core™ i3
Memory4 GB
Storage128 GB
Camera5 MP

See all specifications

Overview

Display: 31 cm (12.2")
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 128 GB
Camera: 5 MP

Brand: Lenovo
Category: Tablet
Model: 510
Part numbers: 80U1000HSP, 80U1000EGE, 80U1000AGE, 80U10006GE, 80U10002GE, 80U1000MSP +34 more
EAN / UPC: 190725072380, 190725072625, 4058154131398, 190725072441 +56 more
Also known as: Lenovo IdeaPad Miix 510 Intel® Core™ i3 128 GB 31 cm (12.2") 4 GB Wi-Fi 5 (802.11ac) Windows 10 Pro Black, Silver

Specifications

120 specifications in 17 groups

Display

Specification	Value
Display diagonal	31 cm (12.2")
Panel type	IPS
Display resolution	1920 x 1200 pixels
LED backlight	Yes
Display brightness	320 cd/m²
Touch technology	Multi-touch
Touchscreen type	Capacitive
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	6th gen Intel® Core™ i3
Processor model	i3-6100U
Processor cores	2
Processor threads	4
Processor frequency	2.3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	QPI
Configurable TDP-down frequency	0.8 GHz
Conflict-Free processor	Yes
Graphics & IMC lithography	14 nm
PCI Express configurations	1x4, 4x1
Processor code	SR2EU
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	42 X 24 mm
Processor series	Intel Core i3-6100 series
Stepping	D1
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
System bus rate	4 GT/s
Thermal Design Power (TDP)	15 W
Thermal Monitoring Technologies	Yes
Tjunction	100 °C

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	4 GB
Memory clock speed	2133 MHz

Storage

Specification	Value
Internal storage capacity	128 GB
Storage media	SSD

Graphics

Specification	Value
Graphics card family	Intel
Graphics card	HD Graphics 520

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Number of built-in speakers	2
Audio system	Dolby Advanced Audio
Speaker power	1 W

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Rear camera resolution (numeric)	5 MP
Auto focus	Yes
Front camera	Yes
Front camera resolution (numeric)	2 MP

Network

Specification	Value
Bluetooth	Yes
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

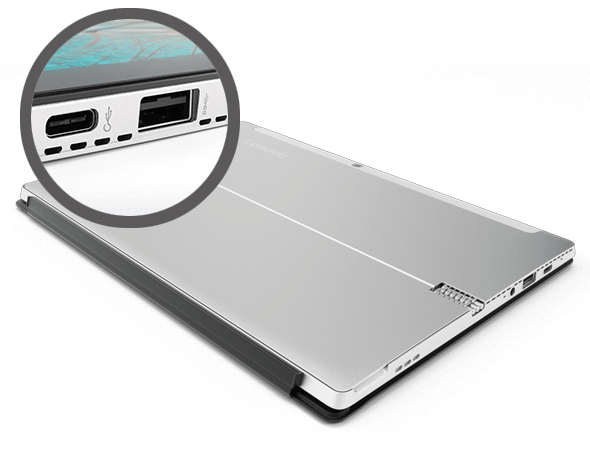

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	0
Microphone in	No
Headphone out	No
Combo headphone/mic port	Yes

Design

Specification	Value
Form factor	Slate
Product colour	Black, Silver
Device type	Tablet PC

Sensors

Specification	Value
Accelerometer	Yes

Software

Specification	Value
Platform	Windows
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	39 Wh
Number of battery cells	2
Battery life (max)	7.5 h

Weight & dimensions

Specification	Value
Width	300 mm
Depth	205 mm
Height	9.9 mm
Weight	880 g

Packaging content

Specification	Value
Keyboard included	No
Manual	Yes

Other features

Specification	Value
Processor socket	BGA 1356
Processor ARK ID	88180
