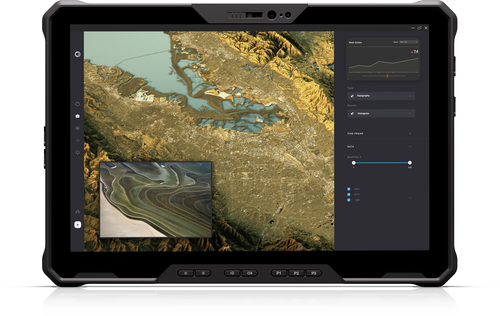

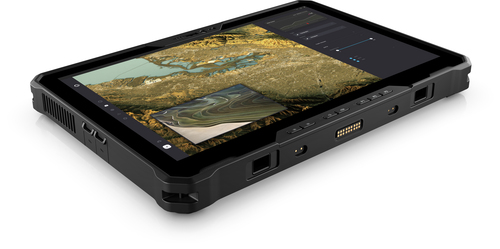

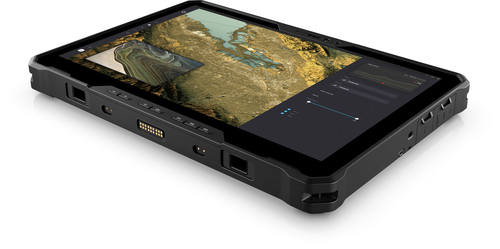

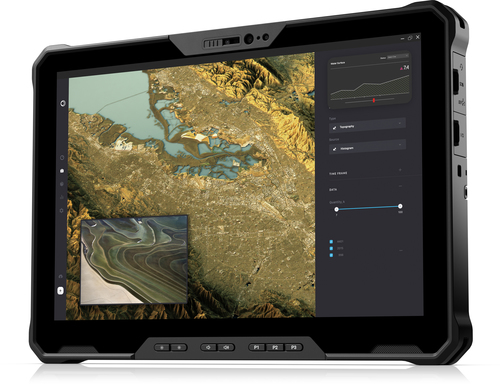

Dell 7230 Rugged Extreme

7230 Rugged Extreme

Model 7230 Rugged ExtremePart no. 3D50CEAN 884116446347

92 specifications Checked today

Display30.5 cm (12")
Resolution1920 x 1200 pixels
ProcessorIntel® Core™ i5
Memory16 GB
Storage256 GB
Camera11 MP

See all specifications

Overview

Display: 30.5 cm (12")
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 256 GB
Camera: 11 MP

Brand: Dell
Category: Tablet
Model: 7230 Rugged Extreme
Part numbers: 3D50C, S006LR7230USVI, XCTOL723012EMEA_VP, XCTOLR7230CAFVP, xctolr7230cavp, CR0MD +3 more
EAN / UPC: 884116446347, 884116470663
Also known as: DELL Latitude 7230 Rugged Extreme Intel® Core™ i5 256 GB 30.5 cm (12") 16 GB Wi-Fi 6E (802.11ax) Windows 11 Pro Black

Specifications

92 specifications in 21 groups

Display

Specification	Value
Display diagonal	30.5 cm (12")
Panel type	WVA
Display resolution	1920 x 1200 pixels
LED backlight	Yes
Display brightness	1200 cd/m²
Anti-glare screen	Yes
HD type	Full HD+
Pixel density	188 ppi

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	12th gen Intel® Core™ i5
Processor model	i5-1240U
Processor cores	10
Processor boost frequency	4.4 GHz
Performance cores	2
Efficient cores	8
Performance-core Max Turbo Frequency	4.4 GHz
Efficient-core Max Turbo Frequency	3.3 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Maximum internal memory	16 GB
Memory clock speed	5200 MHz

Storage

Specification	Value
Internal storage capacity	256 GB
Storage media	SSD
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
NVMe	Yes
SSD interface	M.2, PCI Express

Graphics

Specification	Value
Graphics card family	Intel
Graphics card	Iris Xe Graphics

Audio

Specification	Value
Number of built-in speakers	2
Number of microphones	2
Audio system	Realtek ALC3254
Speaker power	2 W

Camera

Specification	Value
Rear camera type	Single camera
Rear camera resolution (numeric)	11 MP
Rear camera resolution	1920 x 1080 pixels
Video capturing speed	30 fps
Front camera	Yes
Front camera resolution (numeric)	5 MP

Network

Specification	Value
Mobile network connection	No
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211

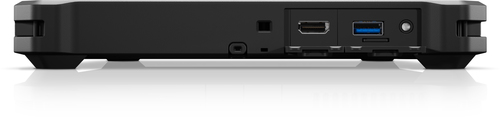

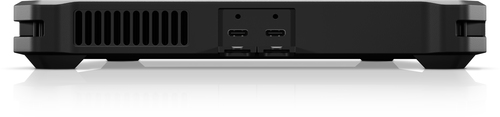

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Thunderbolt technology	Yes
Thunderbolt 4 ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
Combo headphone/mic port	Yes

Design

Specification	Value
Form factor	Slate
Product colour	Black
Device type	Tablet PC
MIL-STD-810G compliant	Yes

Performance

Specification	Value
Assisted GPS (A-GPS)	Yes
Trusted Platform Module (TPM)	Yes

Sensors

Specification	Value
Accelerometer	Yes
Ambient light sensor	Yes
Gyroscope	Yes
Proximity sensor	Yes
Hall sensor	Yes
Electronic compass	Yes
Magnetometer	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Wedge

Software

Specification	Value
Platform	Windows
Operating system installed	Windows 11 Pro

Battery

Specification	Value
Battery included	Yes
Battery capacity	35.6 Wh
Number of battery cells	2
Battery voltage	7.6 V
Fast charging	Yes
Battery recharge time	4 h

Power

Specification	Value
AC adapter power	65 W
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes

Endurance

Specification	Value
International Protection (IP) code	IP65

Weight & dimensions

Specification	Value
Width	296 mm
Depth	203 mm
Height	23.9 mm
Weight	1.26 kg

Sustainability

Specification	Value
Sustainability certificates	China Energy Label (CEL), ENERGY STAR, EPEAT Silver

Certificates

Specification	Value
Compliance certificates	CECP, China RoHS, RoHS, WEEE

Operational conditions

Specification	Value
Operating temperature (T-T)	-29 - 63 °C
Storage temperature (T-T)	-51 - 71 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 12192 m
Non-operating altitude	0 - 12192 m
