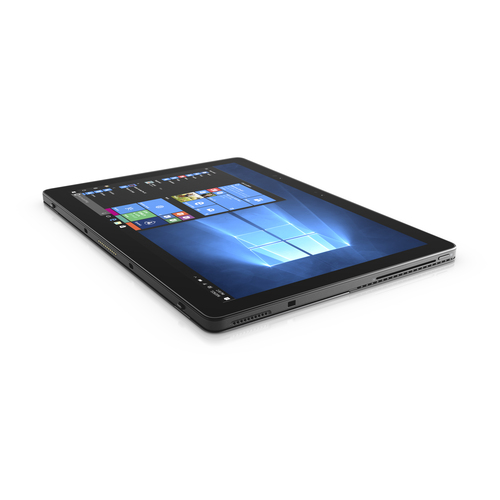

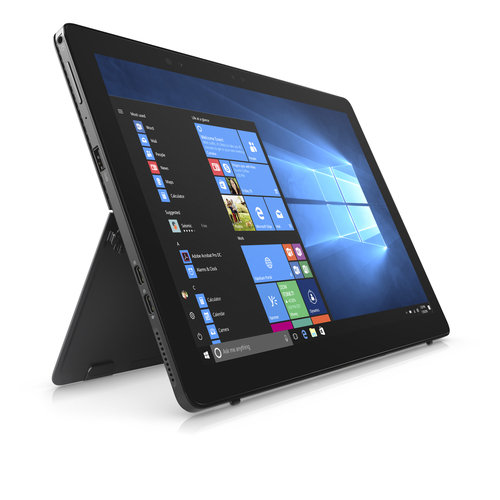

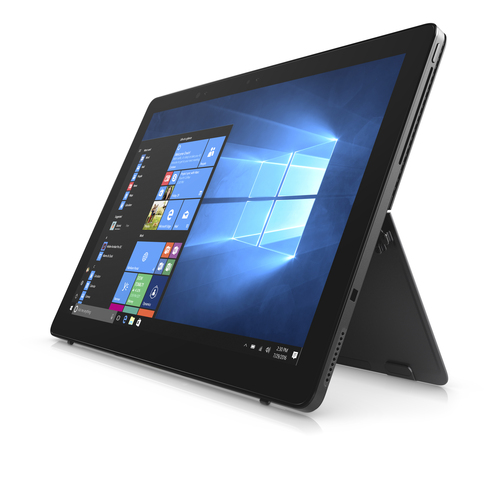

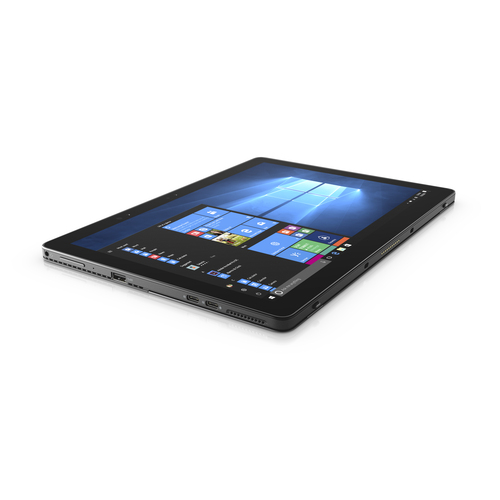

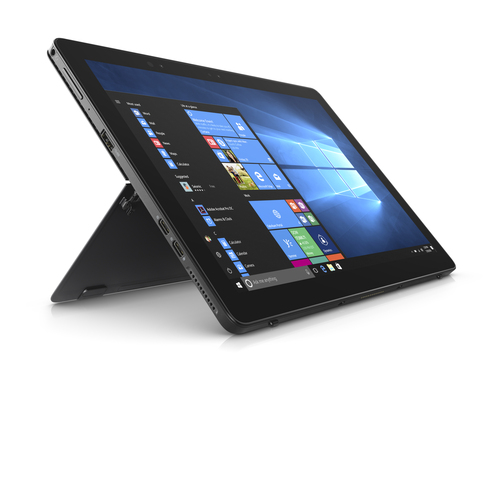

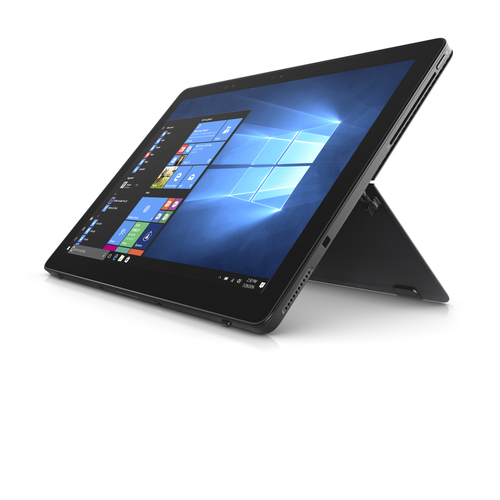

Dell Latitude 5285 Intel® Core™ i5

256 GB 31.2 cm (12.3") 8 GB Wi-Fi 5 (802.11ac) Windows 10 Pro Black

Model 5285Part no. GKVKCEAN 5397064011635

136 specifications Checked 2 days ago

Display31.2 cm (12.3")
Resolution1920 x 1280 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage256 GB
Camera8 MP

See all specifications

Overview

Display: 31.2 cm (12.3")
Resolution: 1920 x 1280 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 256 GB
Camera: 8 MP

Brand: Dell
Category: Tablet
Model: 5285
Part numbers: GKVKC, XCTOL528512MMCLA, N01L528512, N02L528512, N03L528512, N04L528512 +34 more
EAN / UPC: 5397064011635, 884116259213, 884116254140, 5397064011642 +9 more
Also known as: DELL Latitude 5285 Intel® Core™ i5 256 GB 31.2 cm (12.3") 8 GB Wi-Fi 5 (802.11ac) Windows 10 Pro Black

Specifications

136 specifications in 21 groups

Display

Specification	Value
Display diagonal	31.2 cm (12.3")
Display resolution	1920 x 1280 pixels
LED backlight	Yes
Display brightness	340 cd/m²
Touch technology	Multi-touch
Touchscreen type	Capacitive
Native aspect ratio	3:2

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	7th gen Intel® Core™ i5
Processor model	i5-7300U
Processor cores	2
Processor threads	4
Processor boost frequency	3.5 GHz
Processor frequency	2.6 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	OPI
Configurable TDP-down frequency	0.8 GHz
Conflict-Free processor	Yes
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
Processor code	SR340
Processor codename	Kaby Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	42 X 24 mm
Processor series	Intel Core i5-7300 Mobile Series
Stepping	H0
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
System bus rate	4 GT/s
Thermal Design Power (TDP)	15 W
Thermal Monitoring Technologies	Yes
Tjunction	100 °C

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	LPDDR3-SDRAM
Maximum internal memory	8 GB
Memory clock speed	1866 MHz

Storage

Specification	Value
Internal storage capacity	256 GB
Storage media	SSD
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
Graphics card family	Intel
Graphics card	HD Graphics 620
Maximum graphics card memory	32768 MB

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Number of built-in speakers	2
Speaker power	2 W

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Rear camera resolution (numeric)	8 MP
Rear camera resolution	3264 x 2448 pixels
Auto focus	Yes
Video recording	Yes
Video capturing speed	30 fps
Front camera	Yes
Front camera resolution (numeric)	5 MP

Network

Specification	Value
Bluetooth	Yes
Bluetooth version	4.1
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
HDMI ports quantity	0
Microphone in	No
Headphone out	No
Headphone connectivity	3.5 mm
Combo headphone/mic port	Yes
DC-in jack	Yes

Design

Specification	Value
Form factor	Convertible (Detachable)
Product colour	Black
Device type	Tablet PC

Performance

Specification	Value
Trusted Platform Module (TPM)	Yes

Security

Specification	Value
Password protection	Yes
Cable lock slot	Yes
Cable lock slot type	Noble

Software

Specification	Value
Platform	Windows
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Trial software	Microsoft Office, McAfee Security Center

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4

Power

Specification	Value
AC adapter power	65 W
AC adapter input voltage	100 - 240 V
AC adapter frequency	47/63 Hz

Weight & dimensions

Specification	Value
Width	292 mm
Depth	208.8 mm
Height	9.76 mm
Weight	856 g

Packaging content

Specification	Value
AC adapter included	Yes
Keyboard included	No
Cables included	AC
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 10668 m

Other features

Specification	Value
Dell E-Value Code	N02L528512WERBTP
Docking connector	Yes
Pixel pitch	0.135 x 0.135 mm
Processor socket	BGA 1356
Processor ARK ID	97472
