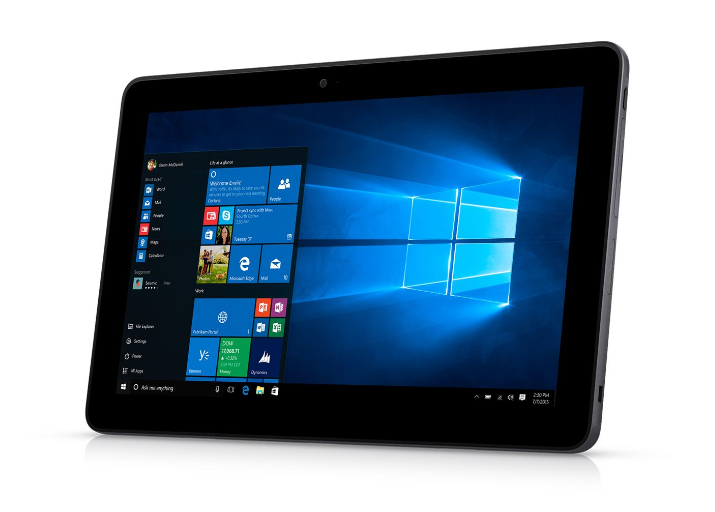

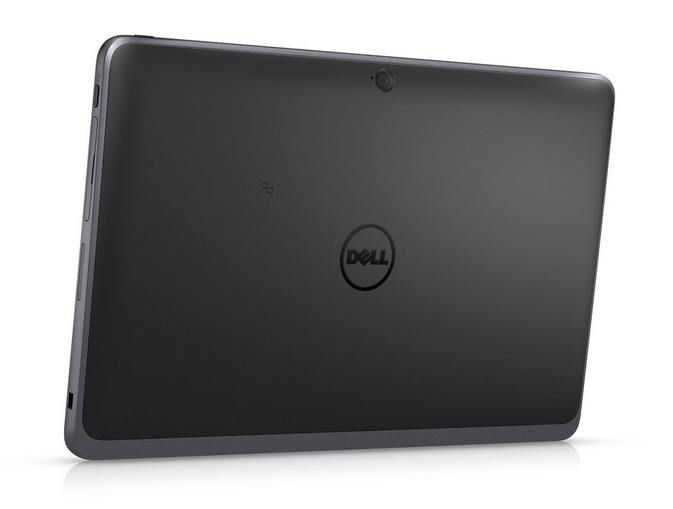

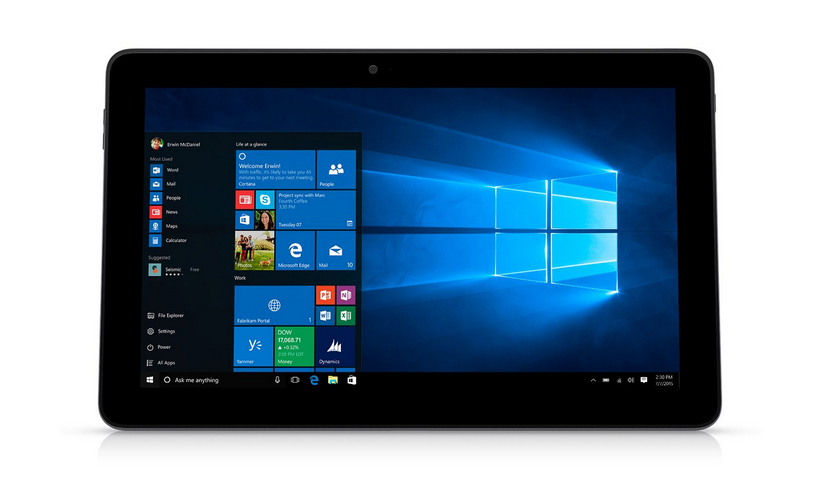

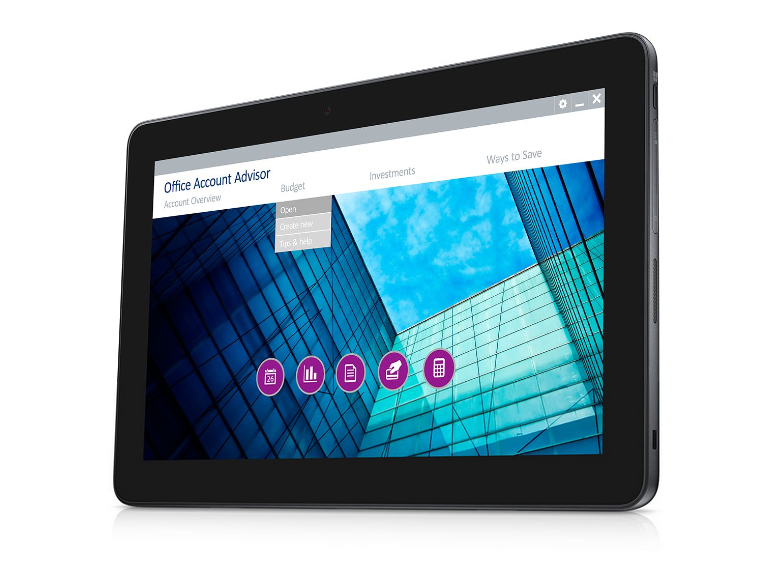

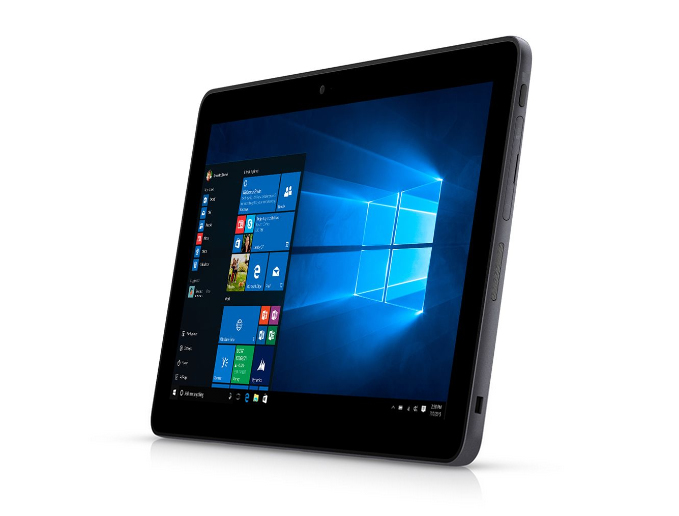

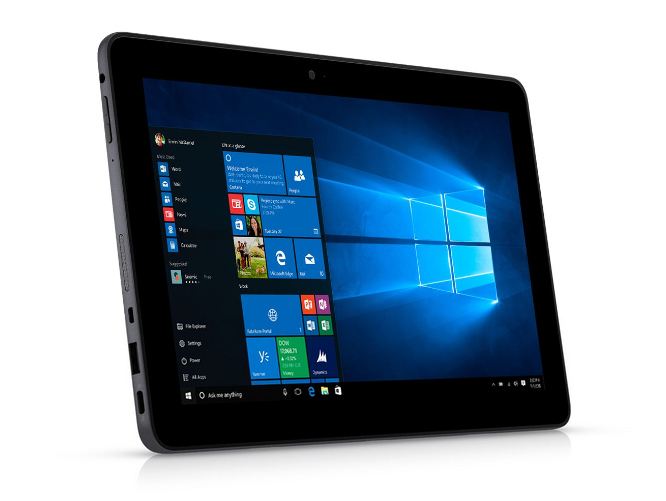

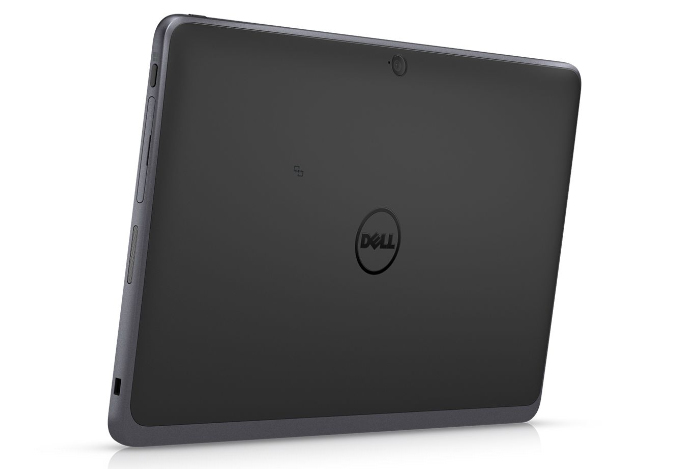

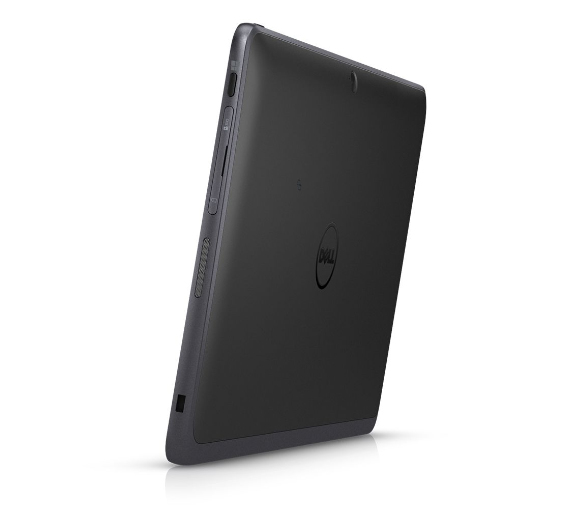

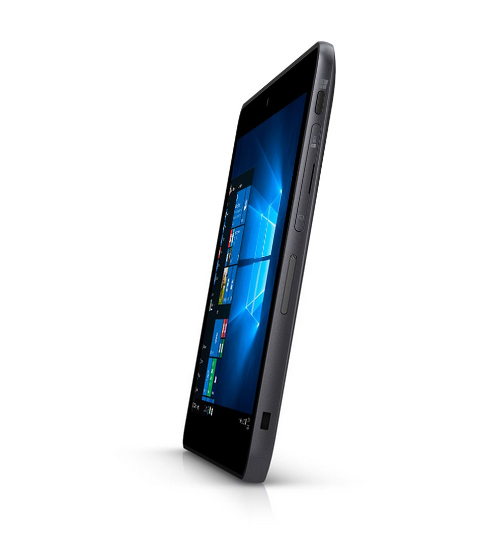

Dell Latitude 5175 Intel® Core™ m3

128 GB 27.4 cm (10.8") 4 GB Wi-Fi 5 (802.11ac) Windows 10 Home Black

Model 5175Part no. 5175-1846EAN 5397063822805

135 specifications Checked 2 days ago

Display27.4 cm (10.8")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ m3
Memory4 GB
Storage128 GB
Camera8 MP

See all specifications

Overview

Display: 27.4 cm (10.8")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ m3
Memory: 4 GB
Storage: 128 GB
Camera: 8 MP

Brand: Dell
Category: Tablet
Model: 5175
Part numbers: 5175-1846, 5175-3192, 5175-3208, N001L517510AMERW10P, N002L517510AMERW10P, N202L517510AMERW10P +34 more
EAN / UPC: 5397063822805, 5397063822829, 5397063822843, 5397063821723 +26 more
Also known as: DELL Latitude 5175 Intel® Core™ m3 128 GB 27.4 cm (10.8") 4 GB Wi-Fi 5 (802.11ac) Windows 10 Home Black

Specifications

135 specifications in 20 groups

Display

Specification	Value
Display diagonal	27.4 cm (10.8")
Display resolution	1920 x 1080 pixels
LED backlight	Yes
Display brightness	360 cd/m²
Touch technology	Multi-touch
Touchscreen type	Capacitive
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ m3
Processor generation	6th gen Intel® Core™ m3
Processor model	m3-6Y30
Processor cores	2
Processor threads	4
Processor boost frequency	2.2 GHz
Processor frequency	0.9 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Bus type	OPI
Conflict-Free processor	Yes
Graphics & IMC lithography	14 nm
PCI Express configurations	1x2+2x1, 2x2, 1x4, 4x1
Processor code	SR2EN
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor package size	20 X 16.5 mm
Processor series	Intel Core m3-6Y series
Stepping	D1
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Design Power (TDP)	4.5 W
Thermal Monitoring Technologies	Yes
Tjunction	100 °C

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	LPDDR3-SDRAM
Maximum internal memory	8 GB
Memory clock speed	1600 MHz

Storage

Specification	Value
Internal storage capacity	128 GB
Storage media	SSD
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
Graphics card family	Intel

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Rear camera resolution (numeric)	8 MP
Auto focus	Yes
Maximum video resolution	1920 x 1080 pixels
Video recording	Yes
Front camera	Yes
Front camera resolution (numeric)	5 MP

Network

Specification	Value
Bluetooth	Yes
Bluetooth version	4.1
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	0
Micro HDMI ports quantity	1
Microphone in	No
Headphone out	No
Headphone connectivity	3.5 mm
Combo headphone/mic port	Yes

Design

Specification	Value
Form factor	Slate
Product colour	Black
Device type	Tablet PC

Performance

Specification	Value
Position location	No
GPS (satellite)	No

Security

Specification	Value
Password protection	Yes
Cable lock slot	Yes
Cable lock slot type	Noble

Software

Specification	Value
Platform	Windows
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Built-in Visuals Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes

Battery

Specification	Value
Battery capacity	35 Wh
Number of battery cells	2

Power

Specification	Value
AC adapter power	30 W
AC adapter input voltage	100 - 240 V
AC adapter frequency	50 - 60 Hz

Weight & dimensions

Specification	Value
Width	279.8 mm
Depth	10.8 mm
Height	176.8 mm
Weight	710 g

Packaging content

Specification	Value
AC adapter included	Yes
Keyboard included	No
Manual	Yes
Quick start guide	Yes
Warranty card	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m

Other features

Specification	Value
Intel segment tagging	Enterprise
Processor socket	BGA 1515
USB connector type	USB Type-A, USB Type-C
Processor ARK ID	88198
