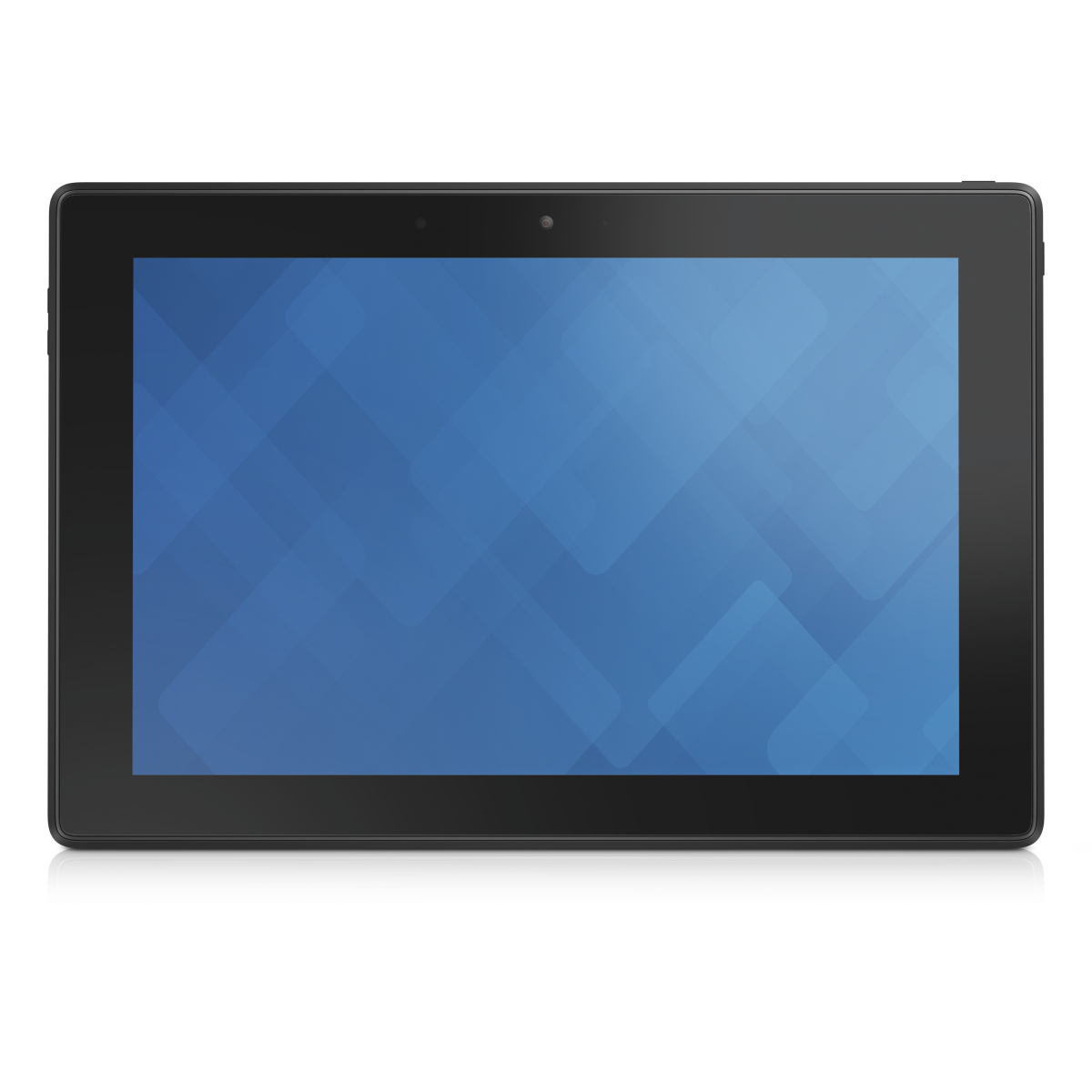

Dell Venue 5055 Intel Atom®

32 GB 25.6 cm (10.1") 2 GB Wi-Fi 4 (802.11n) Windows 8.1 Pro Black

Model 5055Part no. CAV0500SP10A02OO1YJPEAN 5397063773848

112 specifications Checked 3 days ago

Display25.6 cm (10.1")
Resolution1280 x 800 pixels
ProcessorIntel Atom®
Memory2 GB
Storage32 GB
Camera5 MP

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1280 x 800 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 32 GB
Camera: 5 MP

Brand: Dell
Category: Tablet
Model: 5055
Part numbers: CAV0500SP10A02OO1YJP, CAV0500SP10A02MN1OJP, CAV0300SP10A02OO1YJP, CAV0200SP10A02OO1YJP, JFWDP, JFWDP+630-15804 +15 more
EAN / UPC: 5397063773848, 5397063736928, 5397063758630, 5397063758647 +3 more
Also known as: DELL Venue 5055 Intel Atom® 32 GB 25.6 cm (10.1") 2 GB Wi-Fi 4 (802.11n) Windows 8.1 Pro Black

Specifications

112 specifications in 22 groups

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Panel type	IPS
Display resolution	1280 x 800 pixels
LED backlight	Yes
Display brightness	400 cd/m²
Touch technology	Multi-touch
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3735F
Processor cores	4
Processor threads	4
Processor boost frequency	1.83 GHz
Processor frequency	1.33 GHz
Processor cache	2 MB
Processor cache type	L2
Motherboard chipset	Intel BayTrail-T SoC
Conflict-Free processor	Yes
Graphics & IMC lithography	22 nm
Processor code	SR1UB
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	17 x 17 mm
Processor series	Intel Atom Z3700 Series
Scenario Design Power (SDP)	2.2 W
Stepping	C0

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3L-SDRAM
Maximum internal memory	2 GB
Memory clock speed	1333 MHz

Storage

Specification	Value
Internal storage capacity	32 GB
Storage media	Flash
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
Graphics card family	Intel
Graphics card	HD Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Number of built-in speakers	2

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Rear camera resolution (numeric)	5 MP
Rear camera resolution	3264 x 2448 pixels
Video recording	Yes
Video recording modes	720p
Video capturing speed	30 fps
Front camera	Yes
Front camera resolution (numeric)	1.2 MP

Network

Specification	Value
Bluetooth	Yes
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
HDMI ports quantity	0
Micro HDMI ports quantity	1
Microphone in	No
Headphone out	Yes
Headphone connectivity	3.5 mm

Messaging

Specification	Value
E-mail	Yes

Design

Specification	Value
Form factor	Slate
Product colour	Black
Device type	Mobile tablet

Performance

Specification	Value
Position location	No
GPS (satellite)	No

Sensors

Specification	Value
Accelerometer	Yes
Gyroscope	Yes
Electronic compass	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Noble

Software

Specification	Value
Platform	Windows
Operating system installed	Windows 8.1 Pro
Operating system version	32-bit

Processor special features

Specification	Value
Embedded options available	No
Intel 64	Yes
Intel Smart Connect Technology	No
Intel Virtualization Technology (VT-x)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	32 Wh
Number of battery cells	2
Battery voltage	3.7 V
Battery life (max)	9.4 h

Power

Specification	Value
AC adapter power	10 W
AC adapter input voltage	100 - 240 V
AC adapter frequency	50 - 60 Hz
AC adapter output voltage	5 V
AC adapter output current	2 A

Weight & dimensions

Specification	Value
Width	262.6 mm
Depth	9.9 mm
Height	175.8 mm
Weight	656.9 g

Packaging content

Specification	Value
Keyboard included	No
Quick start guide	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-16 - 3048 m
Non-operating altitude	-15.2 - 10668 m

Other features

Specification	Value
64-bit computing	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Processor socket	BGA 592
Processor ARK ID	80274
