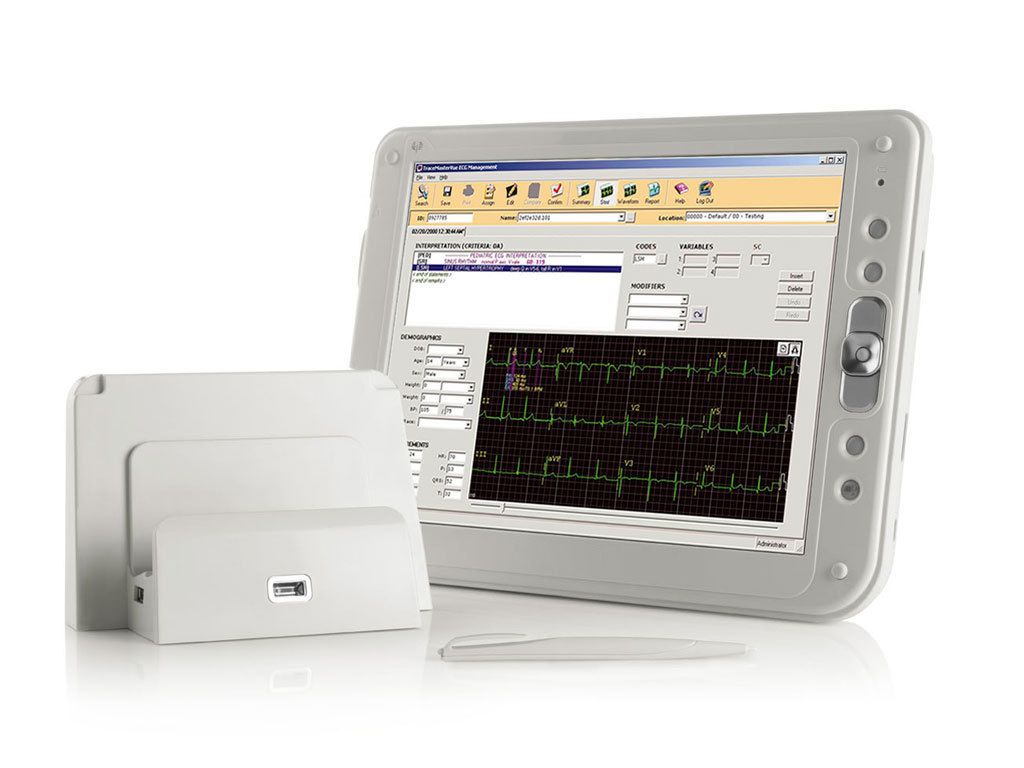

Barco MTPP-0212 Intel Atom®
30.7 cm (12.1") 1 GB Windows 7 Embedded White
Model MTPP-0212Part no. K9307016EAN 5499778000513
64 specifications Checked 3 days ago
- Display30.7 cm (12.1")
- Resolution1024 x 768 pixels
- ProcessorIntel Atom®
- Memory1 GB
- Storage4 GB
- Battery2400 mAh
Overview
- Display
- 30.7 cm (12.1")
- Resolution
- 1024 x 768 pixels
- Processor
- Intel Atom®
- Memory
- 1 GB
- Storage
- 4 GB
- Battery
- 2400 mAh
- Brand
- Barco
- Category
- Tablet
- Model
- MTPP-0212
- Part number
- K9307016
- EAN / UPC
- 5499778000513
- Also known as
- Barco MTPP-0212 Intel Atom® 30.7 cm (12.1") 1 GB Windows 7 Embedded White
Specifications
64 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 30.7 cm (12.1") |
| Display resolution | 1024 x 768 pixels |
| Display brightness | 170 cd/m² |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | N270 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 1.6 GHz |
| Processor cache | 0.512 MB |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 12 |
| Conflict-Free processor | No |
| FSB Parity | No |
| Number of Processing Die Transistors | 47 M |
| Processing Die size | 26 mm² |
| Processor code | SLB73 |
| Processor front side bus | 533 MHz |
| Processor lithography | 45 nm |
| Processor operating modes | 32-bit |
| Processor package size | 22 x 22 mm |
| Stepping | C0 |
| Supported instruction sets | SSE2, SSE3 |
| Thermal Design Power (TDP) | 2.5 W |
| Thermal Monitoring Technologies | Yes |
| Tjunction | 90 °C |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
Storage
| Specification | Value |
|---|---|
| Storage media | Flash |
| Card reader integrated | Yes |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Embedded |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | No |
| Intel Demand Based Switching | No |
| Intel Enhanced Halt State | No |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | No |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 2400 mAh |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.75 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100-240V |
| Battery type | Li-ion |
| Contrast ratio (typical) | 250:1 |
| Dimensions (WxDxH) | 313.5 x 35.2 x 235.5 mm |
| Display type | LCD |
| Networking features | Gigabit Ethernet |
| Power supply type | AC/DC |
| Processor socket | Socket F (1207) |
| Relative humidity | 5 - 85% |
| Total storage capacity | 4 GB |
| VGA (D-Sub) ports quantity | 1 |
| Processor ARK ID | 36331 |
