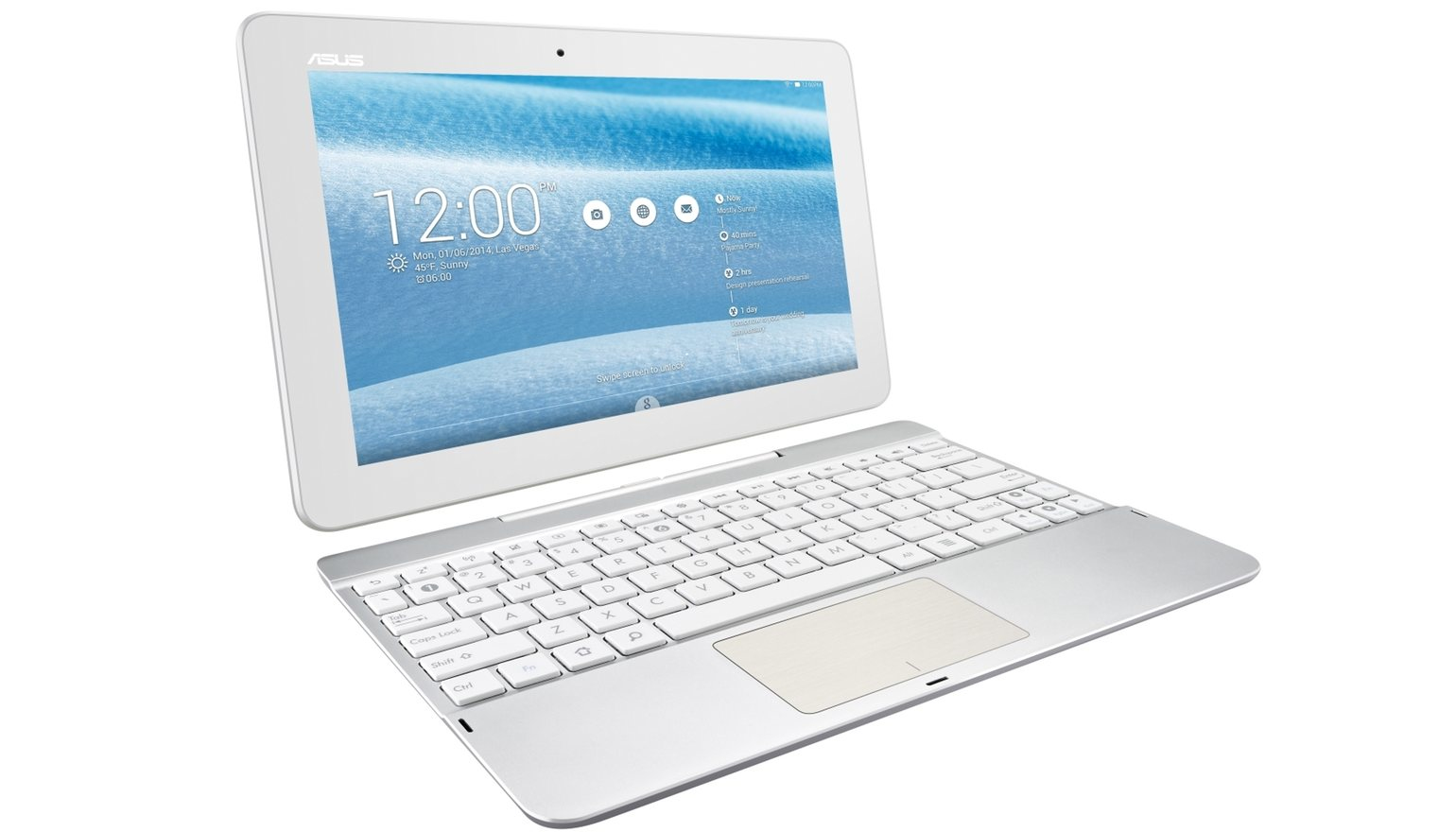

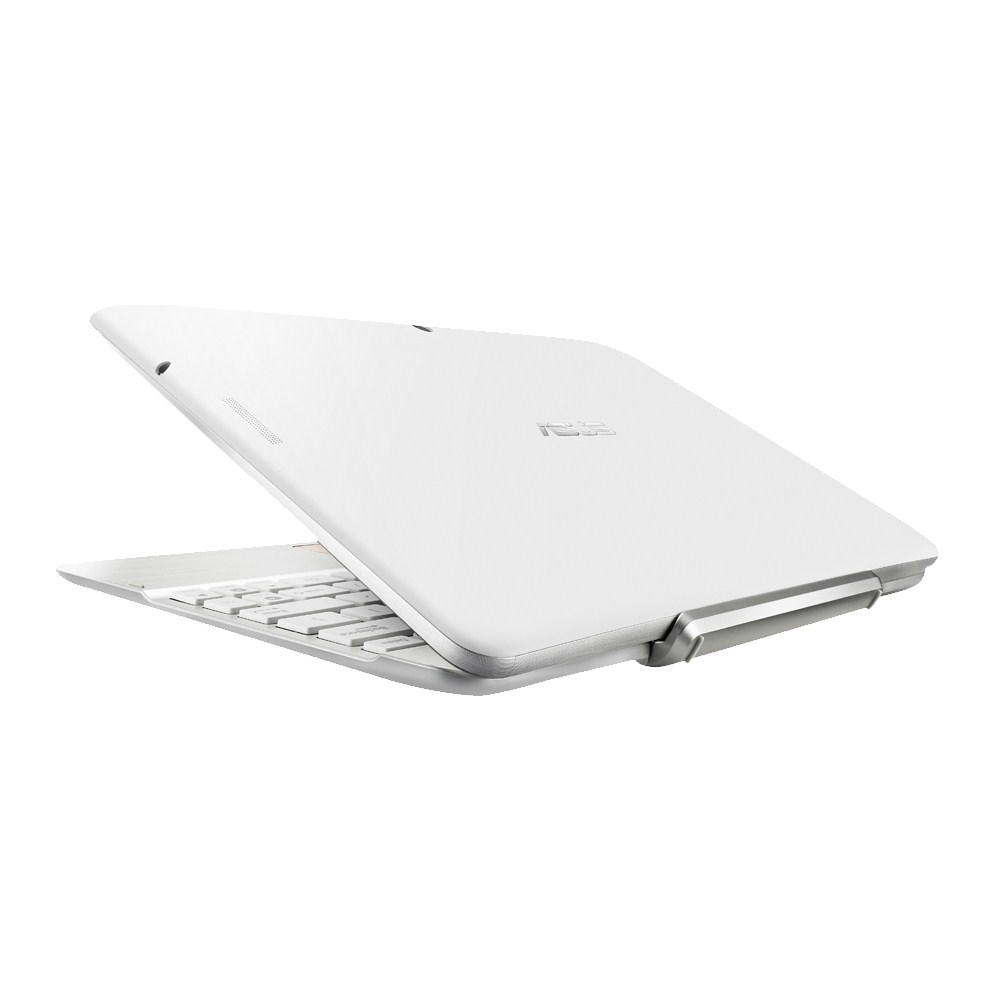

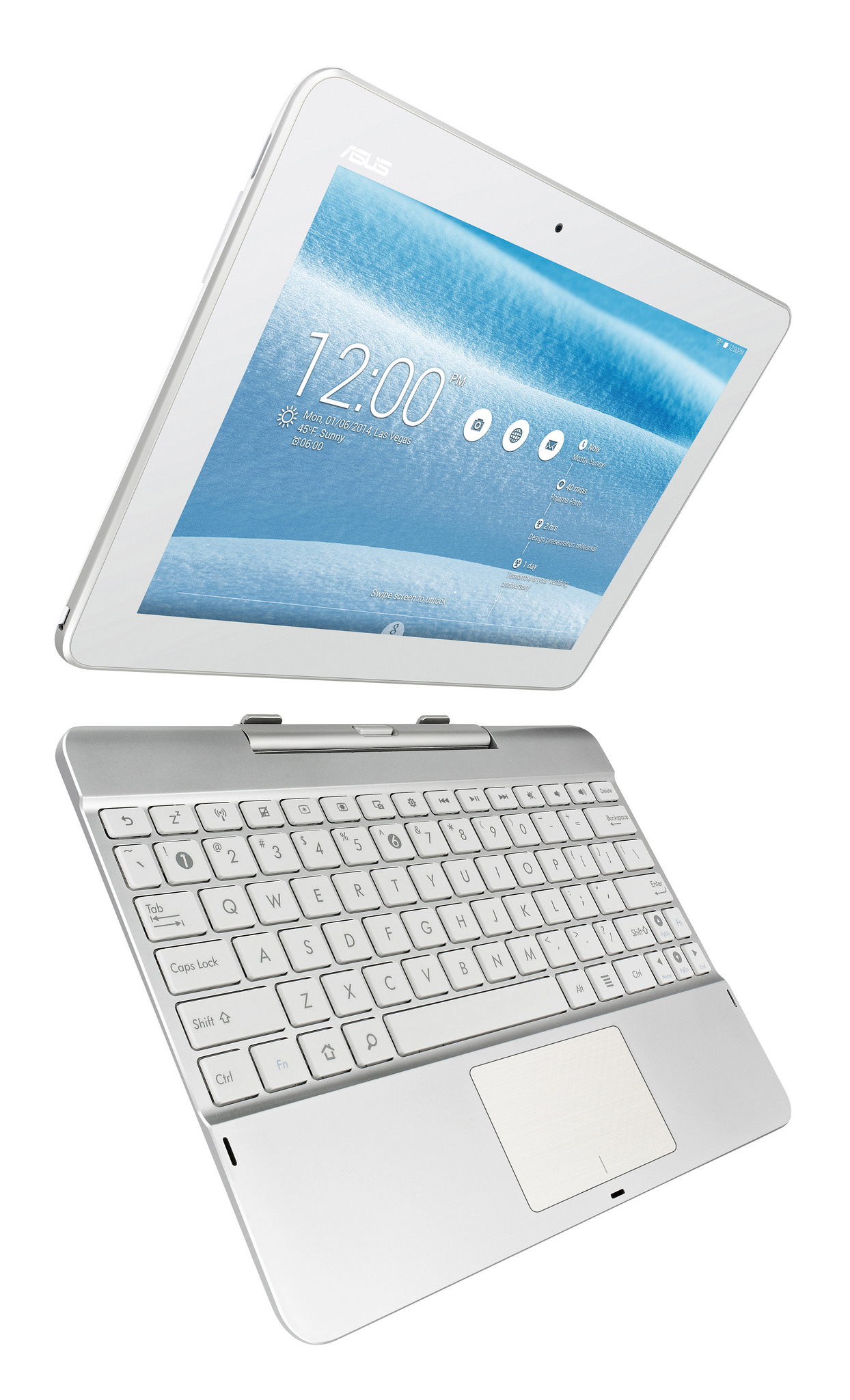

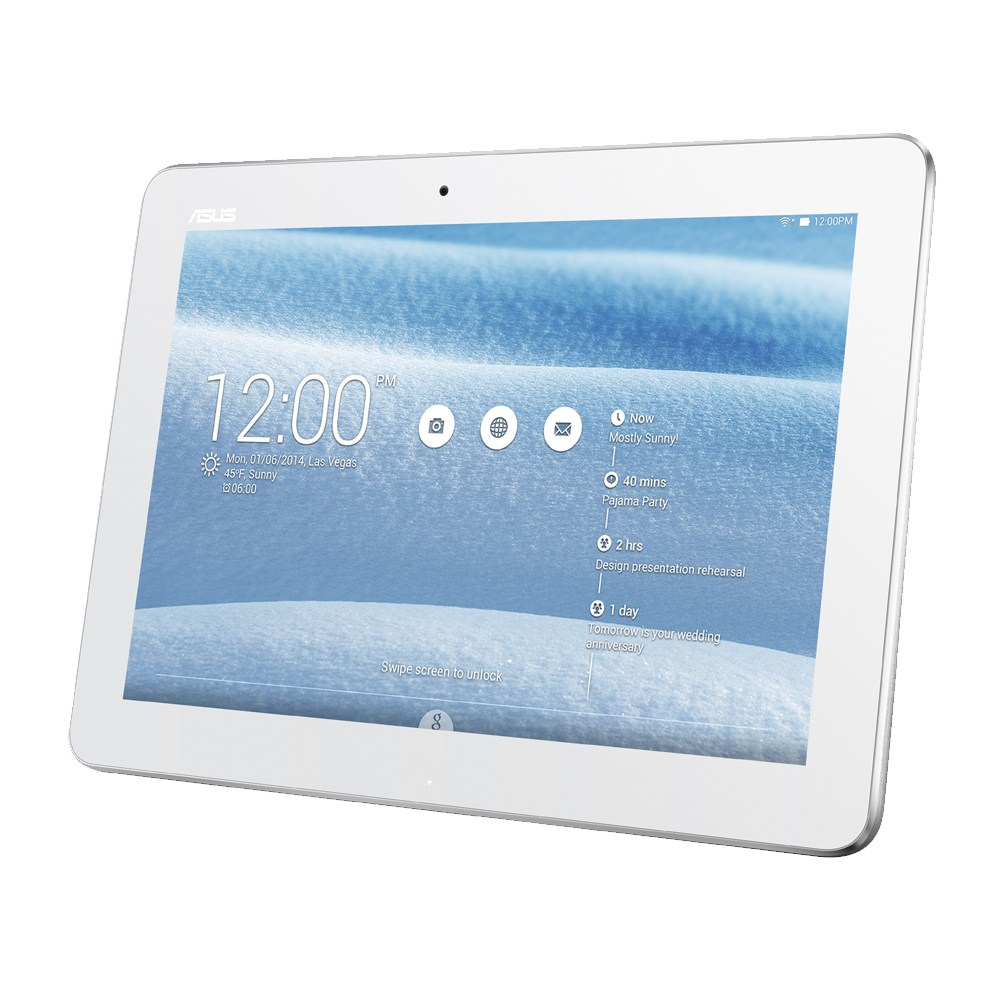

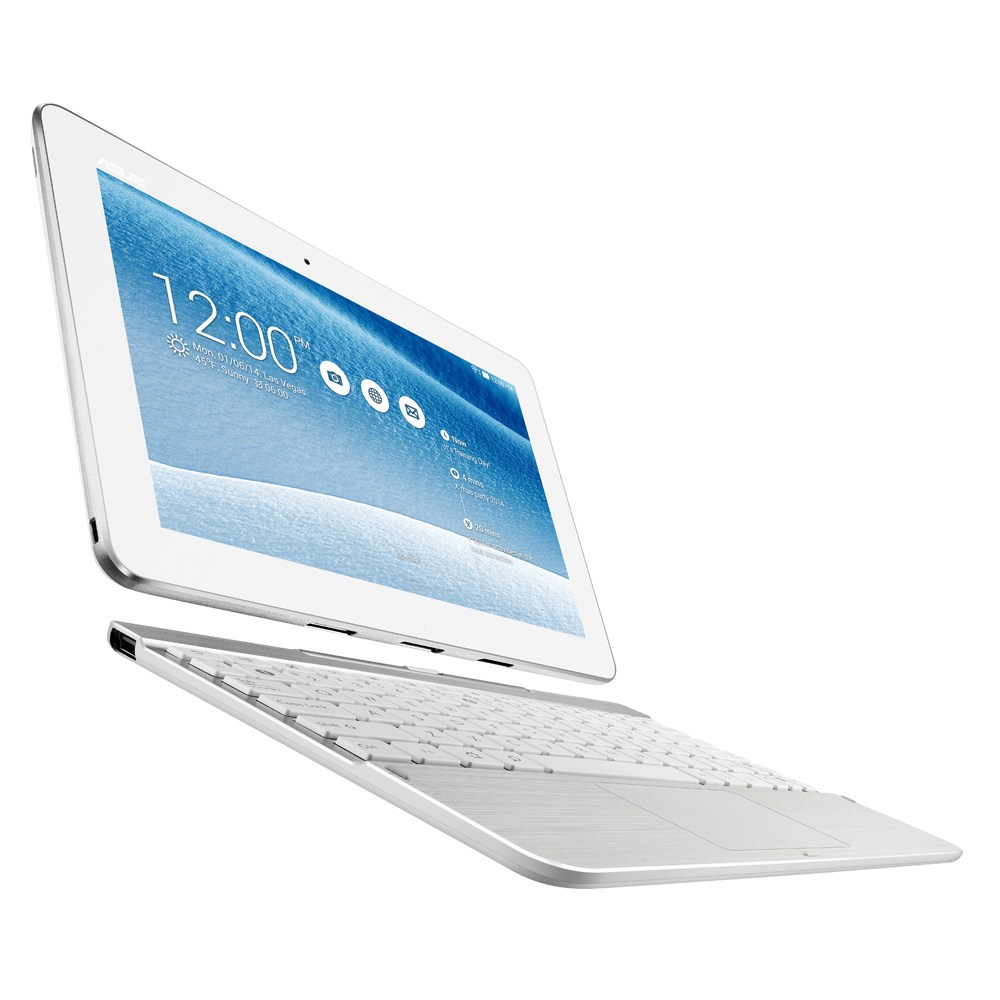

ASUS MeMO Pad 10 TF103CX-1B005A Intel Atom®

16 GB 25.6 cm (10.1") 1 GB Wi-Fi 4 (802.11n) Android White

Model TF103CX-1B005APart no. 90NK0102-M02190EAN 4716659850960

100 specifications Checked 2 days ago

Display25.6 cm (10.1")
Resolution1280 x 800 pixels
ProcessorIntel Atom®
Memory1 GB
Storage16 GB
Camera2 MP

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1280 x 800 pixels
Processor: Intel Atom®
Memory: 1 GB
Storage: 16 GB
Camera: 2 MP

Brand: ASUS
Category: Tablet
Model: TF103CX-1B005A
Part number: 90NK0102-M02190
EAN / UPC: 4716659850960
Also known as: ASUS MeMO Pad 10 TF103CX-1B005A Intel Atom® 16 GB 25.6 cm (10.1") 1 GB Wi-Fi 4 (802.11n) Android White

Specifications

100 specifications in 19 groups

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Panel type	IPS
Display resolution	1280 x 800 pixels
LED backlight	Yes
Touch technology	Multi-touch
Touchscreen type	Capacitive

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3745
Processor cores	4
Processor threads	4
Processor boost frequency	1.86 GHz
Processor frequency	1.33 GHz
Processor cache	2 MB
Processor cache type	L2
Conflict-Free processor	Yes
Graphics & IMC lithography	22 nm
Processor code	SR1SP
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	17 x 17 mm
Processor series	Intel Atom Z3700 Series
Scenario Design Power (SDP)	2 W
Stepping	C0
Thermal Design Power (TDP)	2 W
Tjunction	90 °C

Memory

Specification	Value
Internal memory	1 GB

Storage

Specification	Value
Internal storage capacity	16 GB
Storage media	Flash
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	64 GB

Graphics

Specification	Value
Graphics card family	Intel
Graphics card	HD Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Rear camera resolution (numeric)	2 MP
Video recording	Yes
Front camera	Yes
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Bluetooth	Yes
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
Micro-USB 2.0 ports quantity	1
Mobile High-Definition Link (MHL)	No
HDMI ports quantity	0
Microphone in	No
Headphone out	No
Headphone connectivity	3.5 mm
Combo headphone/mic port	Yes

Messaging

Specification	Value
E-mail	Yes

Design

Specification	Value
Form factor	Convertible (Detachable)
Product colour	White
Device type	Mobile tablet

Performance

Specification	Value
Position location	Yes
GLONASS	Yes
GPS (satellite)	Yes

Sensors

Specification	Value
Accelerometer	Yes
Electronic compass	Yes

Software

Specification	Value
Platform	Android
Operating system installed	Android
Operating system version	4.4

Processor special features

Specification	Value
Embedded options available	No
Intel 64	Yes
Intel Identity Protection Technology version	1.00
Intel Smart Connect Technology	No
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	19 Wh
Battery life (max)	9.5 h

Weight & dimensions

Specification	Value
Width	257.4 mm
Depth	9.9 mm
Height	178.4 mm
Weight	550 g

Packaging content

Specification	Value
AC adapter included	Yes
Keyboard included	No
Manual	Yes
Quick start guide	No
Warranty card	Yes

Other features

Specification	Value
64-bit computing	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Miracast	Yes
Processor socket	BGA 1380
Wi-Fi	Yes
Processor ARK ID	80270
