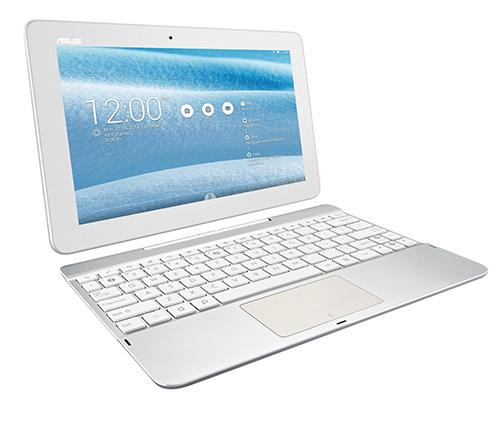

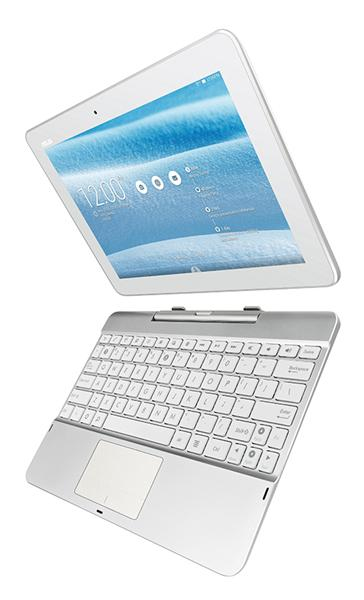

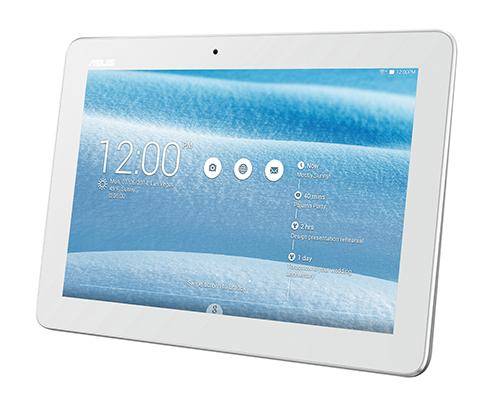

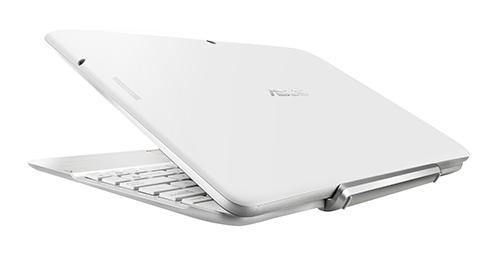

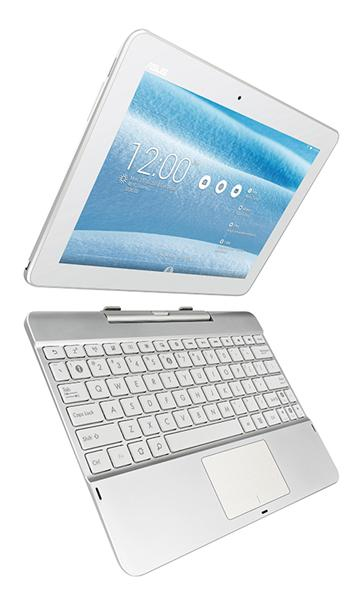

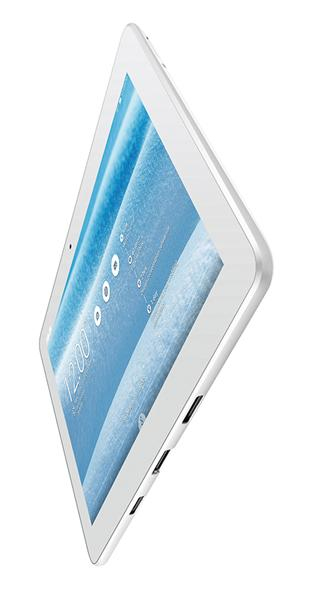

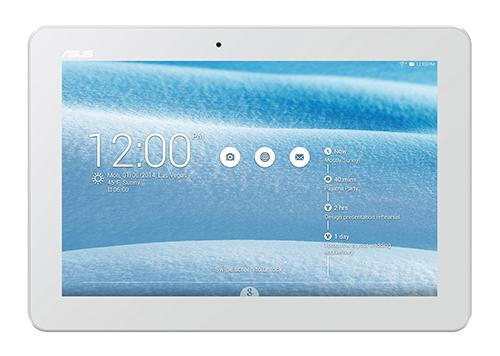

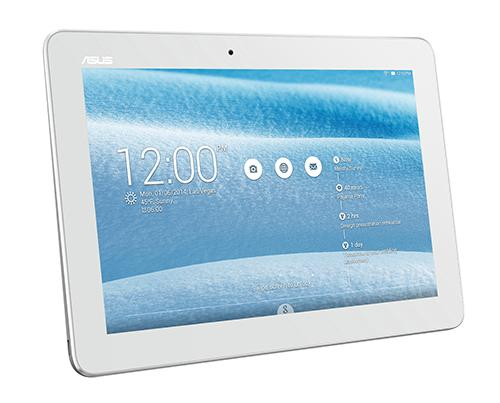

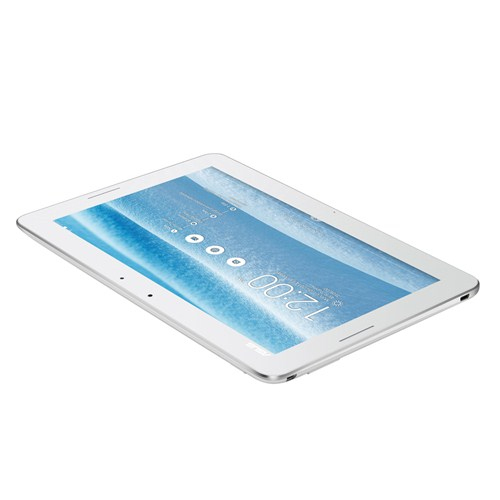

ASUS Transformer Pad TF103C-1B030A Intel Atom®

16 GB 25.6 cm (10.1") 1 GB Wi-Fi 4 (802.11n) Android White

Model TF103C-1B030APart no. 90NK0102-M00580EAN 4053162746961

102 specifications Checked 4 days ago

Display25.6 cm (10.1")
Resolution1280 x 800 pixels
ProcessorIntel Atom®
Memory1 GB
Storage16 GB
Camera2 MP

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1280 x 800 pixels
Processor: Intel Atom®
Memory: 1 GB
Storage: 16 GB
Camera: 2 MP

Brand: ASUS
Category: Tablet
Model: TF103C-1B030A
Part number: 90NK0102-M00580
EAN / UPC: 4053162746961, 4716659705598
Also known as: ASUS Transformer Pad TF103C-1B030A Intel Atom® 16 GB 25.6 cm (10.1") 1 GB Wi-Fi 4 (802.11n) Android White

Specifications

102 specifications in 17 groups

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Panel type	IPS
Display resolution	1280 x 800 pixels
LED backlight	Yes
Touch technology	Multi-touch
Touchscreen type	Capacitive

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3745
Processor cores	4
Processor threads	4
Processor boost frequency	1.86 GHz
Processor frequency	1.33 GHz
Processor cache	2 MB
Processor cache type	L2
Conflict-Free processor	Yes
Graphics & IMC lithography	22 nm
Processor code	SR1SP
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	17 x 17 mm
Processor series	Intel Atom Z3700 Series
Scenario Design Power (SDP)	2 W
Stepping	C0
Thermal Design Power (TDP)	2 W
Tjunction	90 °C

Memory

Specification	Value
Internal memory	1 GB
Memory clock speed	1066 MHz

Storage

Specification	Value
Internal storage capacity	16 GB
Storage media	Flash
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	64 GB

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Number of built-in speakers	2

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Rear camera resolution (numeric)	2 MP
Video recording	Yes
Front camera	Yes
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Bluetooth	Yes
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
Micro-USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	0
Microphone in	No
SmartCard slot	No
Headphone out	No
Combo headphone/mic port	Yes
DC-in jack	No

Design

Specification	Value
Form factor	Convertible (Detachable)
Product colour	White
Device type	Mobile tablet

Performance

Specification	Value
Position location	Yes
GLONASS	Yes
GPS (satellite)	Yes

Software

Specification	Value
Platform	Android
Operating system installed	Android
Operating system version	4.4

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Intel 64	Yes
Intel Identity Protection Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	19 Wh
Number of battery cells	1
Battery life (max)	9.5 h

Power

Specification	Value
AC adapter power	7 W

Weight & dimensions

Specification	Value
Width	257.4 mm
Depth	19.8 mm
Height	178.4 mm
Weight	1.1 kg

Packaging content

Specification	Value
AC adapter included	Yes
Keyboard included	Yes
Cables included	AC, USB
Docking station included	Yes
Manual	Yes
Warranty card	Yes

Other features

Specification	Value
CardBus PCMCIA slot type	No
DVI port	No
Docking connector	Yes
ExpressCard slot	No
Processor socket	BGA 1380
Total storage capacity	16 GB
Wi-Fi	Yes
Processor ARK ID	80270
