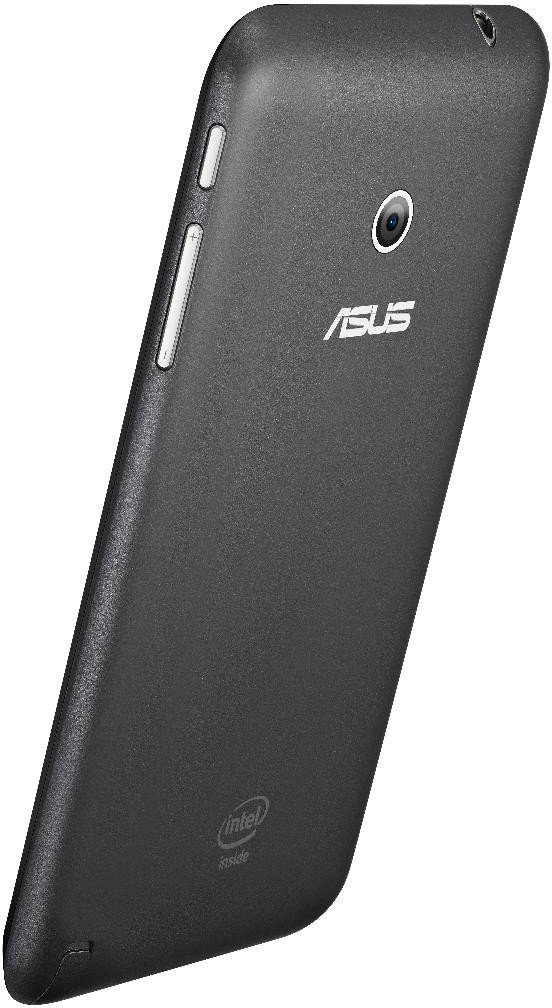

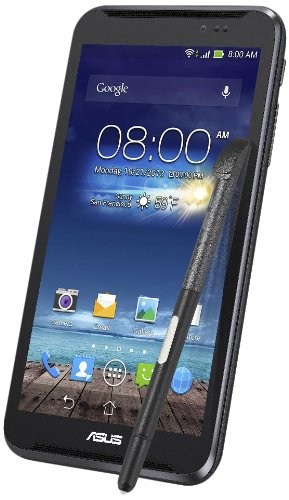

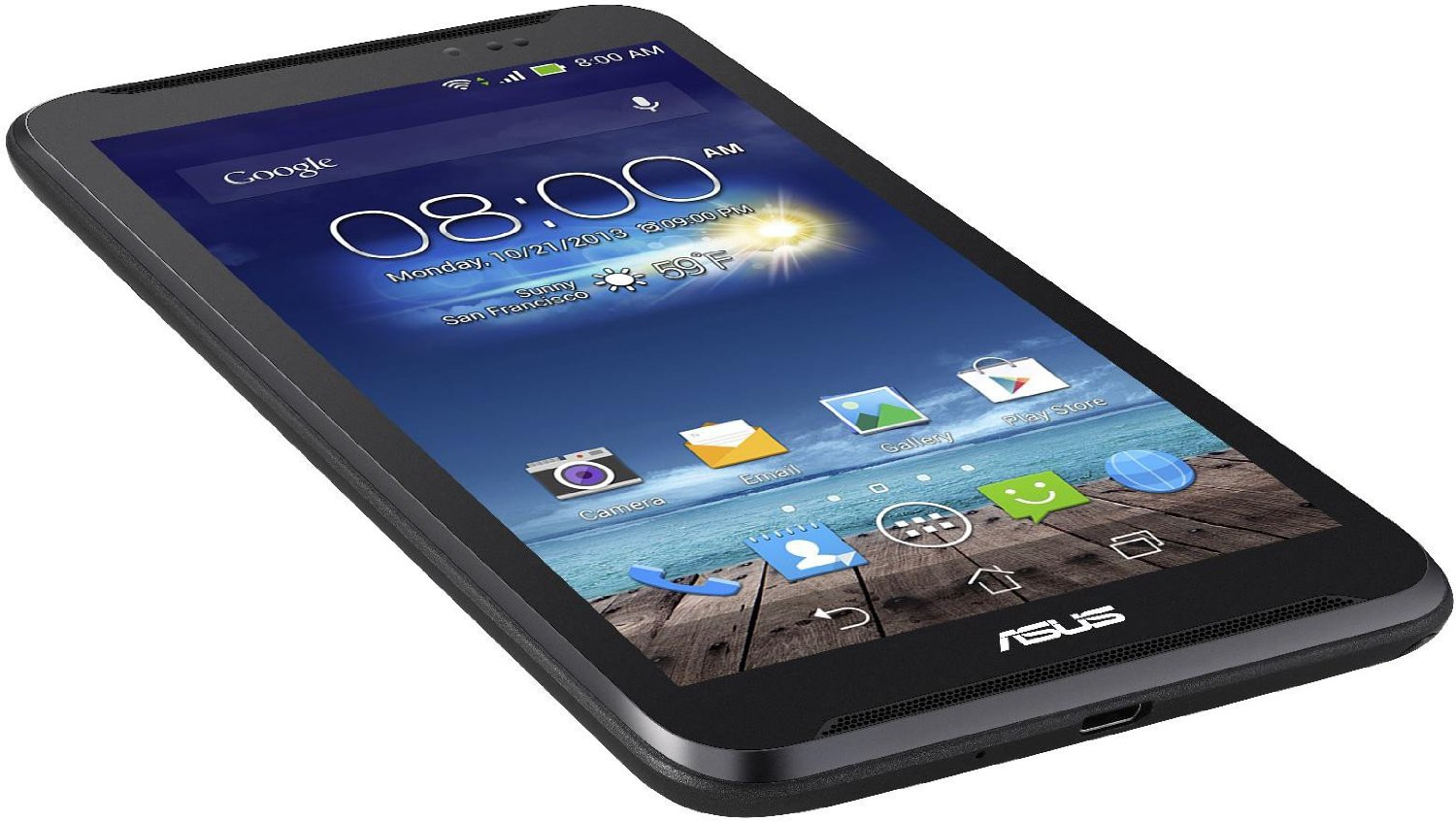

ASUS Fonepad Note 6 ME560CG-1B030A tablet

3G Intel Atom® 16 GB 15.2 cm (6") 2 GB Wi-Fi 4 (802.11n) Android Black

Model ME560CG-1B030AEAN 4716659566359

97 specifications Checked 3 days ago

Display15.2 cm (6")
Resolution1920 x 1080 pixels
ProcessorIntel Atom®
Memory2 GB
Storage16 GB
Camera8 MP

See all specifications

Overview

Display: 15.2 cm (6")
Resolution: 1920 x 1080 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 16 GB
Camera: 8 MP

Brand: ASUS
Category: Tablet
Model: ME560CG-1B030A
Part number: ME560CG-1B030A
EAN / UPC: 4716659566359
Also known as: ASUS Fonepad Note 6 ME560CG-1B030A tablet 3G Intel Atom® 16 GB 15.2 cm (6") 2 GB Wi-Fi 4 (802.11n) Android Black

Specifications

97 specifications in 18 groups

Display

Specification	Value
Display diagonal	15.2 cm (6")
Panel type	IPS
Display resolution	1920 x 1080 pixels
LED backlight	Yes
Touch technology	Multi-touch
Touchscreen type	Capacitive

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z2580
Processor cores	2
Processor threads	4
Processor boost frequency	2 GHz
Processor cache	1 MB
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Graphics & IMC lithography	32 nm
Processor code	SR146
Processor lithography	32 nm
Processor operating modes	32-bit
Processor package size	14 x 14 mm
Stepping	B1
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Tjunction	90 °C
UART	Yes

Memory

Specification	Value
Internal memory	2 GB

Storage

Specification	Value
Internal storage capacity	16 GB
Storage media	Flash
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SDHC
Maximum memory card size	64 GB

Graphics

Specification	Value
Graphics card family	Intel

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Number of built-in speakers	2
Audio system	SonicMaster

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Rear camera resolution (numeric)	8 MP
Auto focus	Yes
Video recording	Yes
Front camera	Yes
Front camera resolution (numeric)	1.2 MP

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	3G
3G standards	HSPA+, WCDMA
Bluetooth	Yes
Bluetooth version	3.0+HS
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
Micro-USB 2.0 ports quantity	1
HDMI ports quantity	0
Microphone in	No
Headphone out	No
Combo headphone/mic port	Yes

Design

Specification	Value
Form factor	Slate
Product colour	Black
Device type	Mobile tablet

Performance

Specification	Value
Position location	Yes
Assisted GPS (A-GPS)	Yes
GLONASS	Yes
GPS (satellite)	Yes

Sensors

Specification	Value
Ambient light sensor	Yes
Gyroscope	Yes
Electronic compass	Yes

Software

Specification	Value
Platform	Android
Operating system installed	Android
Operating system version	4.2

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Idle States	Yes
Intel Enhanced Halt State	Yes
Intel Smart Idle Technology	Yes
Intel Smart Idle Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	32 bit
Physical Address Extension (PAE)	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	15 Wh
Battery life (max)	7 h
Standby time (3G) (max)	334 h

Weight & dimensions

Specification	Value
Width	88.8 mm
Depth	10.3 mm
Height	164.8 mm
Weight	210 g

Packaging content

Specification	Value
Keyboard included	No

Other features

Specification	Value
Standby time (2G) (max)	490 h
2G standards	Edge, GSM
Processor socket	FC-MB4760
Talk time (2G) (max)	23 h
Wi-Fi	Yes
Processor ARK ID	70100
