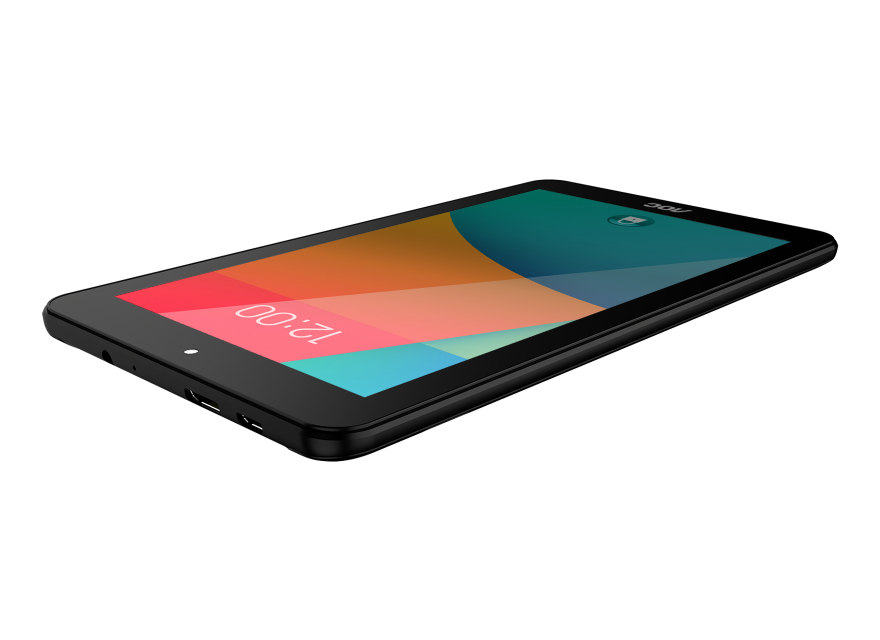

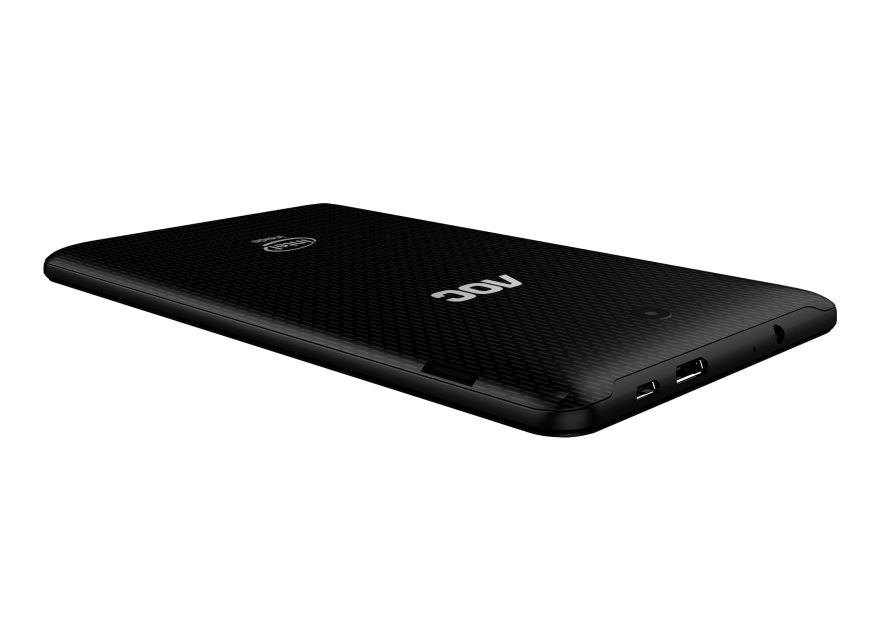

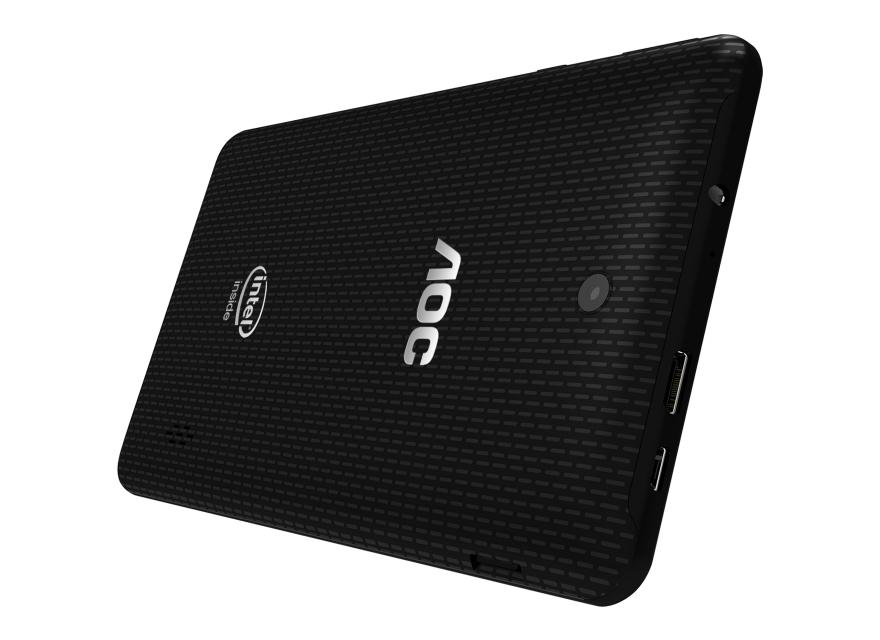

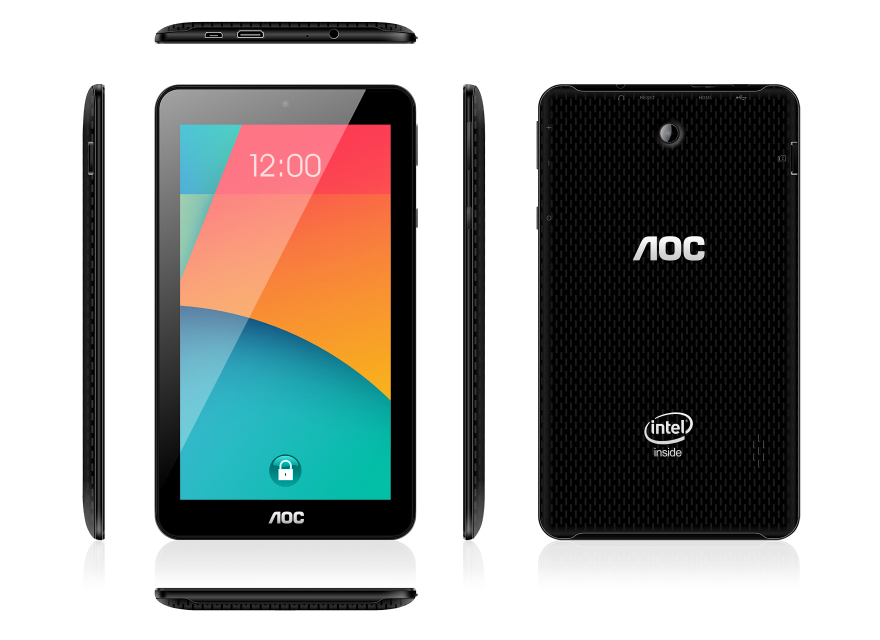

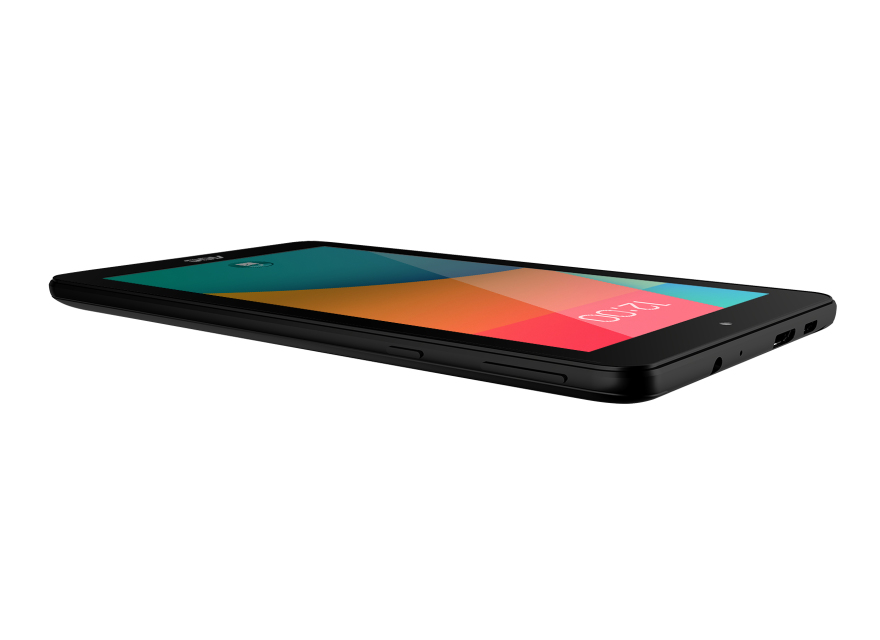

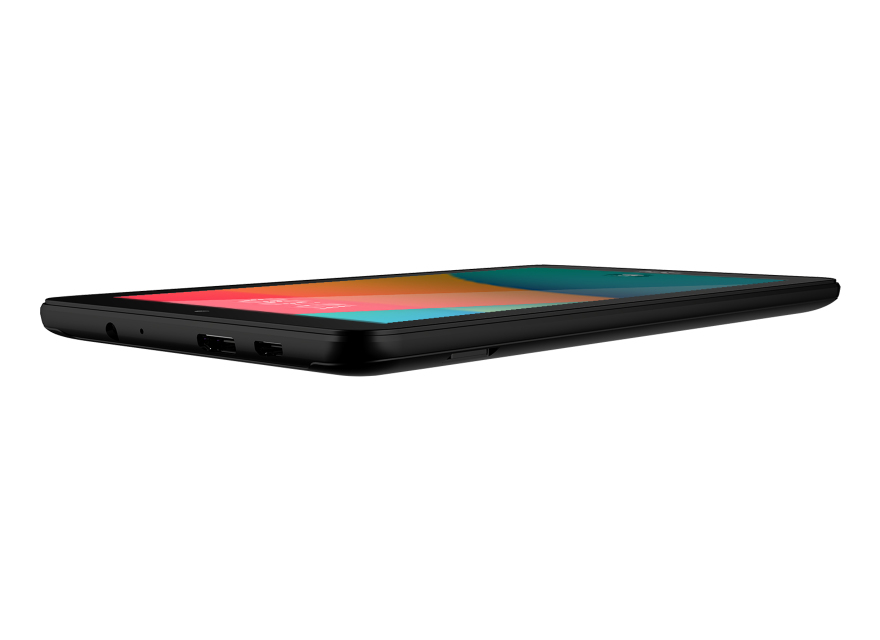

AOC U703 tablet Intel Atom®

8 GB 17.8 cm (7") 1 GB Wi-Fi 4 (802.11n) Android Black

Model U703EAN 685417084081

86 specifications Checked 2 days ago

Display17.8 cm (7")
Resolution1024 x 600 pixels
ProcessorIntel Atom®
Memory1 GB
Storage8 GB
Camera2 MP

See all specifications

Overview

Display: 17.8 cm (7")
Resolution: 1024 x 600 pixels
Processor: Intel Atom®
Memory: 1 GB
Storage: 8 GB
Camera: 2 MP

Brand: AOC
Category: Tablet
Model: U703
Part number: U703
EAN / UPC: 685417084081
Also known as: AOC U703 tablet Intel Atom® 8 GB 17.8 cm (7") 1 GB Wi-Fi 4 (802.11n) Android Black

Specifications

86 specifications in 17 groups

Display

Specification	Value
Display diagonal	17.8 cm (7")
Panel type	IPS
Display resolution	1024 x 600 pixels
Touch technology	Multi-touch
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3735G
Processor cores	4
Processor threads	4
Processor boost frequency	1.83 GHz
Processor frequency	1.33 GHz
Processor cache	2 MB
Processor cache type	L2
Conflict-Free processor	Yes
Graphics & IMC lithography	22 nm
Processor code	SR1UD
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	17 x 17 mm
Processor series	Intel Atom Z3700 Series
Scenario Design Power (SDP)	2.2 W
Stepping	C0

Memory

Specification	Value
Internal memory	1 GB

Storage

Specification	Value
Internal storage capacity	8 GB
Storage media	Flash
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Graphics

Specification	Value
Graphics card family	Intel
Graphics card	HD Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Number of built-in speakers	1

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Rear camera resolution (numeric)	2 MP
Front camera	Yes
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Bluetooth	Yes
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
HDMI ports quantity	0
Mini HDMI ports quantity	1
Headphone out	Yes

Design

Specification	Value
Form factor	Slate
Product colour	Black

Software

Specification	Value
Platform	Android
Operating system installed	Android
Operating system version	4.4

Processor special features

Specification	Value
Embedded options available	No
Intel 64	Yes
Intel Smart Connect Technology	No
Intel Virtualization Technology (VT-x)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No

Battery

Specification	Value
Battery capacity	2500 mAh
Battery voltage	3.7 V
Continuous video playback time (max)	3.5 h
Continuous audio playback time	10 h

Weight & dimensions

Specification	Value
Width	188 mm
Depth	107.6 mm
Height	8.8 mm
Weight	275 g
Package width	218 mm
Package depth	14 mm
Package height	51 mm
Package weight	620 g

Packaging content

Specification	Value
AC adapter included	Yes
Keyboard included	No
Manual	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-4 - 40 °C

Other features

Specification	Value
Processor socket	BGA 592
Processor ARK ID	80275
