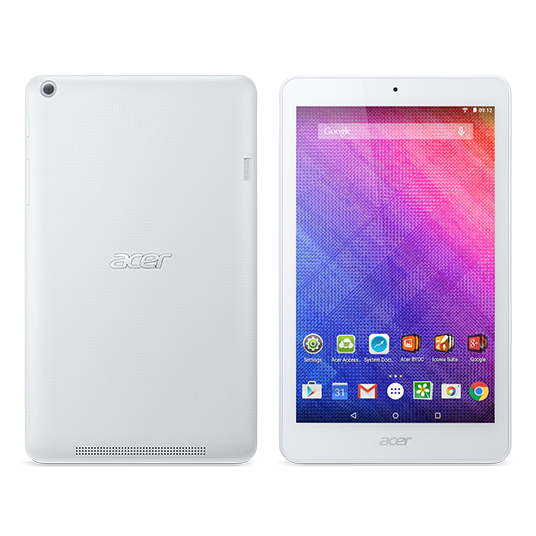

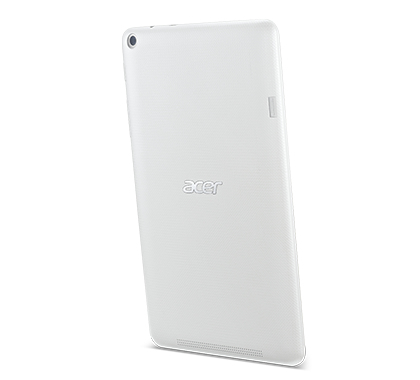

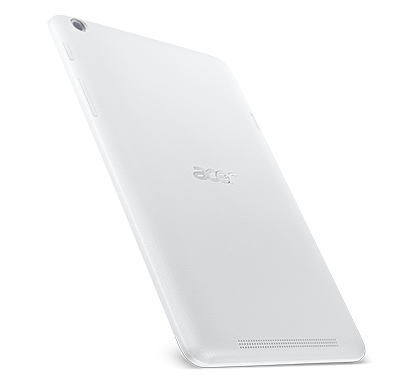

Acer Iconia B1-820-17Z5 Intel Atom®

16 GB 20.3 cm (8") 1 GB Wi-Fi 4 (802.11n) Android 5.0 White

Model B1-820-17Z5Part no. NT.L9EEE.006

76 specifications Checked 3 days ago

Display20.3 cm (8")
Resolution1280 x 800 pixels
ProcessorIntel Atom®
Memory1 GB
Storage16 GB
Camera5 MP

See all specifications

Overview

Display: 20.3 cm (8")
Resolution: 1280 x 800 pixels
Processor: Intel Atom®
Memory: 1 GB
Storage: 16 GB
Camera: 5 MP

Brand: Acer
Category: Tablet
Model: B1-820-17Z5
Part number: NT.L9EEE.006
Also known as: Acer Iconia B1-820-17Z5 Intel Atom® 16 GB 20.3 cm (8") 1 GB Wi-Fi 4 (802.11n) Android 5.0 White

Specifications

76 specifications in 20 groups

Display

Specification	Value
Display diagonal	20.3 cm (8")
Panel type	IPS
Display resolution	1280 x 800 pixels
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3735G
Processor cores	4
Processor threads	4
Processor boost frequency	1.83 GHz
Processor frequency	1.33 GHz
Processor cache	2 MB
Processor cache type	L2
Conflict-Free processor	Yes
Graphics & IMC lithography	22 nm
Processor code	SR1UD
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	17 x 17 mm
Processor series	Intel Atom Z3700 Series
Scenario Design Power (SDP)	2.2 W
Stepping	C0

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR3L-SDRAM

Storage

Specification	Value
Internal storage capacity	16 GB
Storage media	Flash
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC

Graphics

Specification	Value
Graphics card	HD Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes

Camera

Specification	Value
Rear camera type	Single camera
Rear camera	Yes
Rear camera resolution (numeric)	5 MP
Auto focus	Yes
Front camera	Yes
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Bluetooth	Yes
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ports & interfaces

Specification	Value
Micro-USB 2.0 ports quantity	1
HDMI ports quantity	0
Microphone in	No
Headphone out	Yes
Combo headphone/mic port	Yes

Design

Specification	Value
Form factor	Slate
Product colour	White
Device type	Mobile tablet

Performance

Specification	Value
Position location	Yes
GPS (satellite)	Yes

Sensors

Specification	Value
Accelerometer	Yes

Software

Specification	Value
Platform	Android
Operating system installed	Android 5.0

Processor special features

Specification	Value
Embedded options available	No
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Turbo Boost Technology	No

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	4420 mAh
Number of battery cells	1

Power

Specification	Value
AC adapter power	7 W

Weight & dimensions

Specification	Value
Width	127.7 mm
Depth	9.5 mm
Height	213.9 mm
Weight	360 g

Packaging content

Specification	Value
AC adapter included	Yes
Keyboard included	No

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	WEEE

Other features

Specification	Value
On-board graphics card	Yes
Processor socket	BGA 592
Processor ARK ID	80275
